Specifications
1.MF 1k reader and writer2.Support ISO14443A
3.USB/RS232 interface
3.Provide SDK,demo software,user manual.Sample code
13.56Mhz ISO14443A reader and writer
Product description
CF-RH320 series desktop readers are smart modules without touching based on international standard agreement ISO14443A/B,ISO15693
CF-RH320 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC by means of interface.
CF-RH320 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation
Model |
standard |
interface |
color |
CF-RH321 |
IS014443A |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH322 |
IS014443A/B |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH323 |
ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
CF-RH324 |
ISO/IEC14443A/B,ISO15693 |
U(USB)/R(RS232) |
B(black)/W(white) |
Capability specifications
Name |
HF Reader&write |
Dimension |
104x68x10mm |
Standard |
ISO 14443A |
Support |
MF S70; MF UltraLight; MF S50 |
Frequency |
13.56MHz |
speed |
106kbit/s |
Baud Rate |
9600 bit/s |
Power Supply |
+5V DC |
Consumed Current |
< 80Ma |
Operating Distance |
50--70mm |
Interface |
USB/RS232 |
Status Indication |
1pcs LED;1pcd buzzer |
Service Temperature |
-10°C ~ +70°C |
Store Temperature |
-20°C ~ +80°C |
There are other HF USB Desktop rfid reader writer ,please check detailed information from this link:
/product.aspx?cid=246

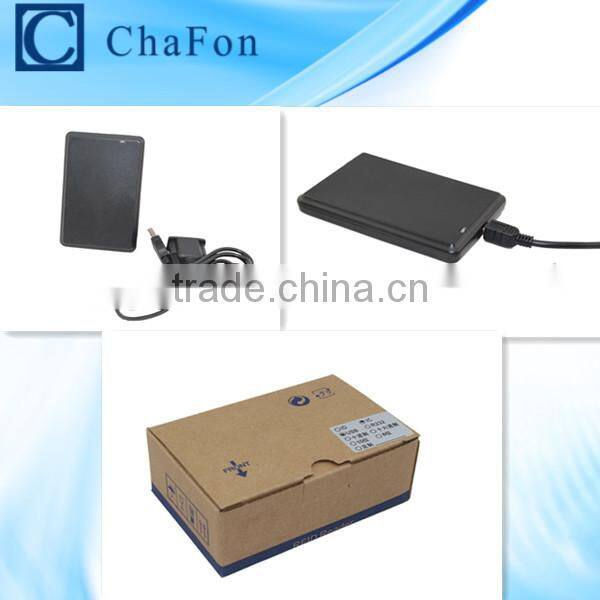

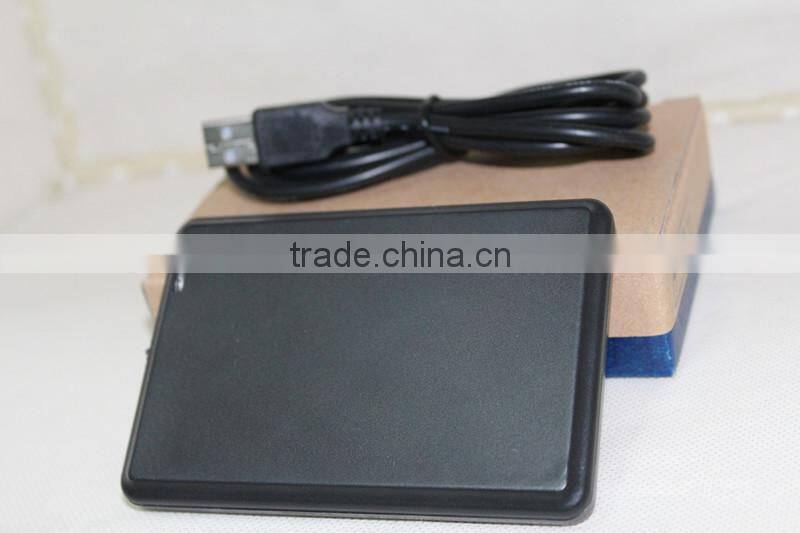

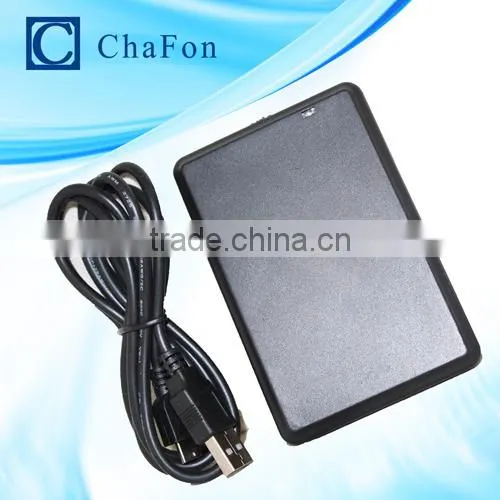

Product Picture:
