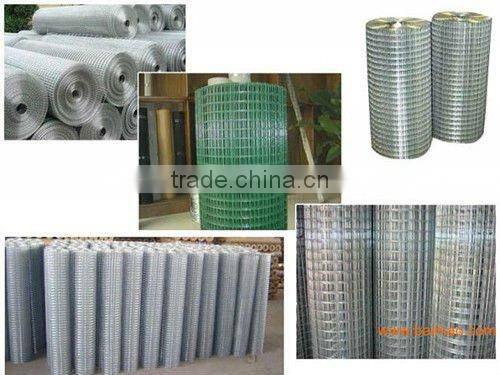

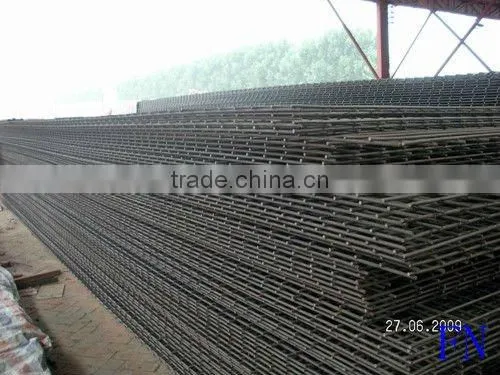

Welded Mesh Fabric/Welded Wire Mesh

Name: Welded Mesh Fabric/Welded Wire Mesh
Brand: Xinboyuan
SKU: 140542148
Availability: InStock

US$ 5 - 28 MOQ: 100 Rolls

Key Specifications

Place of Origin:

Hebei, China

Material:

Stainless Steel Wire

Type:

Welded Mesh

Anping Xinboyuan Wire Mesh Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Material Stainless Steel Wire

Type Welded Mesh

Technique Welded Mesh

Model Number xby02332

Brand Name Xinboyuan

Specifications

Welded Mesh Fabric/Welded wire mesh
petitive price 2.CE and ISO certificates

Welded Mesh Fabric/Welded wire mesh

Specification:

Square Mesh Fabric Sheets

Reference Number	Main Wire	Cross Wire	Wire Diameter	Mass Per Square Meter
100	200	200	4 - 4 mm	1.00 kg
156	100	100	3.5 - 3.5 mm	1.56 kg
193	200	200	5.6 - 5.6 mm	1.93 kg
200	100	100	4 - 4 mm	2.00 kg
245	200	200	6.3 - 6.3 mm	2.45 kg
311	200	200	7.1 - 7.1 mm	3.11 kg
395	200	200	8 - 8 mm	3.95 kg
500	200	200	9 - 9 mm	5.00 kg
647	200	200	10 - 10 mm	6.47 kg
746	200	200	11 - 11 mm	7.46 kg
888	200	200	12 - 12 mm	8.88 kg

Square Mesh Fabric Sheets - 60m X 2.4m Rolls

Reference Number	Main Wire	Cross Wire	Wire Diameter	Mass Per Square Meter
100	200	200	4 - 4 mm	1.00 kg
156	100	100	3.55 - 3.55 mm	1.56 kg
193	200	200	5.6 - 5.6 mm	1.93 kg
200	100	100	4 - 4 mm	2.00 kg
245	200	200	6.3 - 6.3 mm	2.45 kg

Design Mesh Fabric - Structural

Reference Number	Main Wire	Cross Wire	Wire Diameter	Mass Per Square Meter
289	100	200	5.6 - 5.6 mm	2.89 kg
341	100	200	6.3 - 5.6 mm	3.41 kg
433	100	200	7.1 - 6.3 mm	4.33 kg
517	100	200	8 - 6.3 mm	5.17 kg
665	100	200	9 - 7.1 mm	6.55 kg
772	100	200	10 - 7.1 mm	7.72 kg
943	100	200	11 - 8 mm	9.43 kg
1085	100	200	12 - 8 mm	10.85 kg
