Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > Concrete Reinforcement Wire Mesh

Concrete Reinforcement Wire Mesh

Name: Concrete Reinforcement Wire Mesh
Brand: XINBOYUAN
SKU: 140542152
Availability: InStock

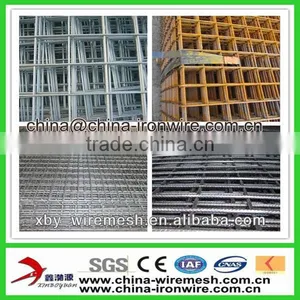

Concrete Reinforcement Wire Mesh thumbnail-1

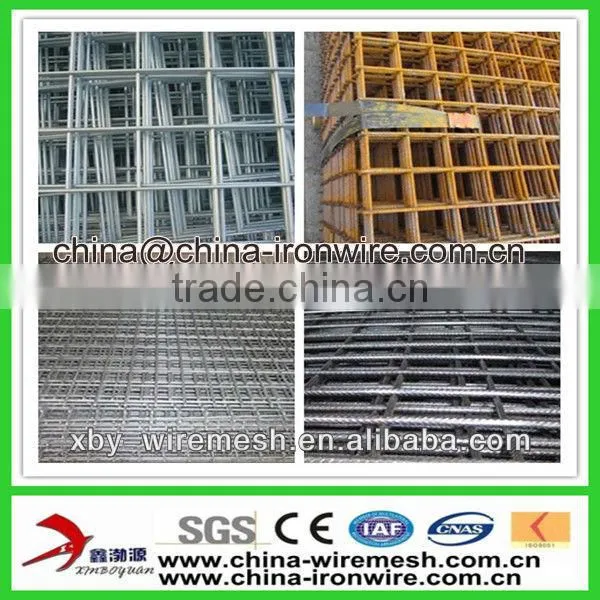

Concrete Reinforcement Wire Mesh photo-1

US$ 5 - 50 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Material:

Other, Galvanized Steel Wire, steel

Type:

Reinforced Mesh

Contact Supplier Request Quote Chat Now

Anping Xinboyuan Wire Mesh Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Material Other, Galvanized Steel Wire, steel

Type Reinforced Mesh

Application Other, Concrete Mesh

Weave Style Plain Weave

Wire Diameter 2.0-6.0mm

Technique Welded Mesh

Model Number XBY-mesh111

Brand Name XINBOYUAN

Specifications

1.Material: High quality carbon steel
2.Wire Diameter: 2.0-6.0mm
3.Width: 0.5-3m
4.Length: 2-6m

Detail description:

1.wire mesh concrete made of low carbon steel wire rod, which undergo a cold-rolling and straightening process and arranged vertically in proper spacing in the welding machine at the line wires and cross wires, joint together by mean of electric resistance spot-welding, also directly welded with hot rolled wire rods

The reinforcing mesh has following merits:Great hardness, good elasticity, uniformity spacing high welding strength, hard to deform by trample

2. Properties of products

Iterm	HRB-335Hot-rolled	HRB-335Hot-rolled	HRB-550cold-rolled
Tensilestrength (MPA)	.>490	.>570	>550
Yield strength (MPA)	>335	>400	>550
Elongation %	>16	>14	>8
Shearing force (N)	>150 x AS	.150 XAS	>150 XAS

3.Technical standard:

Cold rolled ribbed steel bar: CRB 550

Hot rolled ribbed steel bar: HRB 400

We not only produce as per the national standard of welded mesh fabric for reinforcement of concrete but also the products according to the AS/NZS 4671:2001( Australian and New Zealand standard), BS4483 (English standard), DIN488 (Germany standard),SIA 16211 AND NFA35-016 France and etc.

4.The specification of Welded steel wire mesh concrete

Wire diameter:4mm-16mm

Space center of neighbor steel bar

Vertical : 100mm,150mm,200mm,300mm

Horizontal:100-400mm

Width:0.5m-3m

Lengt:2m-6m

Steel bar welded grating is well received and popularly used as a kind of new, efficient and excellent quality concrete structure steel materials in various industrial and civil buildings. It is mainly used in making of floors, ceilings, wall body, concrete road, bridge surface, airport, tunnel lining, concrete piping, etc.

Mesh
Inch	mm	Wire Gauge mm
1"X1/2"	25X12.5	1.2--3
1"X1"	25X25	2.0--3
2"X1"	25X50	2.0--4
2"X2"	50X50	2.0--4
3"X2"	50X75	2.0--5
3"X3"	75X75	2.0--5
4"X2"	50X100	2.0--6
4"X4"	100X100	2.0--6
5"X5"	125X125	2.0--6
6"X6"	150X150	2.0--6

China Anping Xinboyuan Wire Mesh Products Co.,Ltd is factory who specilize in manufacturing all kinds of wire mesh,wire and wire nails from the year of 1990.

If you are interested in our products, just feel free to contact us. Hope we will establish long terms business cooperation with your esteemed company in the near future and welcome to visit our factory!
