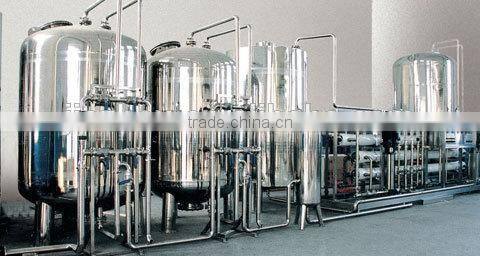

Mineral Water Purification Equipment/system/device

 Water Treatment

We supply complete bottled water production line, juice production line, carbonated drnks production line (It is a plastic bottle packing line). we have 1000-2000bottles/hour, 3000bottles/hour, 5000bottles/hour, etc.what is your bottle size? which capacity woul you like?

Please mail us by here, I will send quotation with more detail pictures to your email. thank you!

water purify system

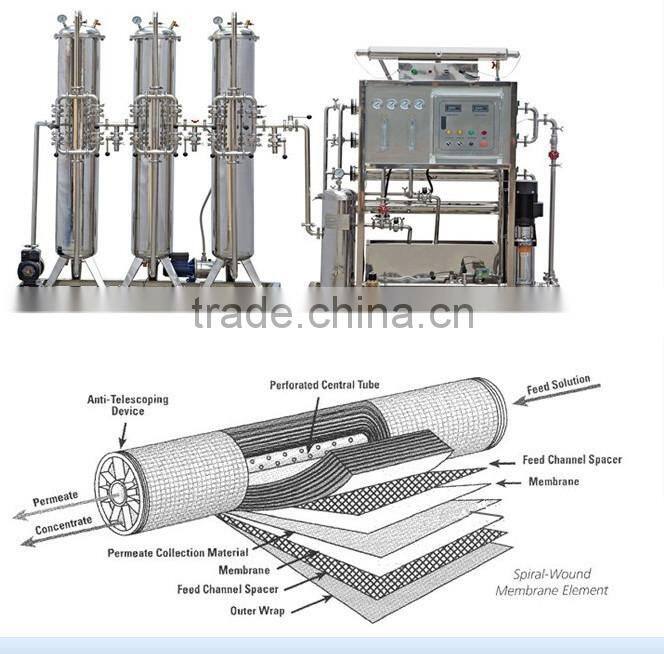

How the System Works A semi permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane passes water easily but also prevents many other contaminants from passing by trapping them. Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. The water in the less concentrated solution tries to dilute the more concentrated solution. Water will pass through the membrane from the lower concentration side to the greater concentration side. The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.

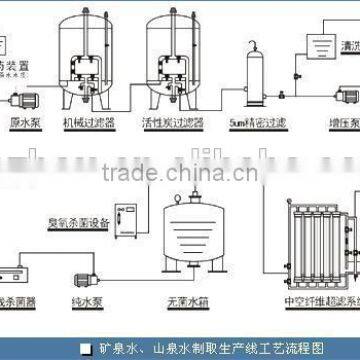

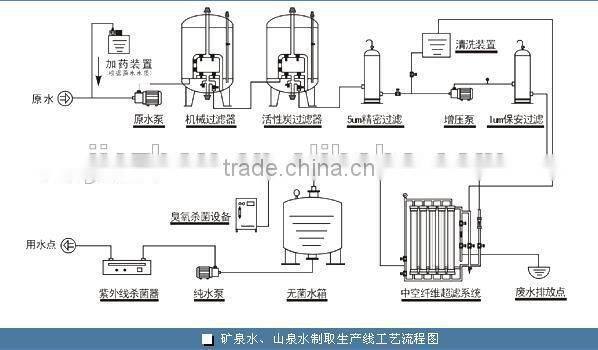

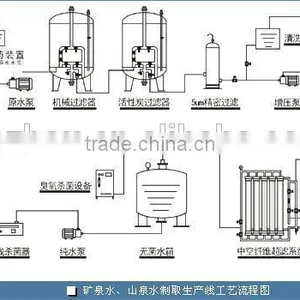

Technical route and flow diagram instructions

The technical route is as following. Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant dosing-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank

Features Materials of Construction

Skid Frame: SS304 Membrane Elements:HYDRANAUTICS CAP3-8040 Membrane Housings: SS304 Low pressure piping: SS304 High pressure piping: SS304

FACTORY&WORKSHOP

OFFICE

CERTIFICATES

TRANSPORTATION&PACKAGING
