Pure Water Treatment

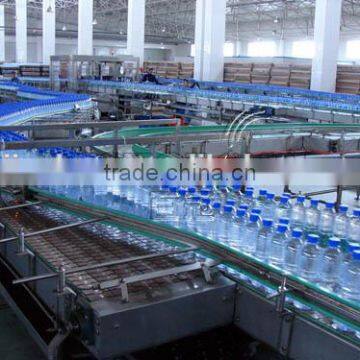

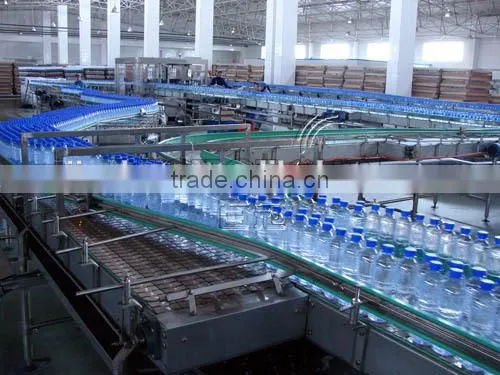

We supply complete bottled water production line, juice production line, carbonated drnks production line (It is a plastic bottle packing line). we have 1000-2000bottles/hour, 3000bottles/hour, 5000bottles/hour, etc.what is your bottle size? which capacity woul you like?
Please mail us by here, I will send quotation with more detail pictures to your email. thank you!
Water Reverse Omomis/water purify system

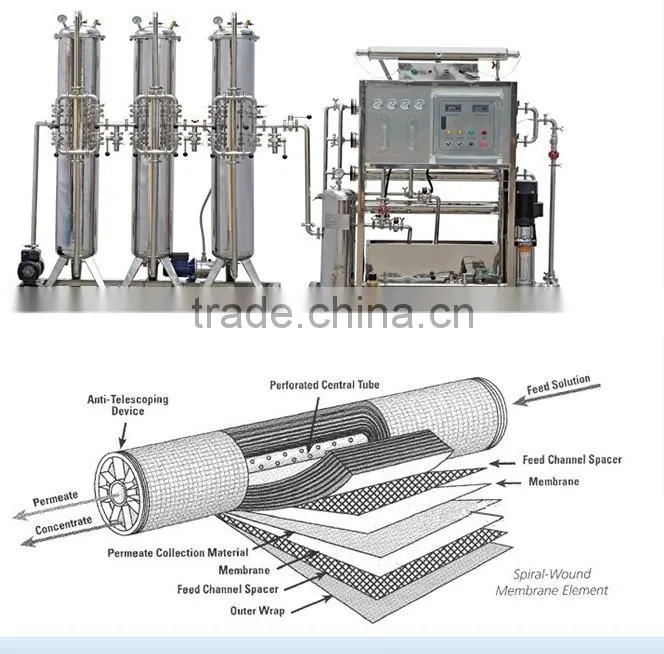

How the Reverse Osmosis System Works A semi permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane passes water easily but also prevents many other contaminants from passing by trapping them. Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. The water in the less concentrated solution tries to dilute the more concentrated solution. Water will pass through the membrane from the lower concentration side to the greater concentration side. The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.

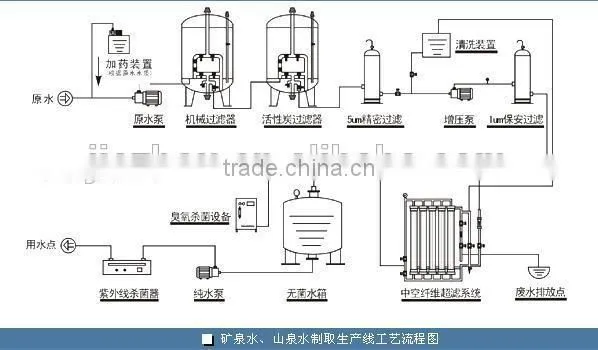

Technical route and flow diagram instructions
The technical route is as following. Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant dosing-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank
Features Materials of Construction
Skid Frame: SS304 Membrane Elements:HYDRANAUTICS CAP3-8040 Membrane Housings: SS304 Low pressure piping: SS304 High pressure piping: SS304
Pump and Motor Pump:
304SS vertical multi-stage centrifugal Motor: TEFC, 380/460 VAC, 3-phase, 50/60 Hz.
Standard Features
8" x 40" High rejection membrane elements 5-micron sediment pre-filter housing Automatic inlet solenoid valve PLC control Product water conductivity monitor Operating pressure gauges Product and concentrate flow meters Concentrate and recycle flow control valves Low inlet pressure switch with shutdown alarm Auto/Manual wash
Optional Equipment Available
Atmospheric storage tanks with level control and repressurization pump Pressurized storage vessels UV Ozone generator Membrane clean-in-place (CIP) systems Pretreatment chemical injection systems
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
FACTORY&WORKSHOP
OFFICE
CERTIFICATES
TRANSPORTATION&PACKAGING
Our Service and Working Process
Pre- sales Phase: we have sales representative to communicate with our client to understand client needs and based on our experience, capacity to initiate the draft proposal for our client review. With the proposal review, analysis and improvement, we will finalize our proposal with our clients.
Production Phase: We have very strong filing machine business experience and downstream/upstream partnership. Under the criteria of customized quality, our good production scheduling will make sure our client filling machine will be delivered in time.
After-sales:We will documentation our client information for each sale and will continue effective communication even after deal. We will review the whole process to enhance our experience and make sure we can serve our client better and better.
Main market:
North America/South America/Southeast Asia/Africa/Mid East/South Asia
Main customers:
Mexico/ Brazil/ USA/ Egypt/Morocco/ Colombia/ Vietnam/Venezuela
