Automatic 4 In 1 PET Bottle Hot Filling Machine For Mango Or Apple
RCGF18186 juice drink filling machine is mainly used for juice, yoghourt beverage and milk filling. It belongs to Rotary type, integrating bottle washing, filling and sealing.
1. The main frame machine of hot juice filling equipment adopts the automatic control technology of PLC and transducer with high degree of automatism.
2. The dynamical system of hot juice filling equipment is connected by transmission shaft with stable performance.
Bottle Washing: The bottles are first picked up using an automatic robot arm, which tilts the bottle on top of a rinsing spray, which rinses the bottles in three stages. The bottles are cleaned with clean water.
Filling: After rinsing the bottles are transferred by neck to the filling station. Here the bottles are filled accurately by filling valves. The filling valves are very accurate and give equal filling to every bottle. The special feature in the system is that no bottle no wash and no bottle no fill.
Sealing: After filling, bottles automatically move for the capping stage where the caps are released from the cap sorting machine on the bottle. The caps are sealed automatically using screw capping heads.
The entire system is enclosed in a stainless steel / Glass outer casing. After the capping stage, the bottles are automatically ejected out of the output conveyor.
Juice Bottling Filling Machine's Technical Parameter
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 |
| Washing Heads | 16 | 18 | 24 | 32 |
| Filling Heads | 12 | 18 | 24 | 32 |
| Caping Heads | 6 | 6 | 8 | 10 |
| Capacity(b/h) | 3000 | 6000 | 10000 | 14000 |
| Filling Precision | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm |
| Power(Kw) | 2.2 | 3.75 | 4.8 | 5.5 |
| Weight(Kg) | 2500 | 3000 | 4000 | 5000 |
| Size(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750 *2180*2200 | 3600*2800*3150 |
Juice Bottling Filling Machine's Bottle Washing

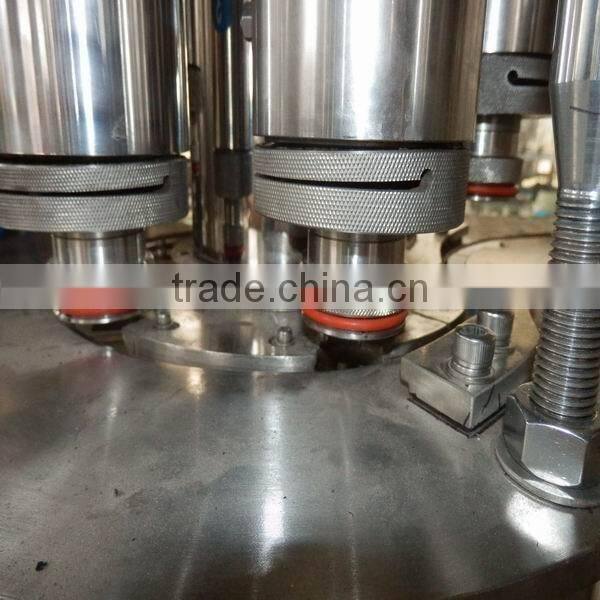

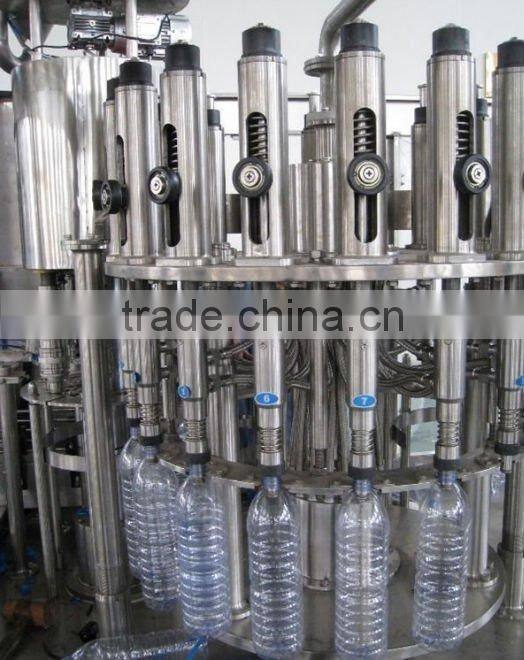

Juice Bottling Filling Machine's Filling
Juice Bottling Filling Machine's Sealing
