Home > Packaging & Printing > Packing Machinery > Filling Machine > Juice Processing Machine/Apple Juice Concentrate Plant

Juice Processing Machine/Apple Juice Concentrate Plant

Name: Juice Processing Machine/Apple Juice Concentrate Plant
Brand: JIAZHOU
SKU: 140471140
Availability: InStock

Zhangjiagang Jiazhou Machinery Co., Ltd.

Juice Processing Machine/Apple Juice Concentrate Plant thumbnail-1

Juice Processing Machine/Apple Juice Concentrate Plant thumbnail-2

Juice Processing Machine/Apple Juice Concentrate Plant thumbnail-3

Juice Processing Machine/Apple Juice Concentrate Plant photo-1

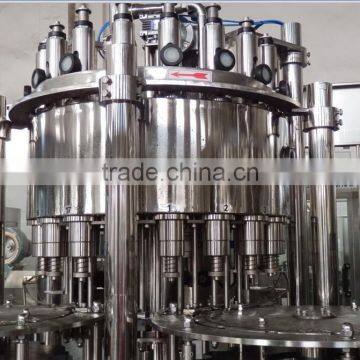

Juice Processing Machine/Apple Juice Concentrate Plant photo-2

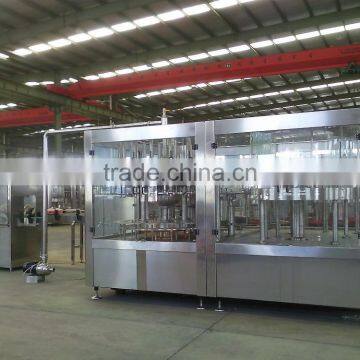

Juice Processing Machine/Apple Juice Concentrate Plant photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Beverage

Packaging Type:

Case

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Beverage

Packaging Type Case

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 380V/50HZ/60HZ

Power 9.18KW

Place of Origin Jiangsu, China

Brand Name JIAZHOU

Model Number RCGF

Dimension(L*W*H) 2200*1800*1300

Weight 1500KG

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

P/roduct information

Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description

Features:

1. The Complete Fruit Juice Filling Machine And Manufacturing Line is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.

2. It is automatic in total process and suitable for PET bottled juice tea drink which can resistant high temperature.

3. It also can be used for mineral water, pure water and many other no gas containing drinks.

4. It makes by high quality SUS304 and key parts are precision machined by NC tool.

5. The total machine adopts advanced photoelectric detection technology to detect each part's operation status, no bottle no filling, no bottle no capping, automatic easy operation.

6. Using the wind sent access, with clamp hanging the bottle neck which can keep the bottle shape high-speed.

7. Washing bottle mouth with special designed washing manipulator, clip in the bottle neck, stable avoid secondary pollution.

8. Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling.

9. Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.

10. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan Mitsubishi, France Schneider, Omron.

Product display

washing

filling

capping

Product Parameters

	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12
Productivity	3000BPH	6000BPH	10000BPH	14000BPH	15000-20000BPH
Rinsing Head	16	18	24	32	40
Filling Head	12	18	24	32	40
Capping Head	6	6	8	10	12
Bottle Volume	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm	φ50-92mm	φ50-92mm	φ50-92mm	φ50-92mm
Bottle Height	150-310 mm	150-310 mm	150-310 mm	150-310 mm	150-310 mm
Filling Tolerance	±2%	±2%	±2%	±2%	±2%
Cap Size	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6 MPa
Air Consumption	500 L/min	500 L/min	500 L/min	500 L/min	500 L/min
Filling Water Consumption	1.5 m3/h	3 m3/h	6 m3/h	7.5 m3/h	9 m3/h
Rinsing Water Consumption	0.5 m3/h	1 m3/h	2 m3/h	2.5 m3/h	3 m3/h
Motor Power	5.88kW	6.68kW	7.68kW	9.18kW	9.18kW
Voltage	380V	380V	380V	380V	380V
Dimension	(LWH) 210015002200mm	(L×W×H) 245018002200mm	(L×W×H) 275021802200mm	(L×W×H) 360028003150mm	(L×W×H) 360028003150mm
Weight	2500kg	3000kg	5300kg	8000kg	12000kg
Filling Principle	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling
