Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V50Hz | Power: | 6.57kw | Place of Origin: | Jiangsu, China |
Brand Name: | Jiazhou Filling Machine | Model Number: | DCGF | Dimension(L*W*H): | 2450*1800*2200 |
Weight: | 5500kg | Certification: | CE,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

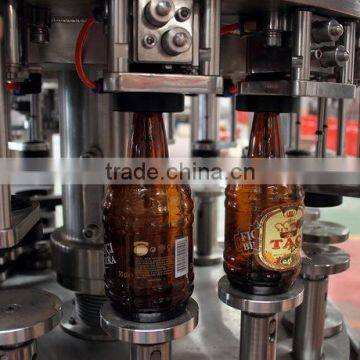

automatic 3in1 glass bottle beer filling capping machine: SBF18-18-6
Introduction:
we have developed the latest beer filling machine in accordance with the technological requirements for packing beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.
Machine Features:
1.With high precision me chanical filling valves,our beer filling machine stops vacuumizing when there are no bottles.
2.The beer filling machine is equipped with external mechanical valve,inside which there is no spring or sealing element.
3.With high pressure frothing device,it is capable of double vacuum-pumping.
4.The beer filling machine makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.
5.The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life.
6.In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7.With a full stainless steel magnetic hopper,the unscrambling, feeding and discharging of crown caps are all performed by magnetic force.The caps are free from deforming,and can flow smoothly in large quantities during transmission.
8.The capper has the function of automatic deloading,which helps lower the bottle breakage.
9.For the centering guide of our beer filling machine,we adopt double guide-bar mechanism,with the function of pre-covering which allows stable and reliable bottle transferring.
10.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.
11.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.
Main Technical Parameter
Model | DCGF16126 | DCGF18186 | DCGF24248 | DCGF323210 |
Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 |
Production capacity(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000 |
Suitable bottle diameter | Φ=40-80mm, H=150-280mm | Φ=50-100mm, H=150-320mm | Φ=50-100mm, H=150-320mm | Φ=50-100mm, H=150-320mm |
Spraying pressure | 0.2-0.25Mpa | 0.2-0.25Mpa | 0.2-0.25Mpa ³ | 0.2-0.25Mpa |
Motor power | 4.23kw | 5.03kw | 6.57kw | 8.63kw |
Stainless steel | SS304 | SS304 | SS304 | SS304 |
Electric voltage | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz |
PLC | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
Frequency converters | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
Touch screen | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
Circuit contactor | Siemens | Siemens | Siemens | Siemens |
Overall dimension mm | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 |
Weight | 2000kg | 3500kg | 5500kg | 8000kg |
Main Configuration
1 | Frequency inverter | Japan Omron or Panasonic |
2 | Main electric parts | Siemens |
3 | PLCD | Japan Omron |
4 | Photoelectric sensor | Korea AUTONICS |
5 | Approach / Proximity switch | |
6 | Fiber optic switch | |
7 | Contactor | Siemens |
8 | Touch screen | Taiwan origin |
9 | Main Motor | Nanjing Kongda |
10 | Speed Reducer | Hangzhou Tianyu |
11 | Pneumatics | Taiwan Airtac |
12 | Bottle feeding | Air conveyor belt |
13 | Rinsing | Bottle-neck clamping type |
14 | Capping | Magnetic rotary type |
related production--ink jet printer
bottle warmer and cooler
PE film packing
WATER TREATMENT:
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
Company Information
Company Introduction
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
FAQ
Q1. The material for making machine is SS210 or SS304? Can I ask for SS316 material?
A1: We never use SS210, material for beverage machines should be good.
Price for SS316 is much higher than SS304, if you could accept the price, it is ok surely.
Q2. How can I make sure the quality of the machine?
A2: We promise quality and have one-year guarantee, and you can come to inspect the machines.
Q3. My country has standards for the machines, they need to have ***certicate, do you have?
A3: We now have BV/ISO9001:2008 certificate. Please tell us your standard, we shall apply for that certificate.
If you are interested or any question, welcome to contact us.
