5 Gallon Drinking Water Filling Machine Price

Zhangjiagang Jiazhou Machinery Co., Ltd.
5 Gallon Drinking Water Filling Machine Price thumbnail-1
5 Gallon Drinking Water Filling Machine Price thumbnail-2
5 Gallon Drinking Water Filling Machine Price photo-1

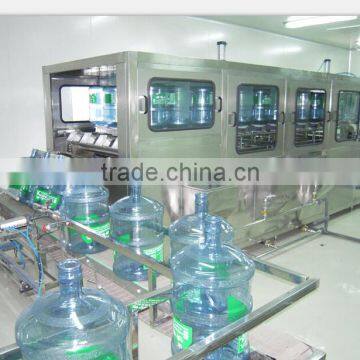

5 Gallon Drinking Water Filling Machine Price photo-2
US$ 1,000 - 9,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, WTER
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, WTER
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number QGF
Dimension(L*W*H) 3700*600*1550MM
Weight 1T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product description5 gallon drinking water filling machine price

This filling line specially produces 5 gallons bottled drinking water,

types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.

ltintegrates bottle washer,filler andsealer into one unit,

in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing

and leaching areused in bottle washer,Washing solution can boused circularly.

The sealer can seal bottle caps automatically.

This line equips with water spraying device tosterilize caps of bottlesin order to

 ensure those caps are aseptic and healthy,also this line

can automatically carry out bottle feeding washing,sterilizing,filling capping,

counting and products discharging.It is a new kind of barreled water auto-producting line,

which integrates mechanism,electricity and pneumatics technologies together.



Product display5 gallon drinking water filling machine price

5 gallon drinking water filling machine price



5 gallon drinking water filling machine price



5 gallon drinking water filling machine price

Product Parameters5 gallon drinking water filling machine price

Main Technical parameters

Model

QGF-100QGF-300QGF-450QGF-600QGF-900QGF-1200QGF-2000

Filling heads

123481216

Volume(L)

18.918.918.918.918.918.918.9
Barrel size(mm)φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490φ270×490
Capacity(B/n)100-120200-240300-40060090012002000
Gas pressure(mpa)0.4-0.60.4-0.60.60.60.60.60.6
Gas consumption
(m3/min)		0.370.60.61.22.234.5
Motor power(Kw)1.753.224.88.58.58.58.5
Rated voltage(V)380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
Outline dimension(mm)3790×650
×1550		3550×800
×1800
2800×1100
×1800		3550×1200
×1800
3800×1100
×1800		3650×1500
×1800
3800×1100
×1800		2200×1860
×2700		2560×2350
×2750		3100×2800
×2750
Weight(kg)8002800400055007500950011800
