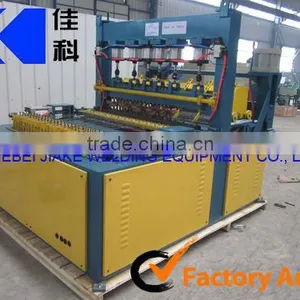

automatic wire mesh welding equipment
Characteristics:
Automatic wire mesh welding machine is made up of pneumatic mesh welding machine and pneumatic mesh cutting machine. It adopts computer control to realize precise welding time, balanced current and low failure.
1. Main welding machine adopts famous imported pneumatic component to achieve long service life, high precision, great pressure, and tight welding spot.
2. Welding transformer applies new high efficient welding transformer with eight shifting grades that expand welding wire diameter range.
4. Control system is served by PLC programmable controller and touch display screen, with easy operation interface and working pattern.
5. Both line wire and cross are feeded from coil wire automatically.
Main parameter:
Rated voltage |
380V 50Hz 3-phase |
Rated capacity |
75 KVA |
Welding wire diameter |
2.0mm-3.0mm |
Welding aperture |
50*50mm-200*200mm |
Width of mesh |
1200mm |
Number of welding points |
25 |
Production capacity |
700 square meter per shift (8hours) |
Overall dimension |
2.5x2.1x1.4m |
Weight |
2.0MT |
