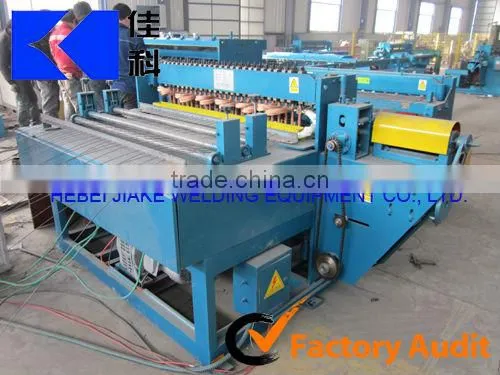

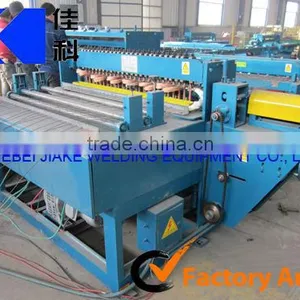

building mesh panel welding machine
Function Characteristics:
This machine adopts electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function , firm welded point, without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular , it is unnecessary to slice the side . Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole , and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Use of The Product:
1. Enclosure mesh and building roof mesh;
2. building(reinforcing construction mesh, floor warming mesh, seed-bed mesh and flower room mesh).
Main parameter:
Wire diameter 1.4-2.5(mm)
Rated voltage 380V
Welding aperture 50 x 50 - 200 x 200(mm)
Rated electrical power 75KVA
Width of mesh 1200mm
Overall dimension 2.5 * 2.1 * 1.4M
Number of warp 25
Machine weight 2.8T
Welding speed 60 (times/minute)
