Specifications
2014 New type wire straighten and cut off machineautomatic
stable function
easy to operate
long service life

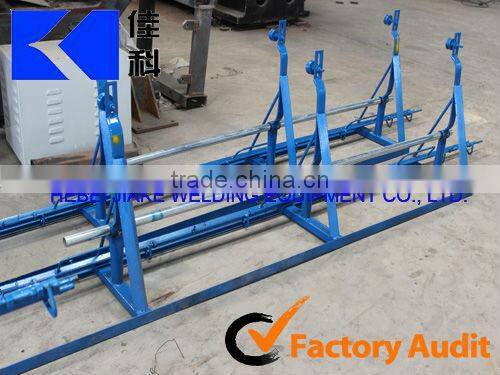

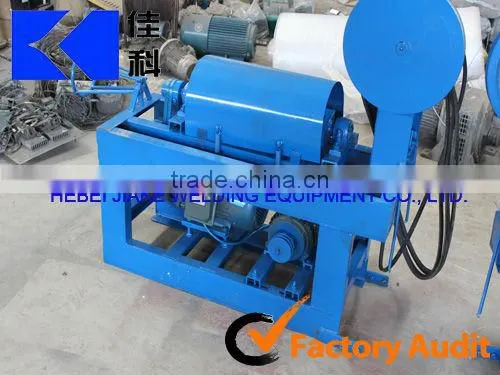

2014 New type wire straighten and cut off machine/wire straightening and cutting machine
Machine
This machine mainly consist of tray bar rack,straightening rack, cutting device,base support and control box of electric appliance,
Usage
the machine is used to straightening and cutting all types of metal wire
we have 6 model:
SC1.5-3.5MM for 1.5-3.5mm wire
SC2-5MM for 2-5mm wire
SC4-8MM for 4-8mm wire
SC5-12MM Mechanical for 5-12mm wire
SC5-12MM Hydraulic for 5-12mm wire
2014 New type wire straighten and cut off machine/wire straightening and cutting machine
Model |
JK-SC2-5 |
Dia.mm |
2-5 |
Cut Length mm |
30-6000 |
Cut Error mm |
±1 |
Speed m/min |
30 |
Straight Motor kw |
1.5 |
Cutting Motor kw |
0.75 |
Overall Size M |
1.2*0.4*0.9 |
Weight KG |
150 |
Other Models:
Model |
JK-SC1.5-3.5 |
JK-SC3-6 |
JK-SC4-8 |
JK-SC4-12 |
JK-SCH5-12 |
Dia.mm |
1.5-3.5 |
3-6 |
4-8 |
4-12 |
5-12 |
Cut Length mm |
30-2000 |
30-6000 |
200-6000 |
200-6000 |
700-9000 |
Cut Error mm |
±1 |
±1 |
±1 |
±1 |
±10 |
Speed m/min |
25 |
35 |
35 |
30 |
45 |
Straight Motor kw |
1.5 |
2.2 |
4 |
7.5 |
11 |
Cutting Motor kw |
0.75 |
0.75 |
3 |
4 |
4 |
Overall Size M |
1.7*0.4*0.8 |
1.3*0.55*1.1 |
7.3*0.6*1.2 |
8*0.8*1.3 |
1.9*0.6*1.4 |
Weight KG |
130 |
200 |
650 |
1000 |
900 |
2014 New type wire straighten and cut off machine/wire straightening and cutting machine
Products:
2014 New type wire straighten and cut off machine/wire straightening and cutting machine
Hebei Dapu Import & Export Trade Co.,Ltd is engaged in designing, manufacturing and exporting metal & wire mesh processing machinery, different kinds mesh weaving and wire mesh welding machine which located in Shijiazhuang Hebei China.It has own factory-Hebei Jiake Welding Equipment Co.,Ltd located in industrial zone ,Anping, Hebei ,China.It is the leading manufacturer of mesh machine in China and we always offer advanced wire mesh technology.
