Griddle filter welding machine
Features:

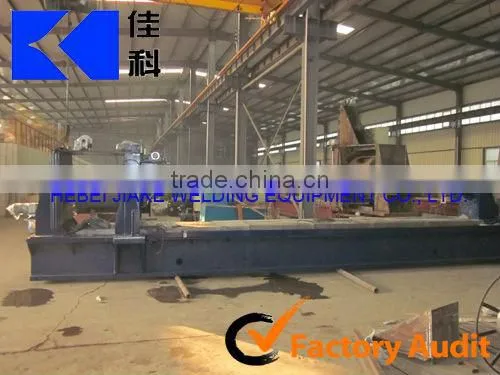

The machine are combined by CD61100 lathe , Welding control cabinet, transformer roller and wire press unit. it has strongpoint of welding hole distance

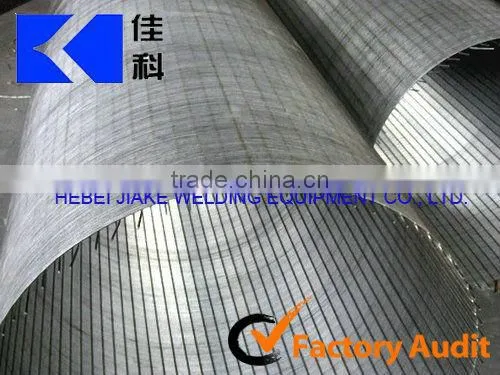

Usage: the welding joint of mineral filtrating mesh, coal washing mesh and centrifugal basket.
The main parameter:
1. the diameter of the canister: 30mm1-200mm
2. slot distance: slot ≥0.1mm when diameter of canister ≤350mm; the slot ≥0.25mm when diameter of canister ≤600mm; the slot ≥0.3mm when diameter of canister ≤800mm
3. Length of canister: Length ≤6000mm
4. Material: Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )welding or threaded
5. V-wire size: diameter 2mm-5mm
6. Rod size: diameter 2mm-5mm
7. Power: 380V,50Hz, 3-phase
8. Measurement: 9000mm x 1200mm x 2300mm
9. Weight: 6000 Kgs
