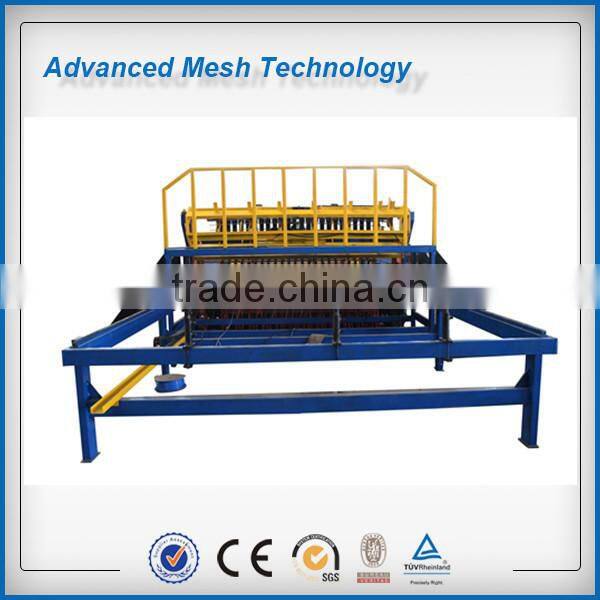

welded wire mesh making machines JK-RM-2500B
1. Wire diameter:5-12mm
2. Mesh width:2.5m
3. Wire spacing:100-300mm
4. Mesh length: as required
The machine could be customer made, please tell us your detailed requirement such as wire diameter, mesh width and length and wire spacing and so on.
welded mesh machines JK-RM-2500B Chracteristic:
This machine adopts synchronous control technique, welding time and separate welding are controlled by automatic control system& HMI, operation more intelligent. The main frame is welded by thick steel plate and sections, which makes the main structure more compact and solid. Frequency control with bake motor matching helical gear reducer connect the main shaft, ensure the welding is more stable and efficient. Welding electronic using one compression but power transmission by separate method, that is to say, when weld a cross wire, the welding transformer working separately, to reduce the requirements for power transformer.
1.Line wires input: Option one, insert the line wires by hand, according to the required distance precise adjustment of the wire spacing. Option two, adopts servo motor driving pneumatic clamping input wire device to the send the line wire to the welding position, which save more time to place the wire.
2.Cross wire input:automatic cross wire loading with cross wire hopper for sorting, positioning, and ejecting the straightened and cut-to -length wires. The multi-hopper which capacity is more over ten times than the traditional hopper.
3.Line wire spacing: according to the line wire spacing, the machine can adjust the upper electrode. Each welding spot is adjustable and controlled by water cooled SCR and micro-computer timer for precise weld control.
4.Welding device:Fully adjustable welding time and current. The welding powers comes from the spring. It is easy to adjust the welding pressure. The welding part is used the springiness input wire trunking that ensure the welding copper longer life-span.
5. Mesh output device: adopts servo motor driving pneumatic clamping wire output device, which makes the mesh size more accurate. output distance based on the cross wire spacing, adjustable by touch screen input, and multiple mesh size can be set on the same mesh panel, giving customers flexibility and convenience in production; continuous reciprocating drawing mesh to achieve longer mesh production.
6. Controlling system:P.L.C with man-machine interface window where all the parameter of the system are set on the screen linking with P.L.C. The working process are graphically presented
7. Wire straightening device:2sets of the device for straightening the wires.

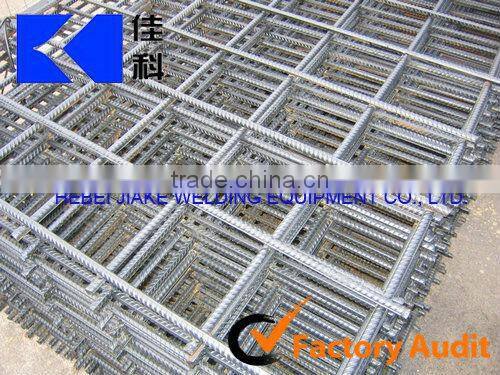

welded Mesh used for
Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
Contact: Miss lee
Skype: qq1815361000
Mobile/Wechat:+86 15324391556
Hebei Jiake Welding Equipment Co.,Ltd
Address:Wire Mesh Insdustrial Zone, Anping County, Hebei Province, China
