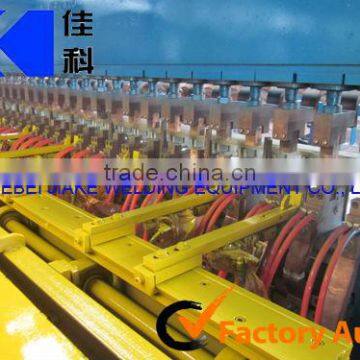

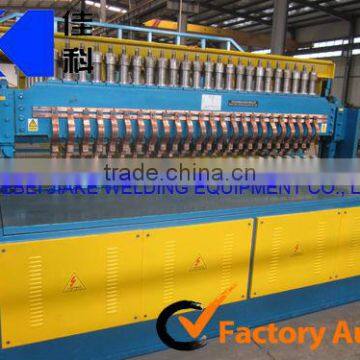

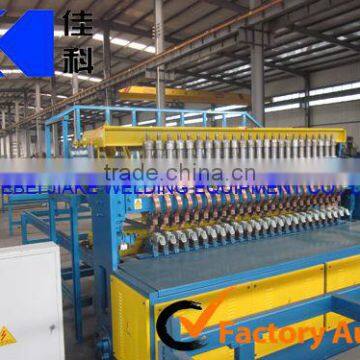

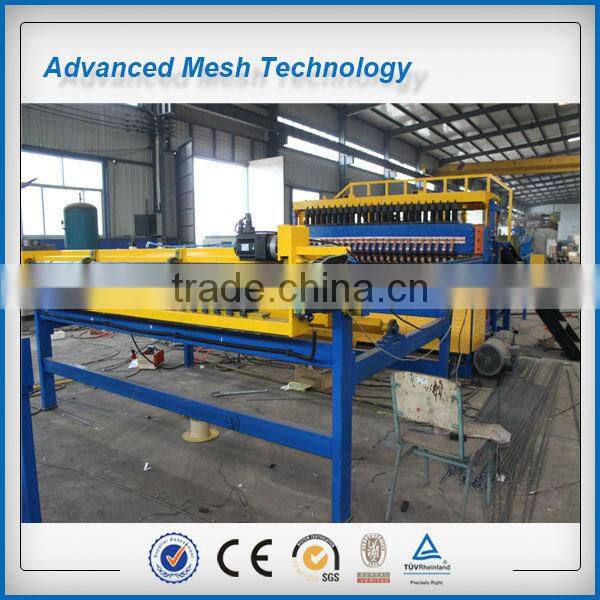

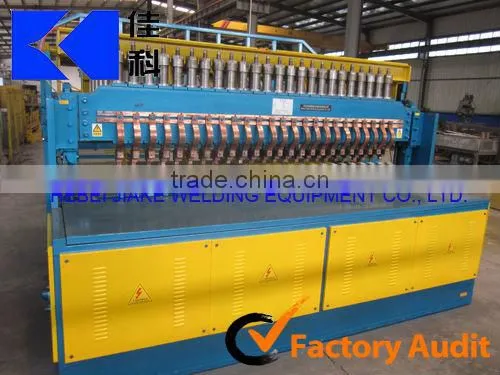

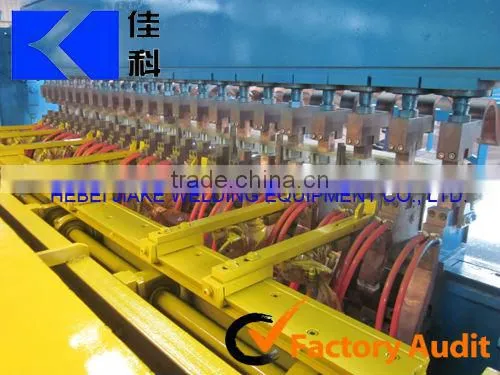

5-12mm wire mesh welding machines JK-RM-2500B
5-12mm wire mesh welding machines JK-RM-2500B characteristic
- synchronization CNC technology, welding time and separate welding are controled by PLC digital program
- Input panel for touch screen or buttons two kinds, which makes the machine more intelligent and rationalization.
- welding transformer, shifting gear can be divided into eight levels, expand the scope of the diameter of the welding wire.
- It is easy to operate, and the flexibility is high.
5-12mm wire mesh welding machines JK-RM-2500B specification :
Wire diameter: 5-12mm
Warp spacing: 100-300mm
weft spacing: 50-300mm
Max width: 2500mm
Welding No.: 24
Power: 380V 50HZ
Rated capacity: 150KVA*12
Motor power: 5.5kw
warp feeding: pre-straight and pre-cut
Weft feeding: pre-straight and pre-cut
Welding speed: 45-65 times/min
Dimension: 20m*3.6m*2.5m
Weight:9T
wire mesh application :
Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh
reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange
technician to the user factory in the soonest time, solve the trouble and resume production in time.
Hebei Jiake Welding Equipment Co., Ltd. founded in 2000, located at the junction of Beijing, Tianjin and Shijiazhuang, Anping County, which is famous as “Hometown of wire mesh” in China, is a professional manufacturer for wire mesh machineries. The company has been developing smoothly and quickly and it has more than 100 employees. And the company has own wire mesh machineries and several pilot plants with strong technical force and advanced production and checkout equipments.
Our main products: 3D panel production line, steel bar mesh welding machine, CNC fence mesh welding equipment , 3D panel wire mesh machine (Bevel inserting combination joint machine), welding equipment of mine sieve mesh, chicken cage mesh welding machine, electric welded mesh machine and so on.
Contact: Miss lee
Skype: qq1815361000
Mobile/Wechat:+86 15324391556
Hebei Jiake Welding Equipment Co.,Ltd
Address:Wire Mesh Insdustrial Zone, Anping County, Hebei Province, China
