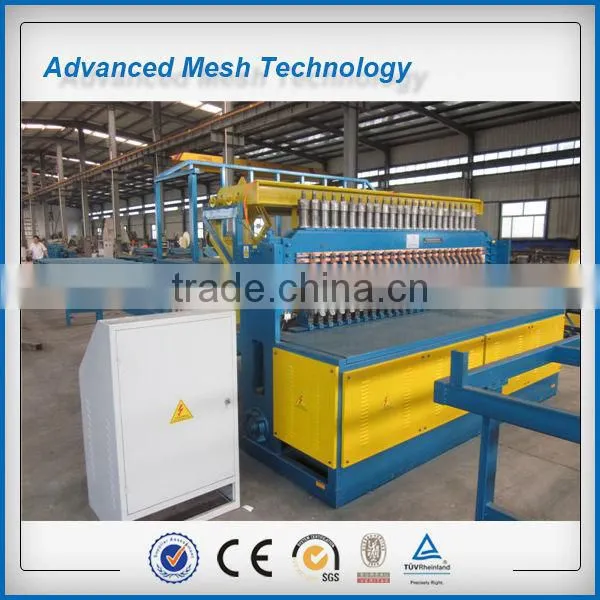

5-12mm Steel Bar Mesh Welding Machines for Making 2500mm Wire Mesh Panel JIAKE Factory
Steel bar mesh welding machine woking process:
1. use wire straightening and cutting machine pre-striaghtened and pre-cut the line wire and cross wire.
2. cross wire input: loading the cross wire into the cross wire input hopper, then when welding the cross wire will input automaitcally, power from step motor.
3. line wire input: choice one, manually input the line wires into the wire trunking to the welding part. choice two, input by the line wire input device, power from Servo motor, automatically move the line wires trhough the wire trunking to the welidng part.
4. parameter set, HIM, touch screen input the parameter needed, then start the machine.
5. the machine begain to welding automatically. and the mesh output device, power from Servo motor, drawing the finished mesh forward to the next work station.
Steel bar mesh welding machine characteristic:
1. HMI, touch screen, easy to learn and operate the machine.
2. high welding speed, 40-60cross wires/min
3. cross wire input hopper applied patent technology
4. the welding pressure comes from spring, brake motor matching helical gear reducer connect the main shaft, ensure the welding stable.
5. famous brand apparatus:
auxiliary equipment for the steel bar mesh welding machine
|
|
1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh
|
|
2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh
|
|
3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh
|
|
4. electric welded mesh machines for construction mesh
|
|
All our machines could be customized, please contact us for much more details
|
|
|
|
