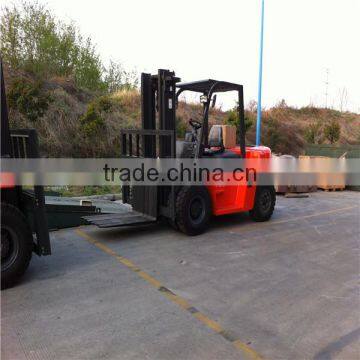

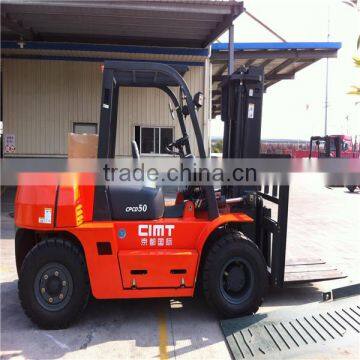

Forklift Specification
Model | Unit | CPCD50 | |||
Load capacity | Kg | 5000 | |||
Load center | mm | 600 | |||
Lifting height | mm | 3000 | |||
Mast extended height (with backrest) | mm | 4420 | |||
Mast tilt angle (Forwards/Backwards) |
| 6/12 | |||
Hold under mast (Min.) | mm | 170 | |||
Turning radius (Min.) | mm | 3250 | |||
Travelling speed (Max.) | Loaded / Unloaded | Km/h | 28 / 26 | ||
Lifting speeds (Max.) | Loaded / Unloaded | mm/s | 440 / 550 | ||
Lowering speeds(Max.) | mm/s | ≤600 | |||
Gradeability under full load (Max.) | % | 20 | |||
Dimensions | Length | With fork | mm | 4620 | |
Width | 1995 | ||||
Height | Mast lowered height | 2500 | |||
Overhead guard height | 2450 | ||||
Wheelbase | mm | 2250 | |||
Wheel tread | Front / Rear | mm | 1470 / 1700 | ||
Tire | Front / Rear | - | 8.25-15-14PR / 8.25-15-14PR | ||
Engine | Model | - | Xichai CA6110 | ||
Rated power / r.p.m | Kw/r.p.m | 83/2000 | |||
Rated torque / r.p.m | Nm/r.p.m | 450/1500 | |||
Fuel tank capacity | L | 100 | |||
Fork size (L x W x T) | mm | 1220×150×50 | |||
Total weight | Kg | 8250 | |||
Introduction
We are devoted to the research, development and manufacture of hi-tech forklifts and aim to improve self-innovation capacity and the development of national forklift industry. We look forward to cooperating with you based on mutual development. Contact us for more details.
The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg.
Export Market Distribution
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | confidential
| 0.23 |
Eastern Europe | 0.96 | |
Southeast Asia | 1.51 | |
Africa | 1.19 | |
Oceania | 0.27 | |
Mid East | 1.83 | |
Eastern Asia | 0.03 | |
Southern Europe | 0.06 | |
South Asia | 0.3 | |
Domestic Market | 93.62 |
5 ton diesel forklift,diesel forklift 5000kg 5 ton diesel forklift,diesel forklift 5000kg 5 ton diesel forklift,diesel forklift 5000kg

OPTION:
1.As a professional manufacturer of forklift, we also can offer you customized service
the following items are optional
2.Container mast, for example, 2-stage full free mast of 3m.
3.For the details of customized configurations and options, please contact with us.
4.We professional service will be impressed on you.
Others:
A:Date of delivery:15-35days after received the deposit .
B:Payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight .
C:Guaranty period: 6 months or 1000hours upon receiving goods.
Why do you choose us?
1.Excellent quality and competitive price.
2.Delivery without delay.
3. Best after-sale service (24 hours online)
And so on……
