TECHNICAL PARAMETER

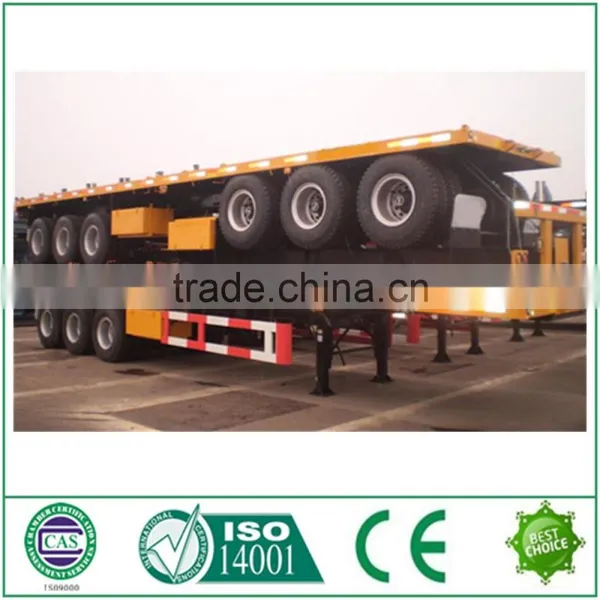

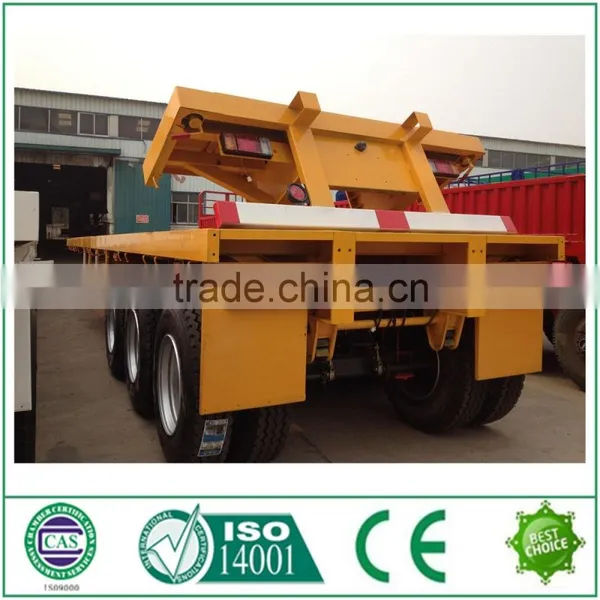

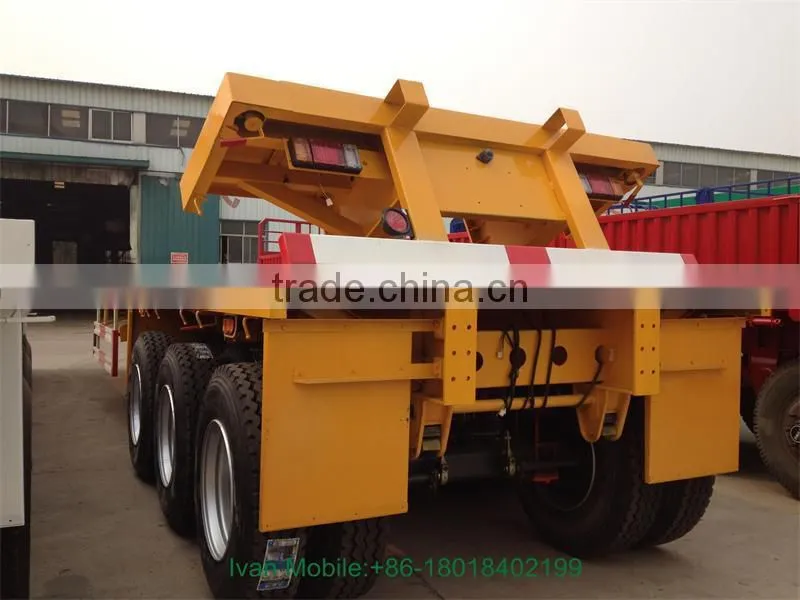

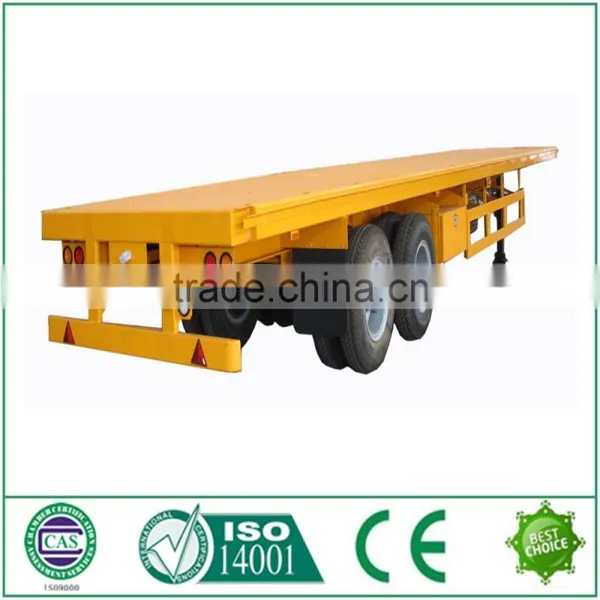

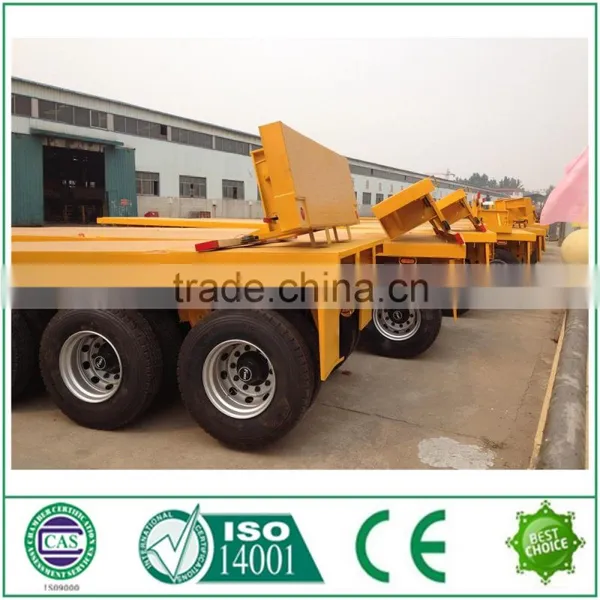

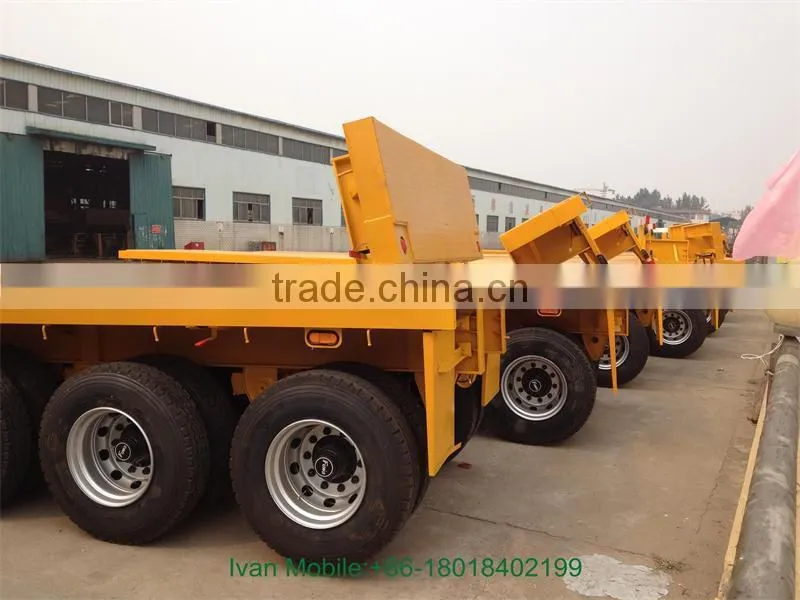

40t trailer container transportation
Overall Dimension:12500*2500*1550mm
Suspension system: Leaf Spring
| Chassis and main parts | |
| DIMENSION | 12450mm*2490mm*1557mm,Size can be design depends on customers’ request |
| AXLES | 13 T/PER axle, FUWA /BPW/HJ brands for choose |
| RIM | 9.00-22.5 13PCS or other sizes |
| TIRE | 12R22.5-22.5 13 PCS or other sizes , Triangle/Double Coin/Linglong |
| SUSPENSION | Mechanical suspension or Airbag suspension |
| LEAF SPRING | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 Layer |
| KINGPIN | JOST brand 2.0 or 3.5inch bolts type |
| LANDING LEG | JOST brand C200T or China brand 28Tons (Double speed) |
| MAIN BEAM | Height: 450mm-520mm, upper plate is 14mm-16mm, middle plate is 8mm-12mm, |
| down plate is 16mm-20mm ; Material is Q345B standard steel . | |
| SIDE BEAM | 16mm -25mm channel steel (Material is Q235B standard steel ). |
| PLATFORM | Standard 3 mm thickness checkered plate |
| BRAKING SYSTEM | WABCO brand emergency valve, T30/30+T30 Spring brake chamber, one piece of 45L air tank , ABS is optional |

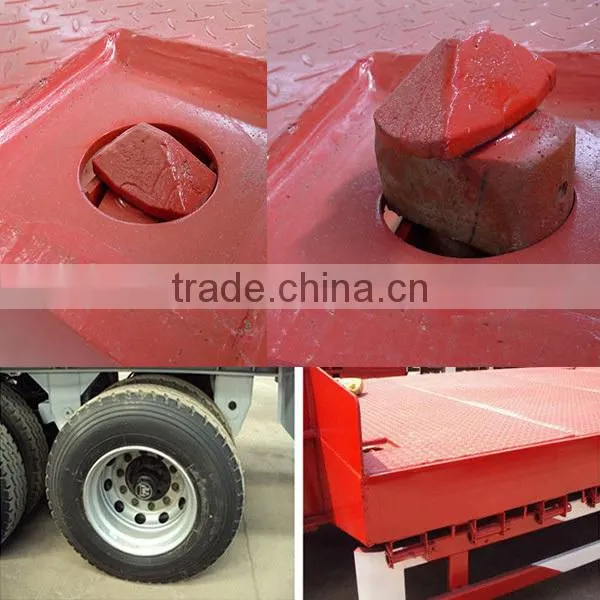

| TWIST LOCKS | 4 or 8 or 12PCS (lift and screw type for choose) |
| ELECTRIC SYSTEM | Voltage is 24V / 7 ways (7 wire harness) / LED light |
| TOOL BOX | One piece ,equipped with 1 unit Tire spanner, 1 piece sleeve and 1 piece cranking bar) |
| PAINTING | Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint |
| OTHERS | Design and make the right trailer depends on customers’ request |

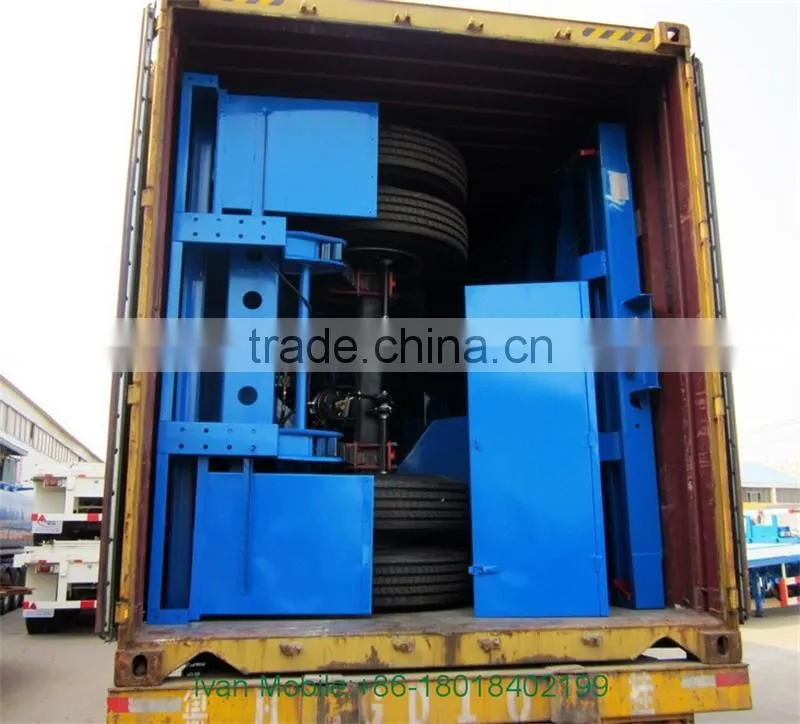

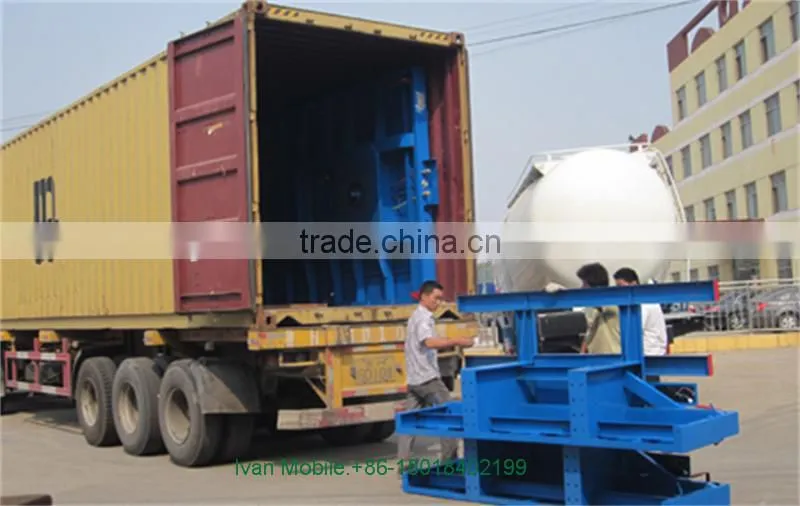

PRODUCTS AND PACKING
OUR SALES SERVICE TEAM IN SOUTH EAST ASIA
SHIPPING
PAYMENT TERMS
CONTACT US
Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
FAQ
Why Choose us?
1.We are China Leading Manufacture.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the inspection institution of Bureau Veritas Certification.
4.Professional and patient sales.
5.Best quality with reasonable price.
