The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.
Export Market Distribution
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | confidential
| 0.23 |
Eastern Europe | 0.96 | |
Southeast Asia | 1.51 | |
Africa | 1.19 | |
Oceania | 0.27 | |
Mid East | 1.83 | |
Eastern Asia | 0.03 | |
Southern Europe | 0.06 | |
South Asia | 0.3 | |
Domestic Market | 93.62 |
Model | Unit | CPCD250-VZ-12 Ⅱ | |||
Power Type |
| Diesel | |||
Operator Type |
| Rider Seated | |||
04-06-7150 Engine(Fuel tank) | mm | 330 | |||
Battery | (V/Ah) | 24/150 | |||
Service Brake |
| Hydraulic | |||
Parking Brakes |
| Pliers | |||
Load capacity | Kg | 25000 | |||
Load center | mm | 1200 | |||
Lifting height | mm | 4000 | |||
Mast extended height (with backrest) | mm | 5995 | |||
Mast tilt angle (Forwards/Backwards) | 6/10 | ||||
Hold under mast (Min.) | mm | 280 | |||
Turning radius (Min.) | mm | 5920 | |||
Travelling speed (Max.) | Loaded / Unloaded | Km/h | 26/24 | ||
Lifting speeds (Max.) | Loaded / Unloaded | mm/s | 350/320 | ||
Lowering speeds(Max.) | mm/s | 310 | |||
Gradeability under full load (Max.) | % | 30 | |||
Dimensions | Length | With for | mm | 8782 | |
Width | 3040 | ||||
Height | Mast lowered height | 3995 | |||
Overhead guard height | 3875 | ||||
Wheelbase | mm | 4250 | |||
Wheel tread | Front / Rear | mm | 2200/2510 | ||
Tire | Front/ Rear | - | 14.00-24-28PR /14.00-24-28PR | ||
Engine | Model | - | VOLVO TAD721VE | ||
Rated power / r.p.m | Kw/r.p.m | 195/2300 | |||
Rated torque / r.p.m | Nm/r.p.m | 900/1400 | |||
Fuel tank capacity | L | 7.15 | |||
Fork size (L x W x T) | mm | 2440*250*110 | |||
Total weight | Kg | 36500 | |||
Lateral Fork Adjustment(Outside of Forks) | mm | 820-2700 | |||
Max.Sideshift Distance | mm | ±470 | |||
Gear Box | mm | ZF 3WG211 | |||

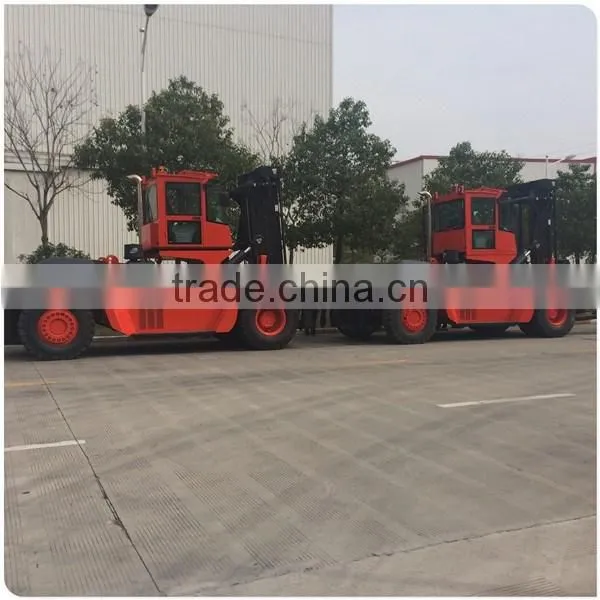

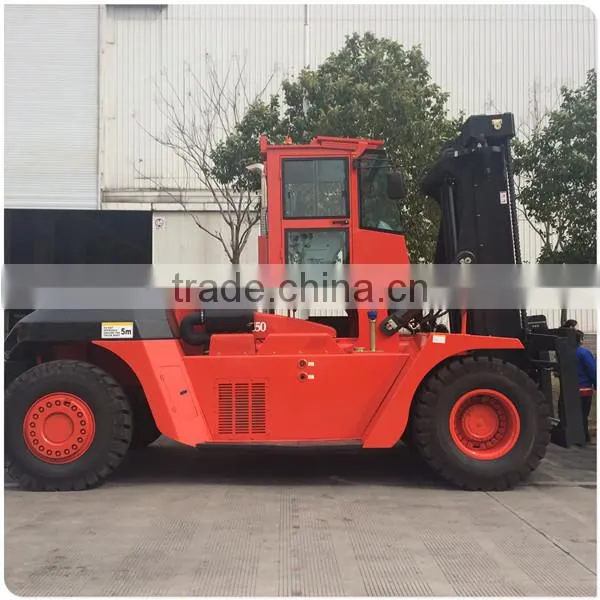

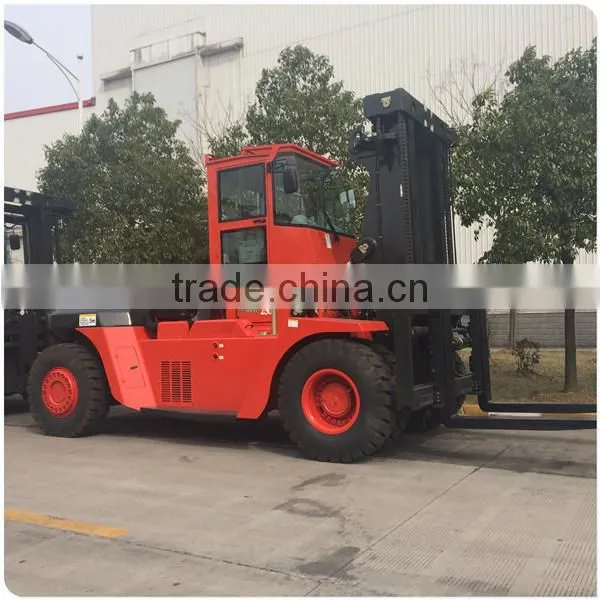

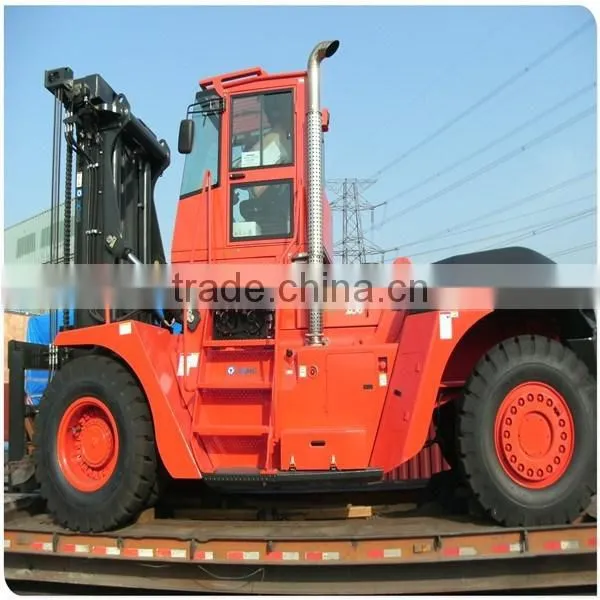

Product picture

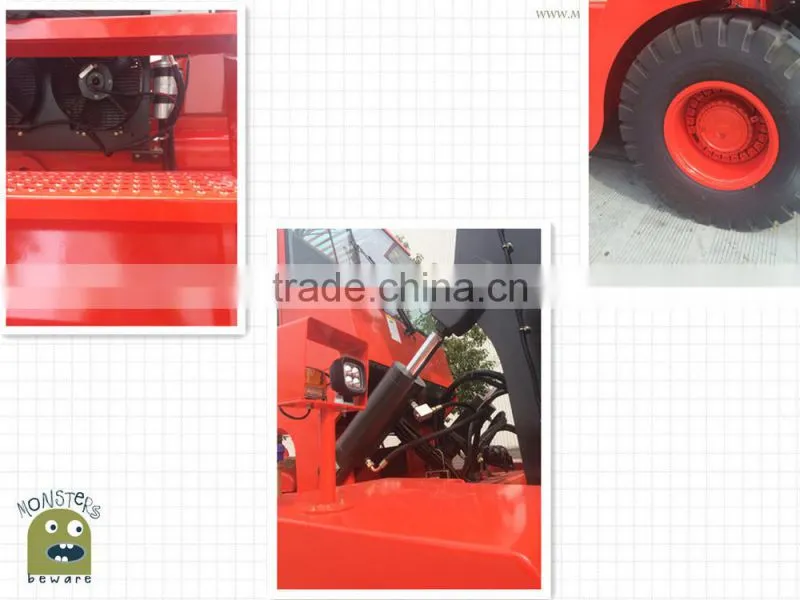

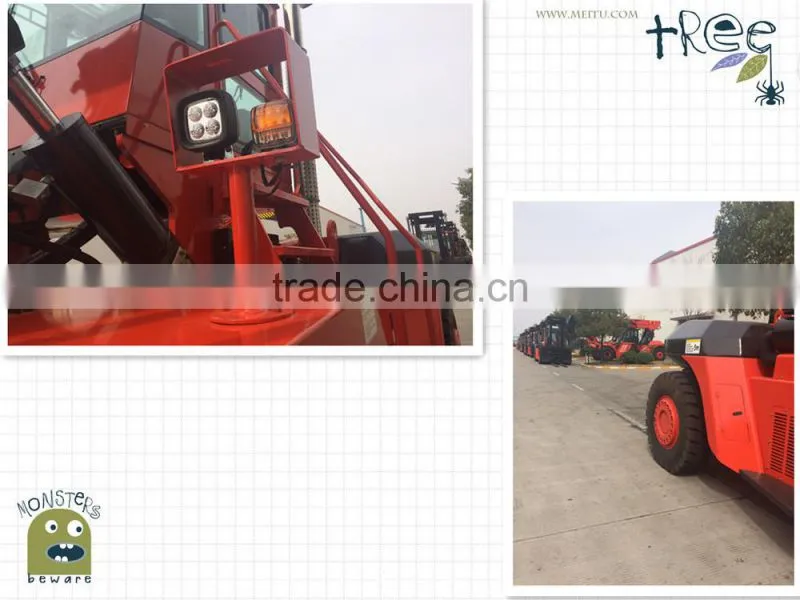

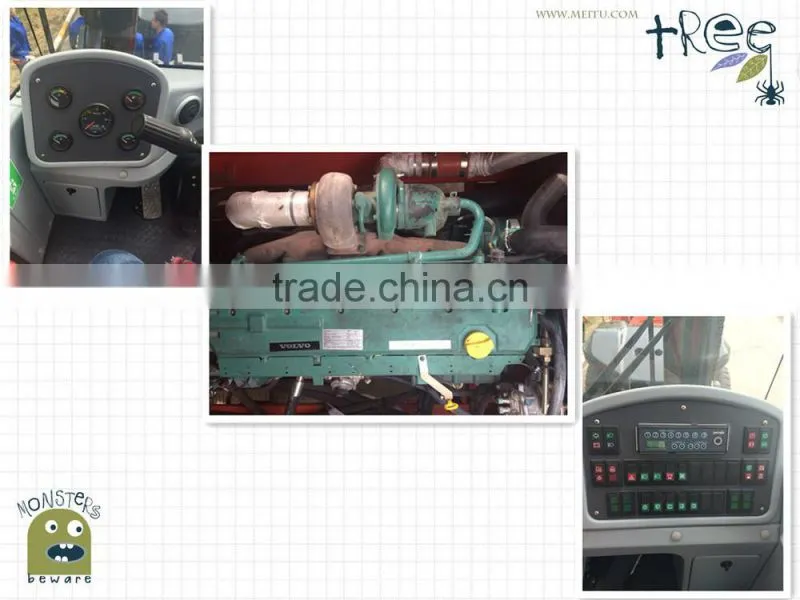

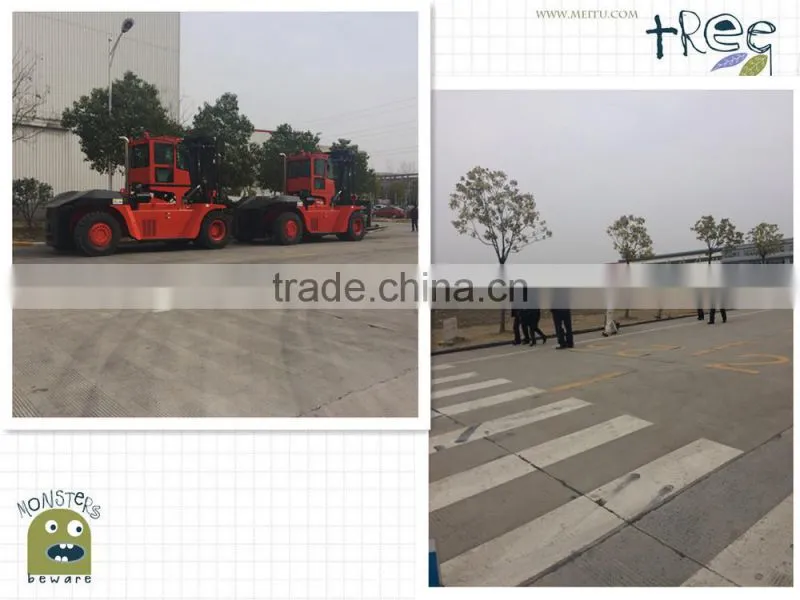

Photo details

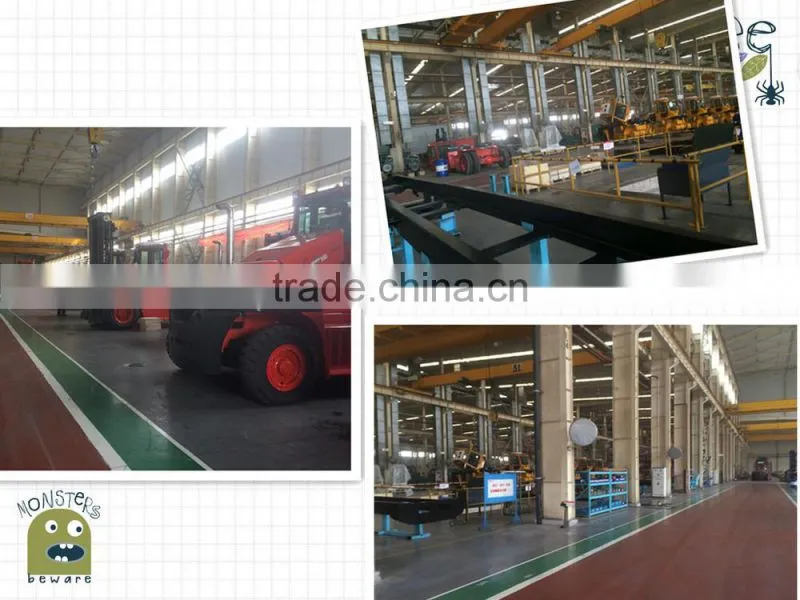

Factory photos
