Introduction
The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.
Forklift Specification
Load center distance | mm | 600 | |||
Lifting height | mm | 3000 | |||
Maximum height at work | mm | 4330 | |||
Mast tilt angle(Forwards/Backwards) | 6/12 | ||||
Hold under mast(min) | mm | 245 | |||
Turning radius(min) | mm | 3900 | |||
Travelling speed (max) | Unloaded | Km/h | 26 | ||
Loaded | 24 | ||||
Lifting speed (max) | Unloaded | mm/s | 290 | ||
Loaded | 350 | ||||
Lowering speeds(max) | mm/s | ≤600 | |||
Gradeability under full load (max) | % | 20 | |||
Dimensions | Length | Overall length | mm | 5480 | |
Length (without fork) | 4260 | ||||
Width | 2230 | ||||
Height | Closed mast height | 2850 | |||
Overhead guard height | 2600 | ||||
Wheelbase | mm | 2800 | |||
Wheel tread | Front | mm | 1600 | ||
Rear | 1700 | ||||
Tire | Front | - | 9.00-20-14PR | ||
Rear | - | 9.00-20-14PR | |||
Engine | Model | - | Xichai 6110 | ||
Displacement | L | 7.127 | |||
Rated power | Kw | 83 | |||
Revolution at rated power | Rpm | 2000 | |||
Maximum torque | Nm | 450 | |||
Revolution at maximum torque | rpm | 1450 | |||
Fuel tank capacity | L | 150 | |||

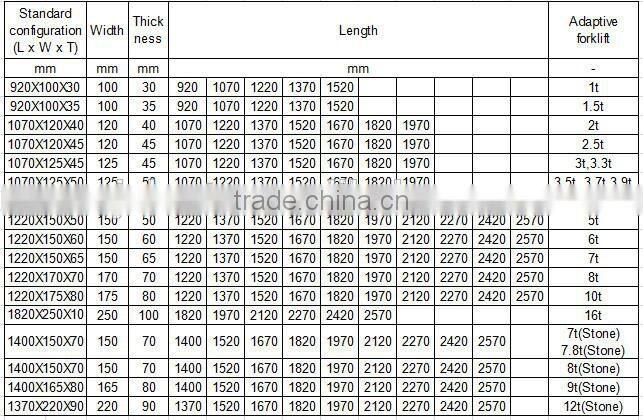

Fork size(LxWxT) | mm | 1220×175×80 | |||
Total weight | Kg | 12500 | |||

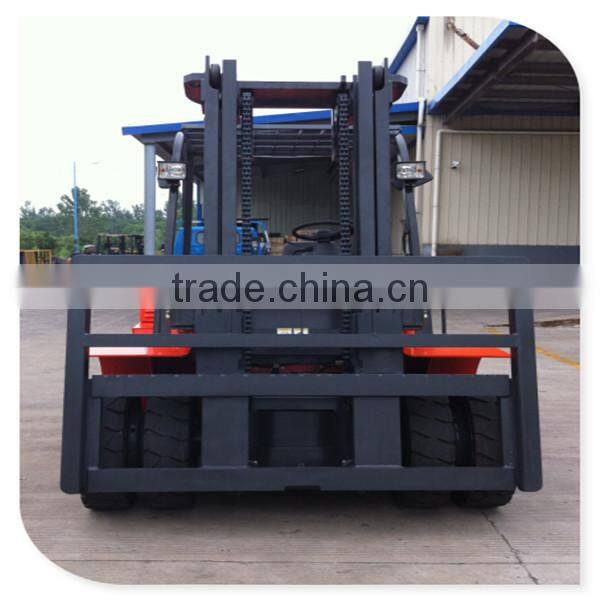

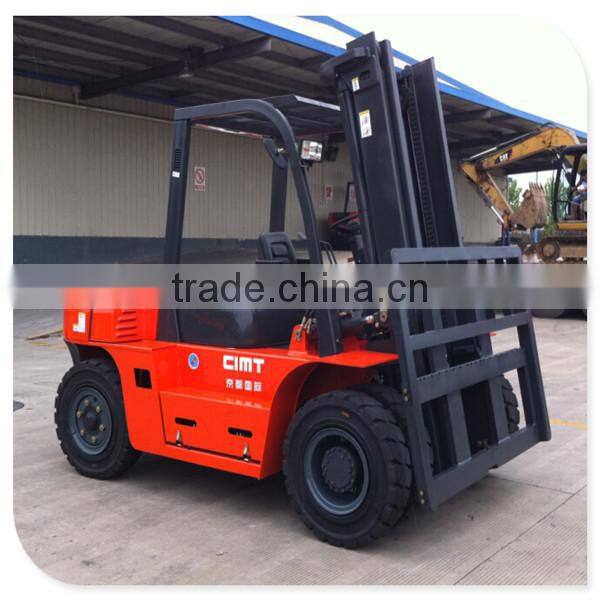

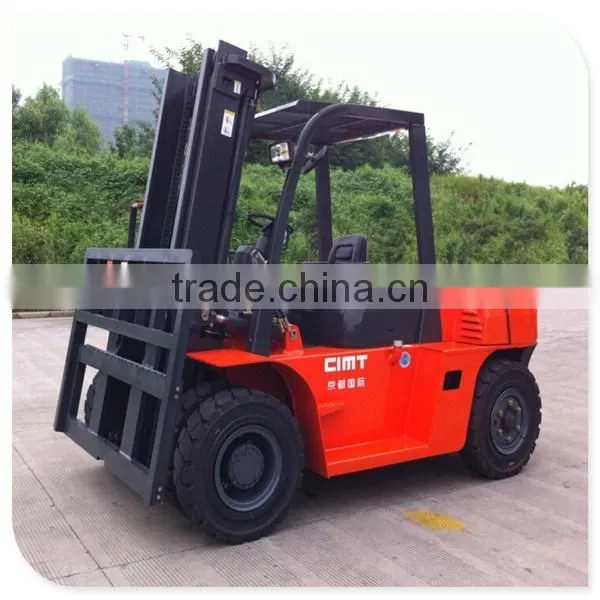

Product Picture

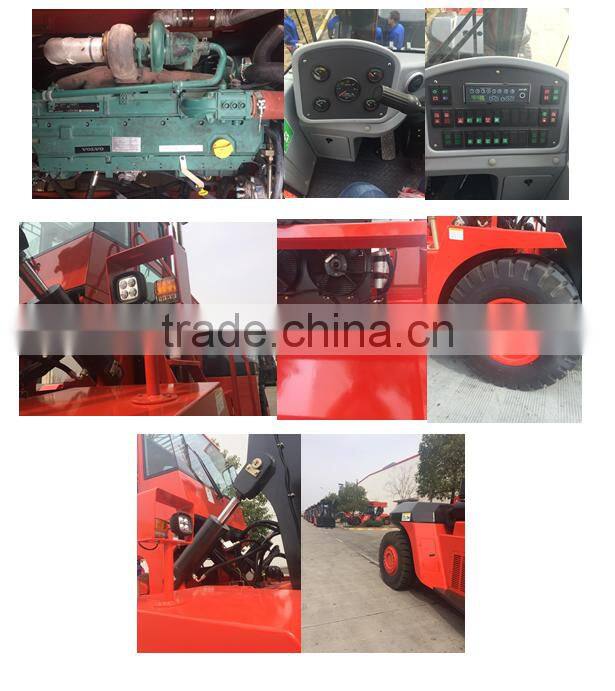

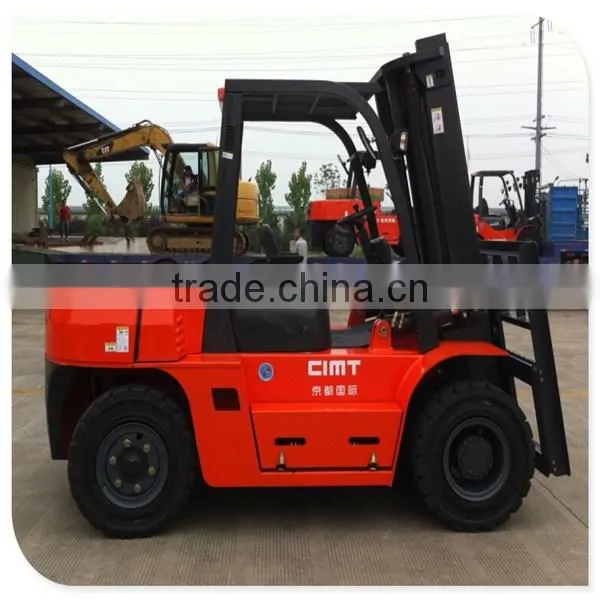

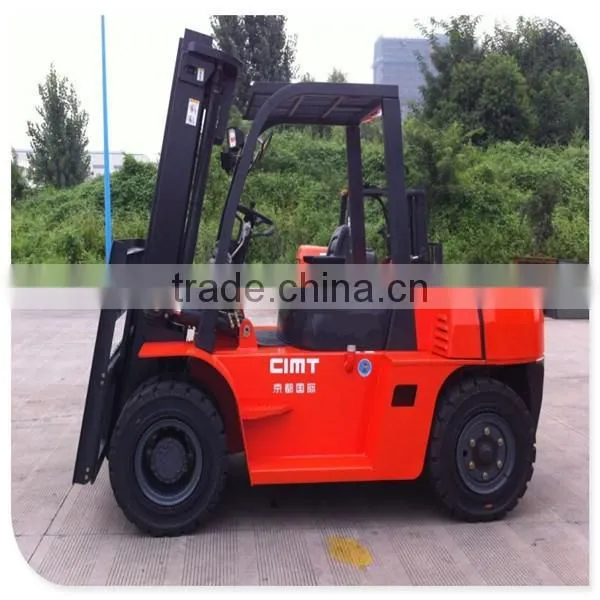

Photo Details

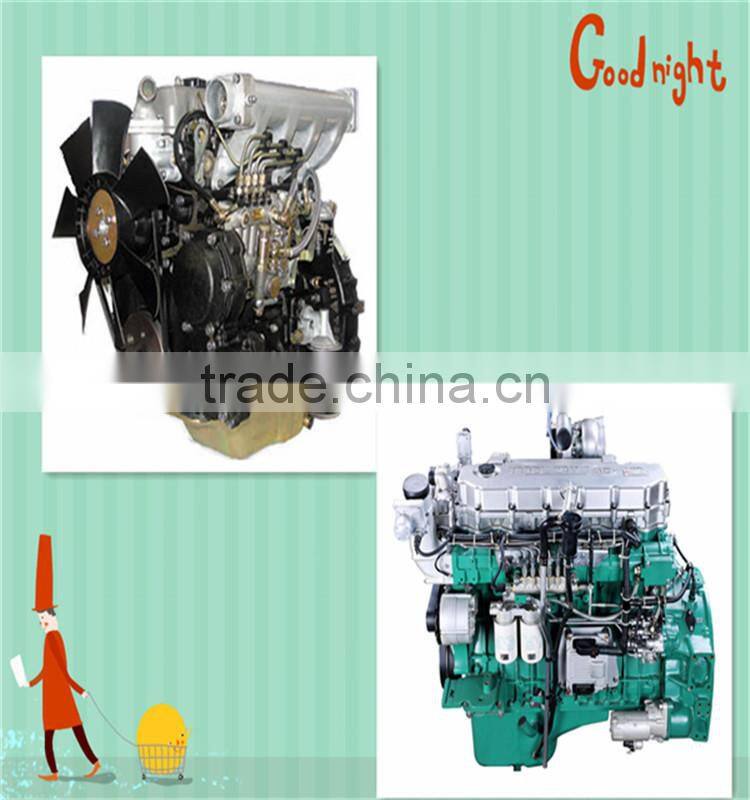

| Engine manuf-acture | Engine model | Rated power / Revolution at rated power Kw/rpm | Rated torque / Revolution at rated torque N.m/rpm | Engine displa-cement L | Fuel type | Adaptive forklift | Origin | |
| XINCHAI | C490BPG | 40/2650 | 160/1800 | 2.67 | Diesel | 2~3.5T | Chinese | |
| XINCHAI | A490BPG | 40/2650 | 160/1800 | 2.67 | Diesel | 2~3.5T | Chinese | |
| XINCHAI | A495BPG | 42/2650 | 174/1800 | 2.98 | Diesel | 3~3.5T | Chinese | |
| DACHAI (DEUTZ) | CA498 | 45/2500 | 190/1800 | 3.16 | Diesel | 2~3.5T | Chinese | |
| JMC | JX493 | 39/2500 | 165/1800 | 2.77 | Diesel | 2~3.5T | Chinese | |
| ISUZU | C240PKJ | 34.5/2500 | 139/2500 | 2.4 | Diesel | 2~3.5T | Japanese | |
| YANMAR | 4TNE98 | 42/2300 | 177.6/1700 | 3.319 | Diesel | 2~3.5T | Japanese | |
| NISSAN | K25 | 37.4/2300 | 176.5/1600 | 2.488 | Gasoline | 2~3.5 T | Japanese | |
| LUOTUO | LR4B3 | 57/2200 | 270/1560 | 4.33 | Diesel | 4~5T | Chinese | |
| XICHAI | CA4110 | 61/2200 | 305/1500 | 4.75 | Diesel | 4~5T | Chinese | |
| XINCHAI | 498BPG | 45/2500 | 193/1800 | 3.16 | Diesel | 4T | Chinese | |
| XINCHAI | 4D35G | 48/2200 | 230/1600 | 3.32 | Diesel | 4~5T | Chinese | |
| CHAOCHAI | CY6102 | 81/2000 | 353/1600 | 5.785 | Diesel | 5~10T | Chinese | |
| ISUZU | 6BG1 | 82.4/2000 | 416/1500 | 6.49 | Diesel | 5~10T | Japanese | |
| XICHAI | CA6110 | 83/2000 | 450/1500 | 7.127 | Diesel | 5~10T | Chinese | |
| PERKINS | 1104D | 55.9/2200 | 265/1700 | 4.4 | Diesel | 4~5T | English | |
| BAIYANG | 491 | 41/2800 | 161/1800 | 2.7 | Gasoline | 2~2.5T | Chinese | |
| YUCHAI | YC6B125 | 92/2200 | 460/1600 | 6.871 | Diesel | 10T | Chinese | |
| XICHAI | CA6110/125ZT | 117/2200 | 570/1600 | 7.127 | Diesel | 12T | Chinese | |
| YUCHAI | YC6A180Z | 140/2300 | 670/1600 | 7.255 | Diesel | 16T | Chinese | |

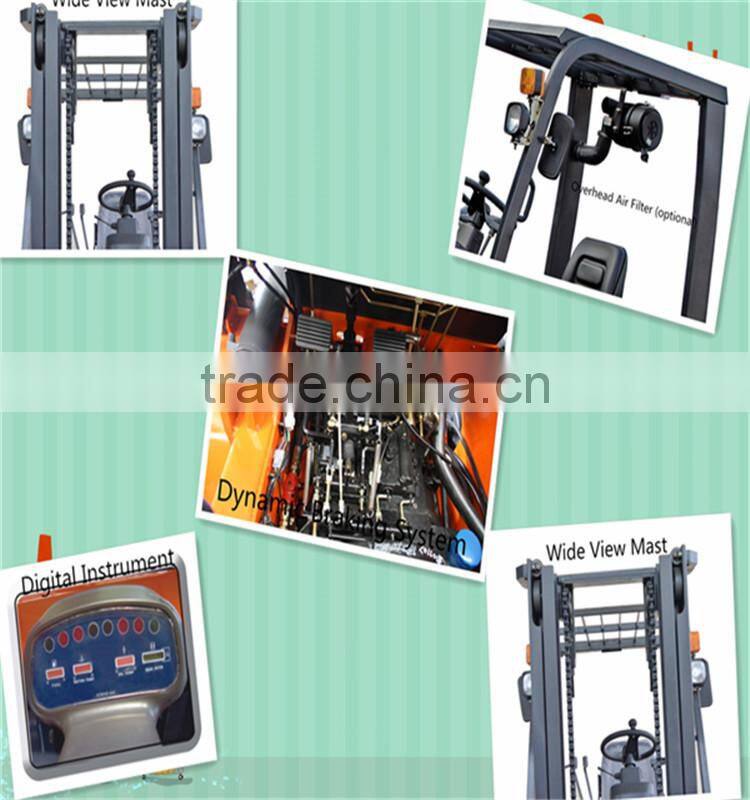

Forklift Attachments Conents

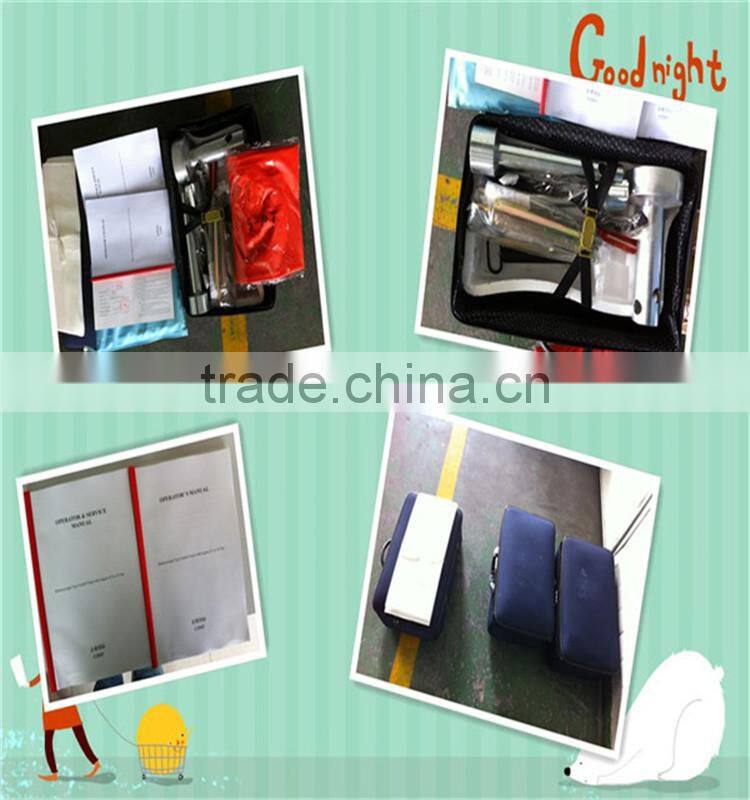

Photo Accessories

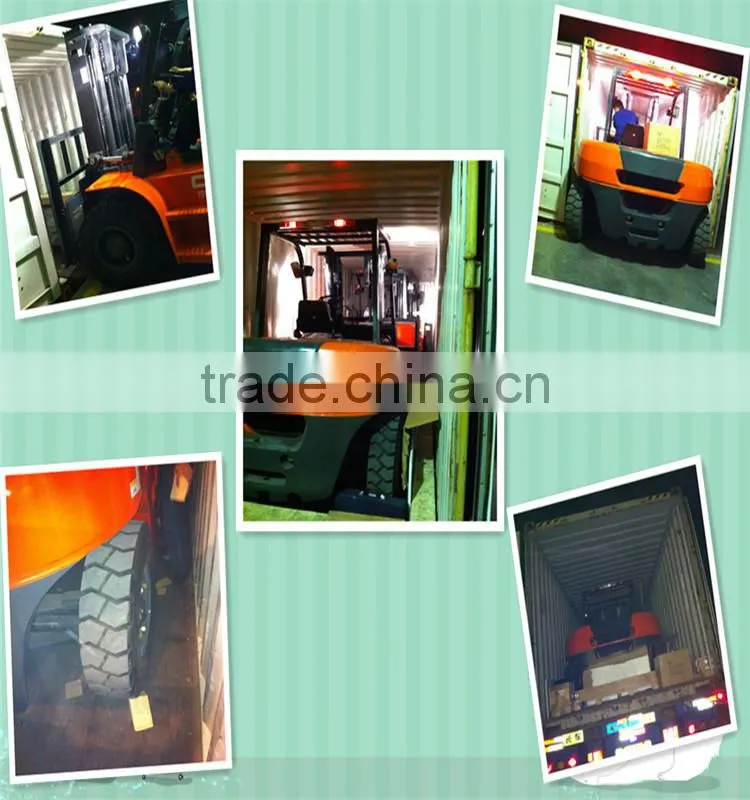

Delivery photos
Factory Photos

Our service
1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all JKDmachines. We dispatch technician to customer's
factory for installation and preoperation of machines. ( Customers only need to pay the airfare
and hotel )
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well,
you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same
as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's
materials for test. After making sure machine is the best performance, then make shipments.
If you need detailed information, please contact me!
We can also supply the assessories of forklift!
