Help CenterCheapest Price 1.8-3.5 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in China
Related Products
-
Cheapest Price 3 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in ChinaUS$ 1,000 - 100,000MOQ: 1 Set -
Cheapest Price 25 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in ChinaUS$ 100 - 100,000MOQ: 1 Set
-
Cheapest Price 5 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in ChinaUS$ 1,000 - 1,000,000MOQ: 1 Set
-
Cheapest Price 6 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in ChinaUS$ 100 - 100,000MOQ: 1 Set
-
Cheapest Price 6 Ton Diesel Forklift Truck/small Capacity Diesel Forklift Trucks/double Mast Forklift Made in ChinaUS$ 100 - 100,000MOQ: 1 Set
Introduction
The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc. We have the forklift series as below:
Diesel counterbalance forklift 1.8t-3.5t: CP(C)D18, CP(C)D20, CP(C)D25, CP(C)D30, CP(C)D35Diesel counterbalance forklift 4.0t-10.0t: CPCD40, CPCD45, CPCD50L, CPCD50, CPCD60, CPCD70,CPCD80,CPCD100Diesel counterbalance forklift 3.3t-4.0t (specialized for timber): CP(C)D33, CP(C)D37, CP(C)D39,CP(C)D40L,CP(C)D40L Diesel counterbalance forklift 4.0t-12.0t (specialized for stone): CPC40, CPC45, CPC50L, CPCD70,CPCD78,CPCD80, CPCD90, CPCD120;
Gasoline counterbalance forklift 2.0t-3.5t: CPQ(D)20, CPQ(D)25, CPQ(D)30, CPQ(D)35LPG counterbalance forklift 2.0t-3.5t: CPQY(D)20, CPQY(D)25, CPQY(D)30, CPQY(D)35LNG counterbalance forklift 2.0t-3.5t: CPT(D)20, CPT(D)25, CPT(D)30, CPT(D)35DC electric counterbalance forklift 1.0t - 3.5t: CPD10, CPD15, CPD20, CPD25, CPD30, CPD35
Semi-AC electric counterbalance forklift 1.0t - 3.5t: CPD10J, CPD15J, CPD20J, CPD25J, CPD30J, CPD35J; Full-AC electric counterbalance forklift 1.0t - 3.5t: CPD10AC, CPD15AC, CPD20AC, CPD25AC, CPD30AC, CPD35AC; Electric counterbalance forklift (triple-pivot): CPD16S, CPD18S, CPD20S, CPD05Electric reach forklift: CQD12, CQD16, CQD20, CQD25
Tractor series: QYCD20, QYCD25, QSD20, QSD30, QSD20AC, QSD30AC
Electric stacker series: CDDZ12, CDDZ16, CDDZ20, CDDZ25, CTDZ12, CTDZ16, CTDZ20, CTDZ25Van series: CBY-DF20, CBY-DF25, CBY-DF30, CBY-AC20, CBY-AC25, CBY-AC30, CBD15, CBD25, CBD30, CBD40 Etc.
Forklift Specification
| DIESEL COUNTERBALANCE FORKLIFT 1.8 - 3.5T | |||||||||
| Model | - | CPC(D)18 | CPC(D)20 | CPC(D)25 | CPC(D)30 | CPC(D)35 | |||
| Rated load lifting capacity | Kg | 1800 | 2000 | 2500 | 3000 | 3500 | |||
| Load center distance | mm | 500 | |||||||
| Lifting height | mm | 3000 | |||||||
| Maximum height at work | mm | 3965 | 4030 | 4260 | |||||
| Mast tilt angle(Forwards/Backwards) | 6/12 | ||||||||
| Hold under mast(min) | mm | 110 | |||||||
| Turning radius(min) | mm | 2050 | 2210 | 2280 | 2480 | 2520 | |||
| Travelling speed (max) | Unloaded | Km/h | 14.5 | 20 | |||||
| Loaded | 13.5 | 19.5 | |||||||
| Lifting speed (max) | Unloaded | mm/s | 590 | 500 | 470 | 390 | |||
| Loaded | 650 | 530 | 520 | 420 | |||||
| Lowering speeds(max) | mm/s | ≤600 | |||||||
| Gradeability under full load (max) | % | 20 | 20 | 18 | 15 | 15 | |||
| Dimensions | Length | Overall length | mm | 3250 | 3613 | 3678 | 3830 | 3890 | |
| Length (without fork) | 2330 | 2543 | 2608 | 2760 | 2815 | ||||
| Width | 1086 | 1160 | 1170 | 1230 | 1230 | ||||
| Height | Closed mast height | 2045 | 1995 | 1995 | 2075 | 2170 | |||
| Overhead guard height | 2050 | 2070 | 2070 | 2085 | 2085 | ||||
| Wheelbase | mm | 1400 | 1600 | 1700 | |||||
| Wheel tread | Front | mm | 890 | 970 | 970 | 1000 | |||
| Rear | 920 | 970 | 980 | ||||||
| Tire | Front | - |
6.5-10 -10PR |
7.00-12 -12PR |
7.00-12 -12PR |
28×9-15 -12PR |
28×9-15 -12PR |
||
| Rear | - |
5.00-8 -10PR |
6.00-9 -10PR |
6.00-9 -10PR |
6.50-10 -10PR |
6.50-10 -10PR |
|||
| Engine | Model | - | NB485BPG | Xinchai 490BPG | Xinchai 490BPG | Xinchai 490BPG | Xinchai 495BPG | ||
| Displacement | L | 2.67 | 2.97 | ||||||
| Rated power | Kw | 30/2600 | 40 | 42 | |||||
| Revolution at rated power | Rpm | 131/1800 | 2650 | ||||||
| Maximum torque | Nm | 160 | 174 | ||||||
| Revolution at maximum torque | rpm | 1800 | |||||||
| Fuel tank capacity | L | 45 | 58 | ||||||
| Fork size(LxWxT) | mm |
920X 100X40 |
1070× 120×40 |
1070× 120×45 |
1070× 125×45 |
1070× 125×50 |
|||
| Total weight | Kg | 2900 | 3400 | 3780 | 4250 | 4720 | |||

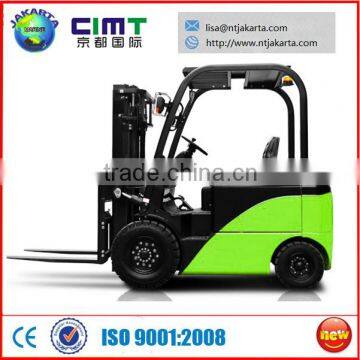

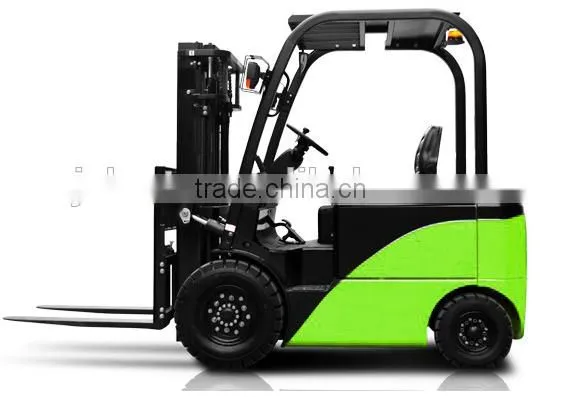

Forklift Product picture

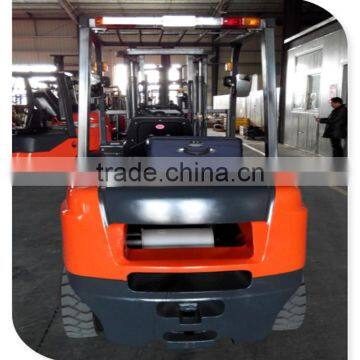

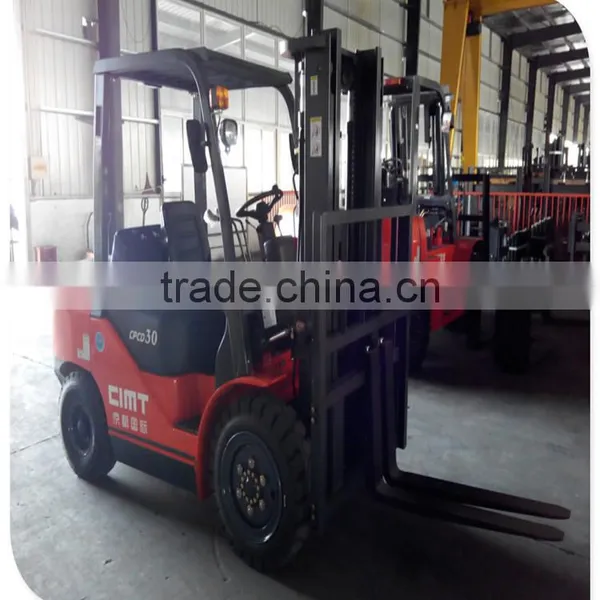

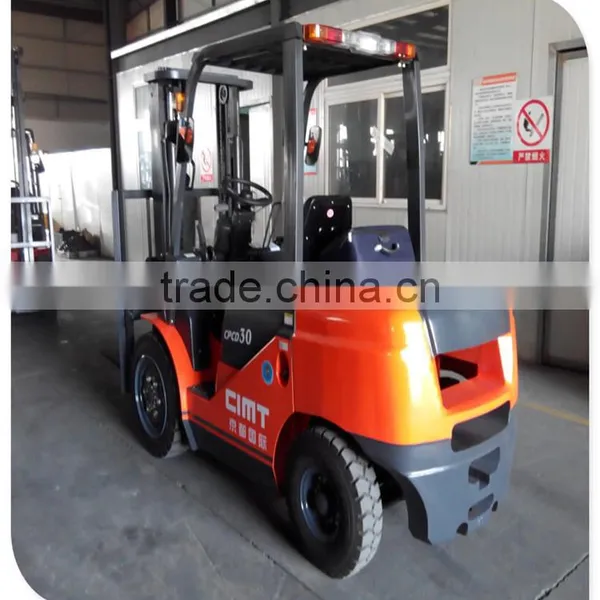

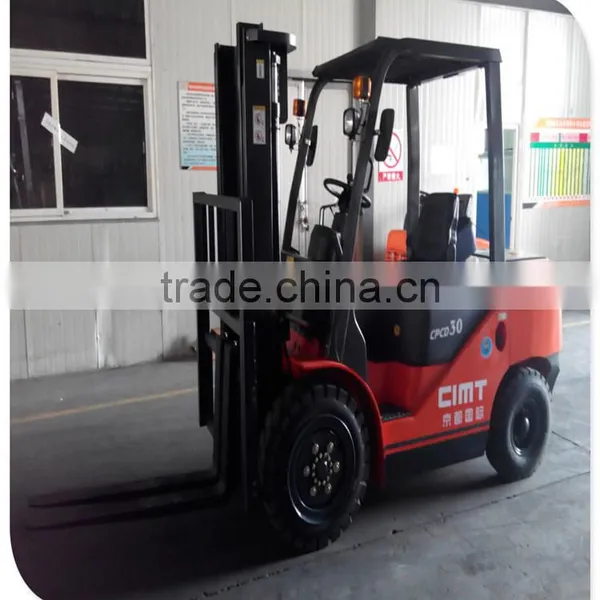

Forklift Photo details
Forklift Delivery photos
Forklift Attachments Contents
| Standard configuration (L x W x T) | Width | Thickness | Length | Adaptive forklift | ||||||||||
| mm | mm | mm | mm | - | ||||||||||
| 920X100X30 | 100 | 30 | 920 | 1070 | 1220 | 1370 | 1520 | 1t | ||||||
| 920X100X35 | 100 | 35 | 920 | 1070 | 1220 | 1370 | 1520 | 1.5t | ||||||
| 1070X120X40 | 120 | 40 | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2t | ||||
| 1070X120X45 | 120 | 45 | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2.5t | ||||
| 1070X125X45 | 125 | 45 | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 3t,3.3t | ||||
| 1070X125X50 | 125 | 50 | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 3.5t, 3.7t,3.9t | ||||
| 1070X150X50 | 150 | 50 | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 4t(small),4.5t | ||||
| 1220X150X50 | 150 | 50 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 5t | |
| 1220X150X60 | 150 | 60 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 6t | |
| 1220X150X65 | 150 | 65 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 7t | |
| 1220X170X70 | 170 | 70 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 8t | |
| 1220X175X80 | 175 | 80 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 10t | |
| 1820X250X100 | 250 | 100 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 16t | |||||
| 1400X150X70 | 150 | 70 | 1400 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 7t(Stone) 7.8t(Stone) | ||
| 1400X150X70 | 150 | 70 | 1400 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 8t(Stone) | ||
| 1400X165X80 | 165 | 80 | 1400 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 9t(Stone) | ||
| 1370X220X90 | 220 | 90 | 1370 | 1520 | 1670 | 1820 | 1970 | 2120 | 2270 | 2420 | 2570 | 12t(Stone) | ||
Forklift Factory photos
