Introduction
The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.
Our main markets are Southeast Asia, Mid East and Africa. 2. We have obtained the ISO 9001:2008, ISO 14001:2004 and ISO 18001:2007 management system certification and CE certification. 3.OEM and ODM service are provided.
Export Market Distribution
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | confidential
| 0.23 |
Eastern Europe | 0.96 | |
Southeast Asia | 1.51 | |
Africa | 1.19 | |
Oceania | 0.27 | |
Mid East | 1.83 | |
Eastern Asia | 0.03 | |
Southern Europe | 0.06 | |
South Asia | 0.3 | |
Domestic Market | 93.62 |
Forklift Specification
Model | - | CPCD70 | |||
Rated load lifting capacity | Kg | 7000 | |||
Load center distance | mm | 600 | |||
Lifting height | mm | 3000 | |||
Maximum height at work | mm | 4420 | |||
Mast tilt angle(Forwards/Backwards) | 6/12 | ||||
Hold under mast(min) | mm | 170 | |||
Turning radius(min) | mm | 3370 | |||
Travelling speed (max) | Unloaded | Km/h | 28 | ||
Loaded | 26 | ||||
Lifting speed (max) | Unloaded | mm/s | 400 | ||
Loaded | 550 | ||||
Lowering speeds(max) | mm/s | ≤600 | |||
Gradeability under full load (max) | % | 20 | |||
Dimensions | Length | Overall length | mm | 4760 | |
Length (without fork) | 3540 | ||||
Width | 1995 | ||||
Height | Closed mast height | 2500 | |||
Overhead guard height | 2450 | ||||
Wheelbase | mm | 2250 | |||
Wheel tread | Front | mm | 1470 | ||
Rear | 1700 | ||||
Tire | Front | - | 8.25-15-14PR | ||
Rear | - | 8.25-15-14PR | |||
Engine | Model | - | Xichai 6110 | ||
Displacement | L | 7.127 | |||
Rated power | Kw | 83 | |||
Revolution at rated power | Rpm | 2000 | |||
Maximum torque | Nm | 450 | |||
Revolution at maximum torque | rpm | 1450 | |||
Fuel tank capacity | L | 100 | |||

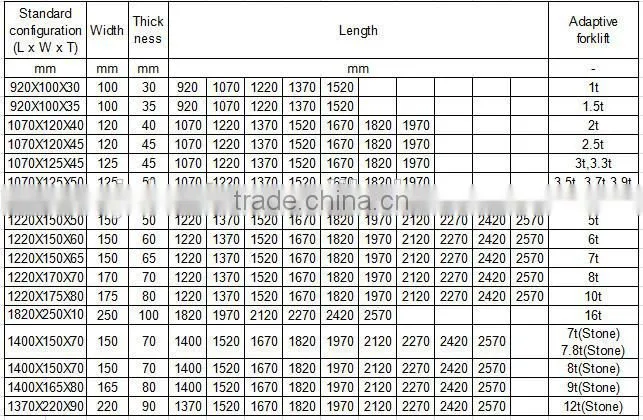

Fork size(LxWxT) | mm | 1220×150×65 | |||
Total weight | Kg | 9620 | |||

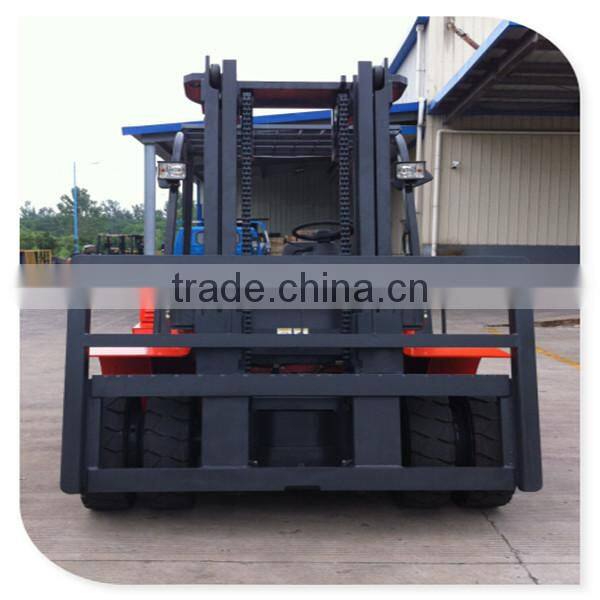

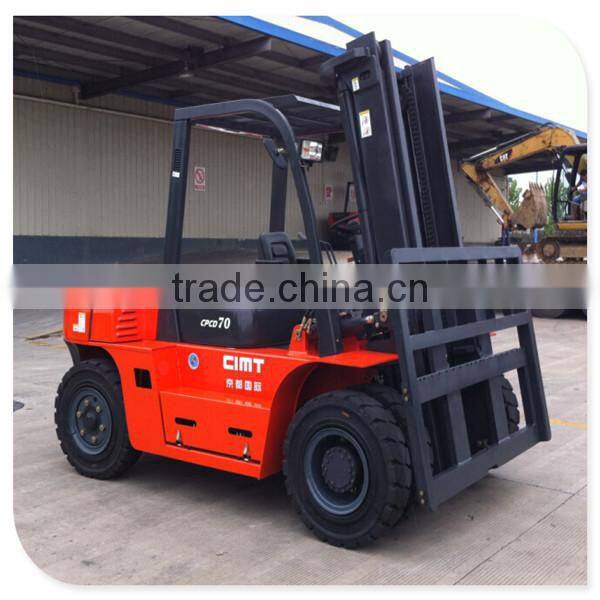

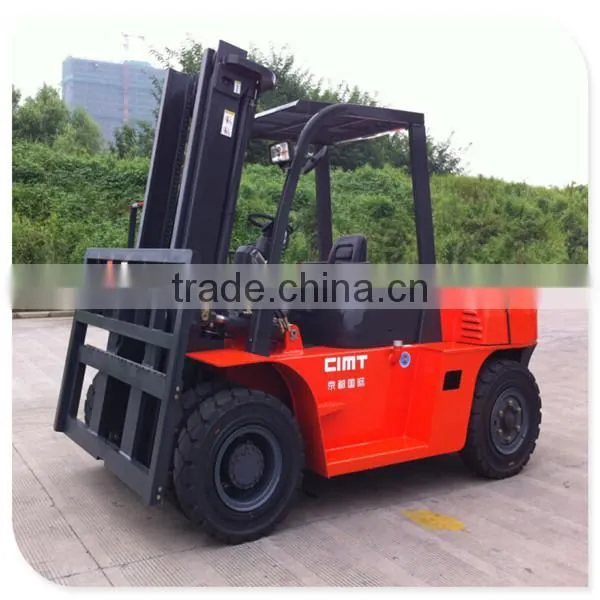

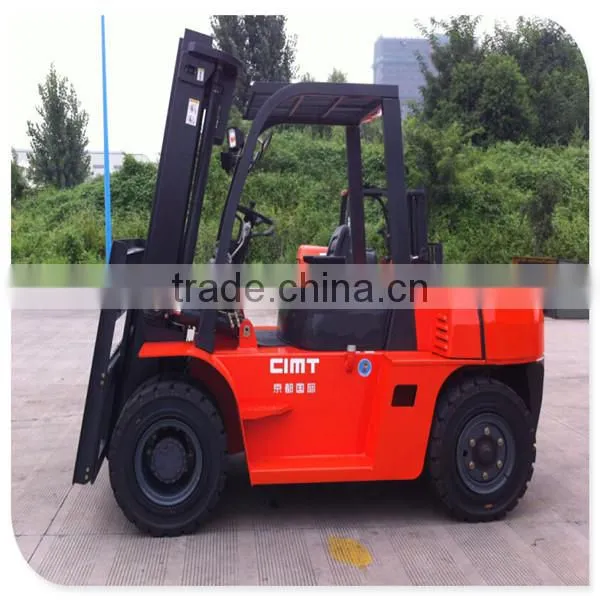

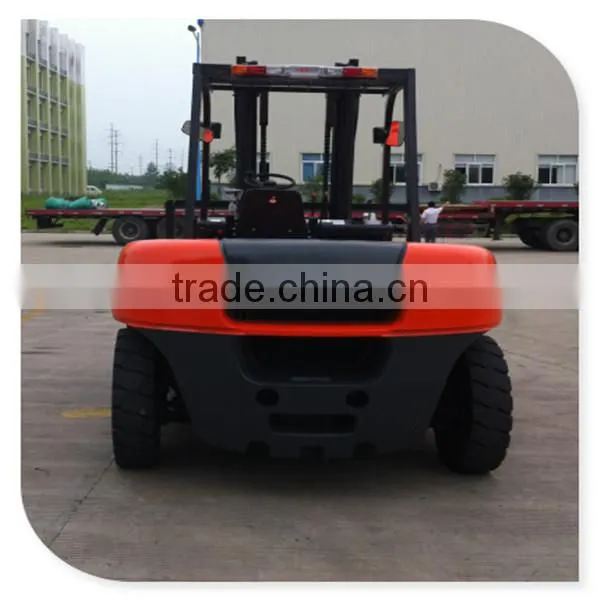

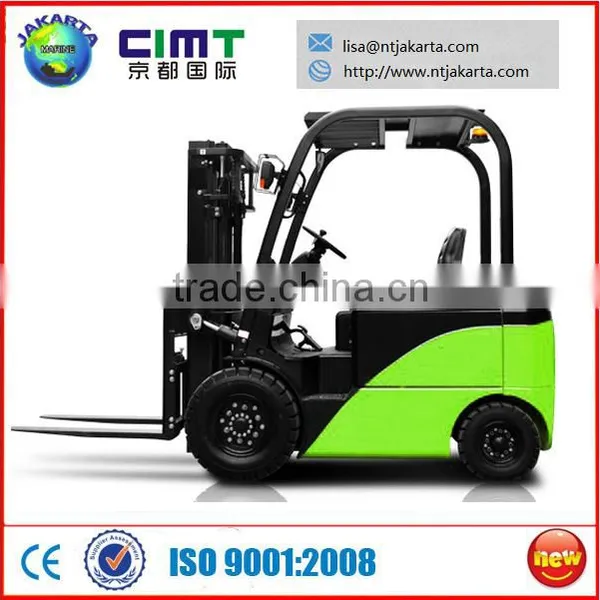

Forklift Product Picture

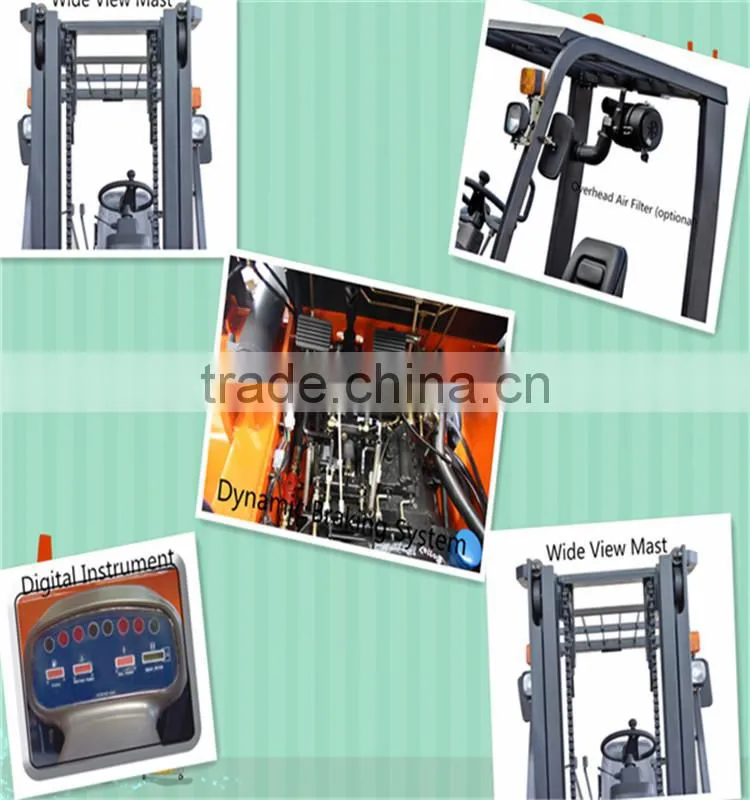

Forklift Photo Details

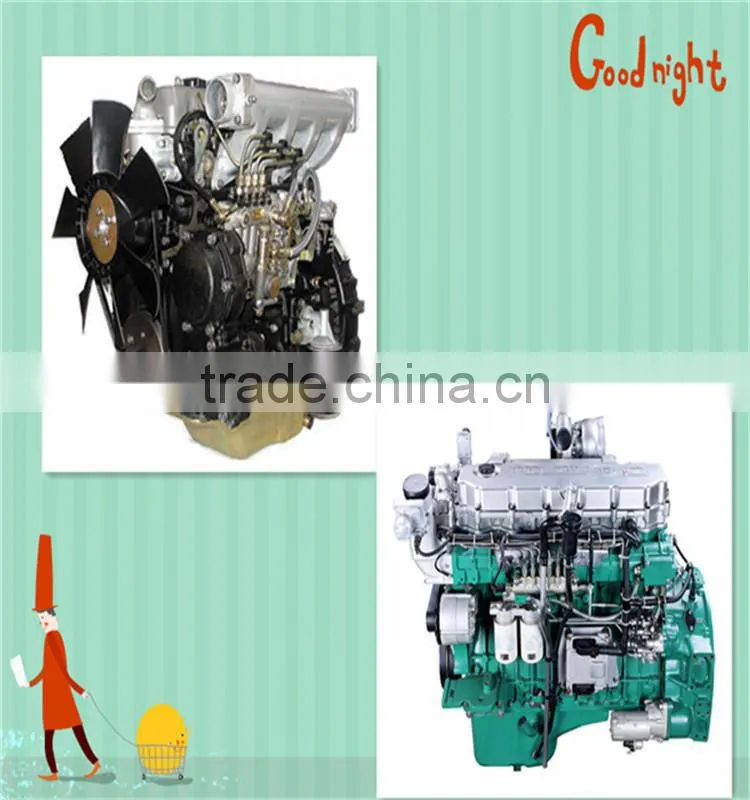

| Engine manufacture | Engine model | Rated power / Revolution at rated power Kw/rpm | Rated torque / Revolution at rated torque N.m/rpm | Engine displacement L | Fuel type | Adaptive forklift | Origin | |
| XINCHAI | C490BPG | 40/2650 | 160/1800 | 2.67 | Diesel | 2~3.5T | Chinese | |
| XINCHAI | A490BPG | 40/2650 | 160/1800 | 2.67 | Diesel | 2~3.5T | Chinese | |
| XINCHAI | A495BPG | 42/2650 | 174/1800 | 2.98 | Diesel | 3~3.5T | Chinese | |
| DACHAI (DEUTZ) | CA498 | 45/2500 | 190/1800 | 3.16 | Diesel | 2~3.5T | Chinese | |
| JMC | JX493 | 39/2500 | 165/1800 | 2.77 | Diesel | 2~3.5T | Chinese | |
| ISUZU | C240PKJ | 34.5/2500 | 139/2500 | 2.4 | Diesel | 2~3.5T | Japanese | |
| YANMAR | 4TNE98 | 42/2300 | 177.6/1700 | 3.319 | Diesel | 2~3.5T | Japanese | |
| NISSAN | K25 | 37.4/2300 | 176.5/1600 | 2.488 | Gasoline | 2~3.5 T | Japanese | |
| LUOTUO | LR4B3 | 57/2200 | 270/1560 | 4.33 | Diesel | 4~5T | Chinese | |
| XICHAI | CA4110 | 61/2200 | 305/1500 | 4.75 | Diesel | 4~5T | Chinese | |
| XINCHAI | 498BPG | 45/2500 | 193/1800 | 3.16 | Diesel | 4T | Chinese | |
| XINCHAI | 4D35G | 48/2200 | 230/1600 | 3.32 | Diesel | 4~5T | Chinese | |
| CHAOCHAI | CY6102 | 81/2000 | 353/1600 | 5.785 | Diesel | 5~10T | Chinese | |
| ISUZU | 6BG1 | 82.4/2000 | 416/1500 | 6.49 | Diesel | 5~10T | Japanese | |
| XICHAI | CA6110 | 83/2000 | 450/1500 | 7.127 | Diesel | 5~10T | Chinese | |
| PERKINS | 1104D | 55.9/2200 | 265/1700 | 4.4 | Diesel | 4~5T | English | |
| BAIYANG | 491 | 41/2800 | 161/1800 | 2.7 | Gasoline | 2~2.5T | Chinese | |
| YUCHAI | YC6B125 | 92/2200 | 460/1600 | 6.871 | Diesel | 10T | Chinese | |
| XICHAI | CA6110/125ZT | 117/2200 | 570/1600 | 7.127 | Diesel | 12T | Chinese | |
| YUCHAI | YC6A180Z | 140/2300 | 670/1600 | 7.255 | Diesel | 16T | Chinese | |

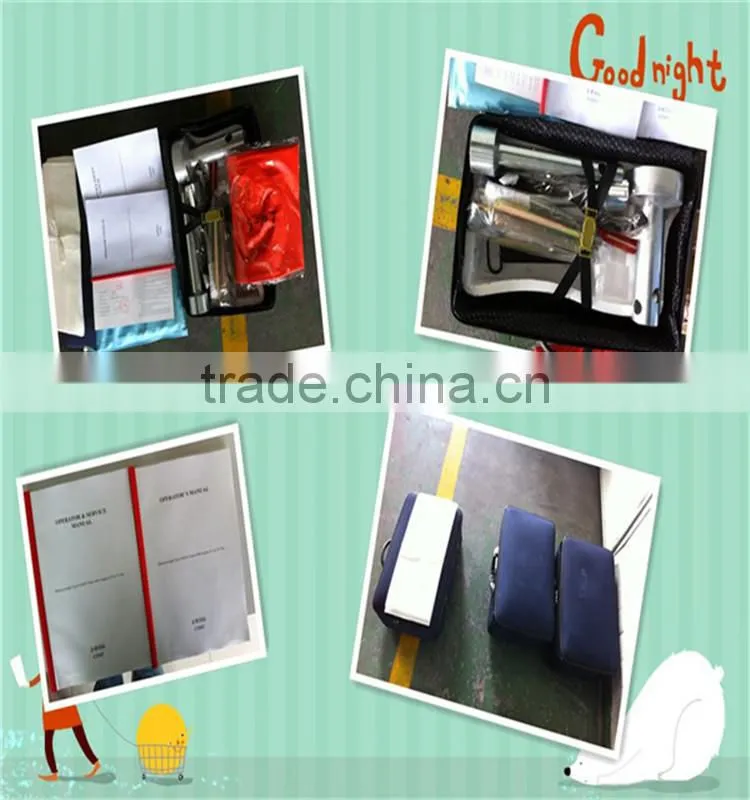

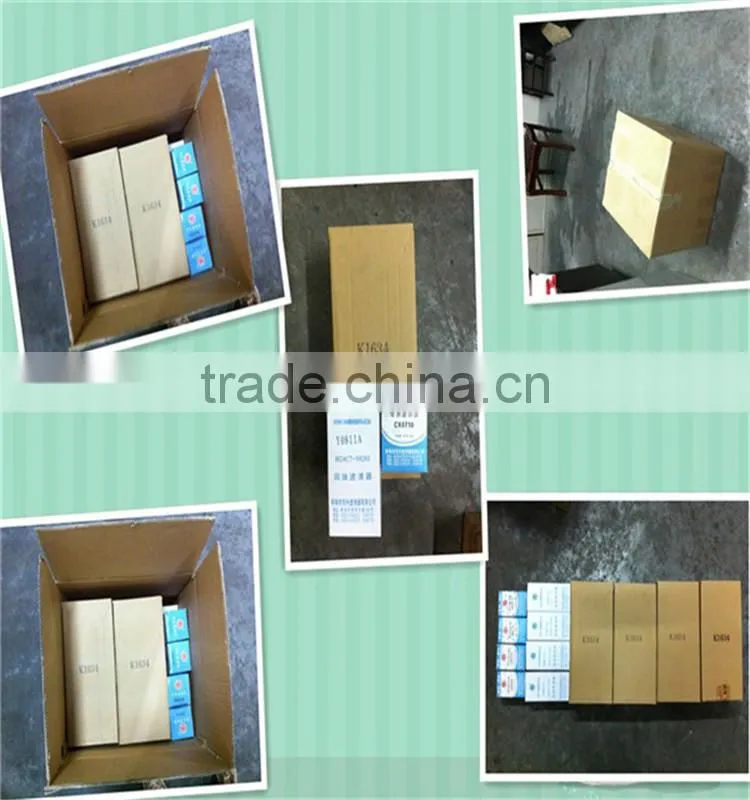

Forklift Photo Accessories

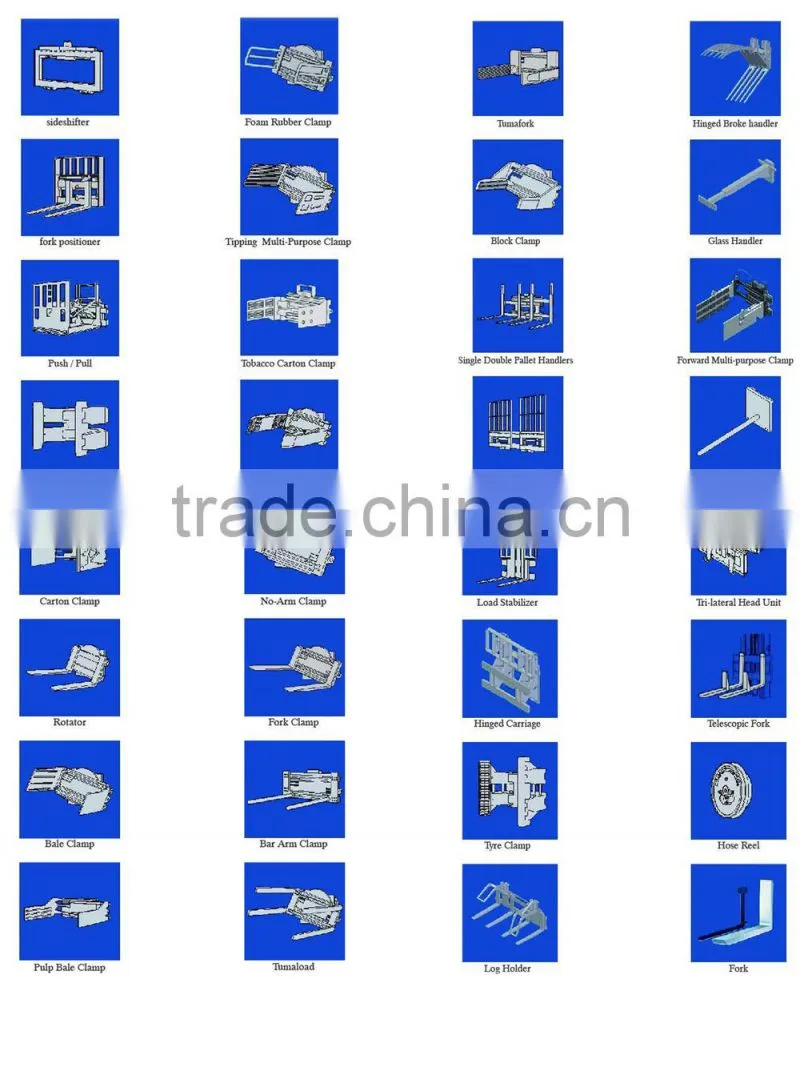

Forklift Attachments Conents

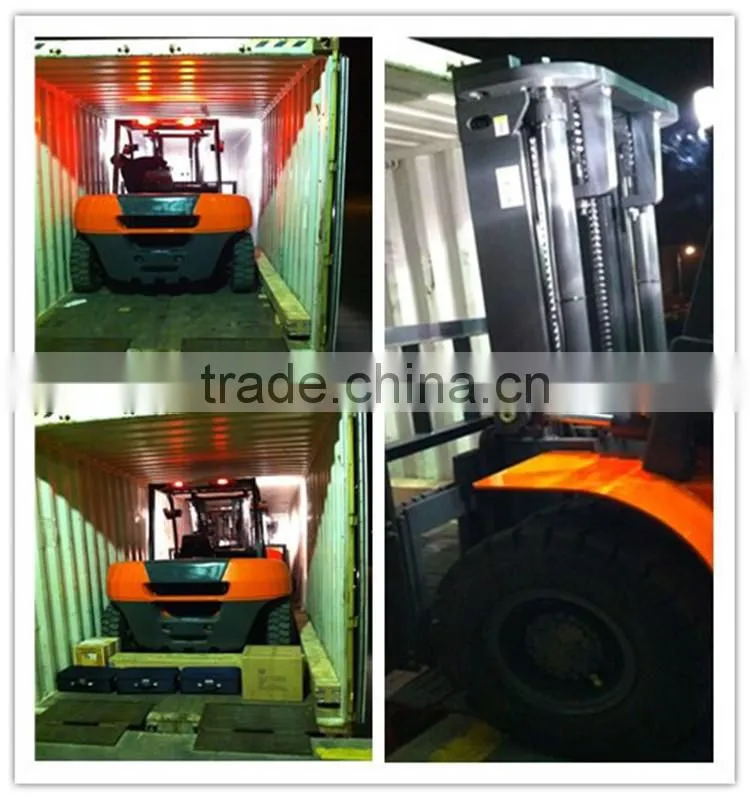

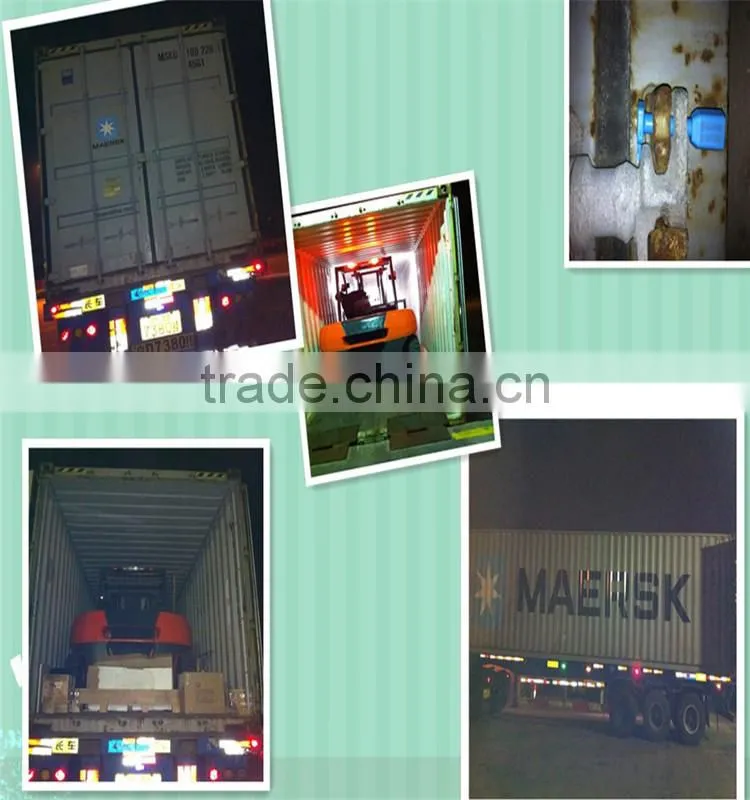

Forklift Delivery photos

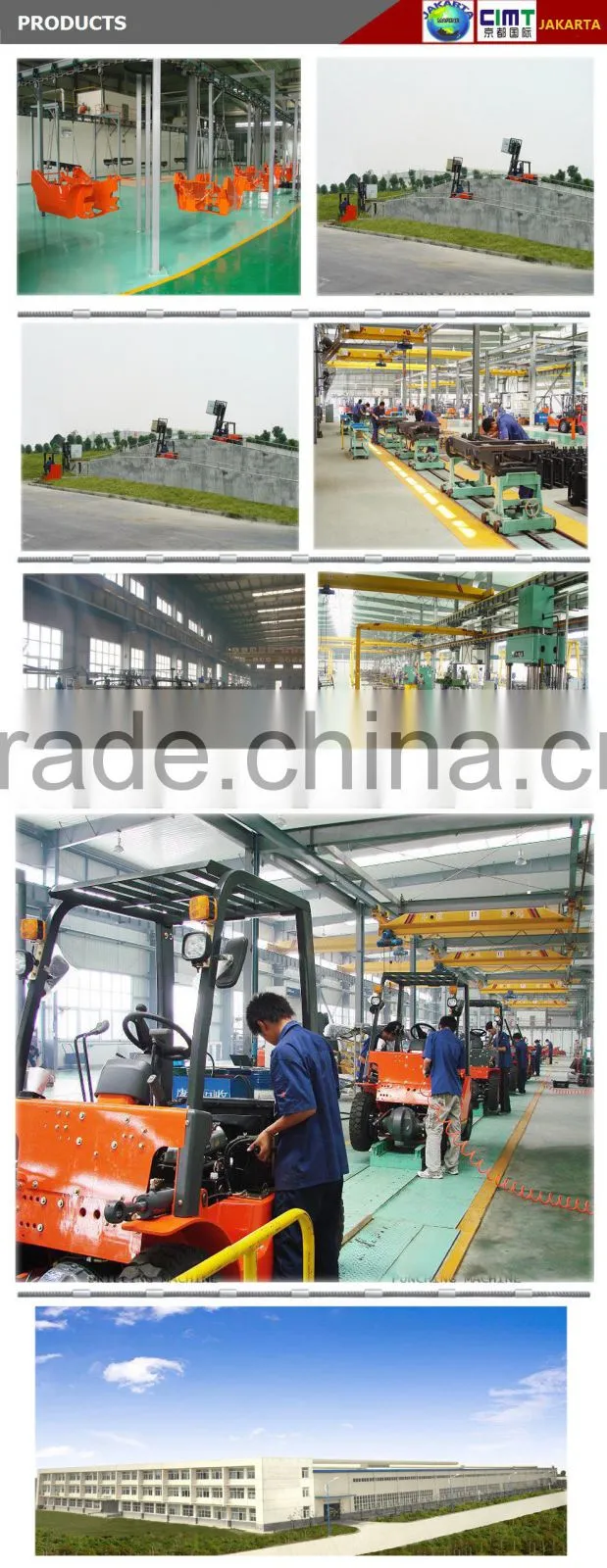

Forklift Factory Photos
Our Professional After-sales Team
