Introduction
The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.
Model |
Unit |
CPCD250-VZ-12 Ⅱ |
|||
Power Type |
|
Diesel |
|||
Operator Type |
|
Rider Seated |
|||
04-06-7150 Engine(Fuel tank) |
mm |
330 |
|||
Battery |
(V/Ah) |
24/150 |
|||
Service Brake |
|
Hydraulic |
|||
Parking Brakes |
|
Pliers |
|||

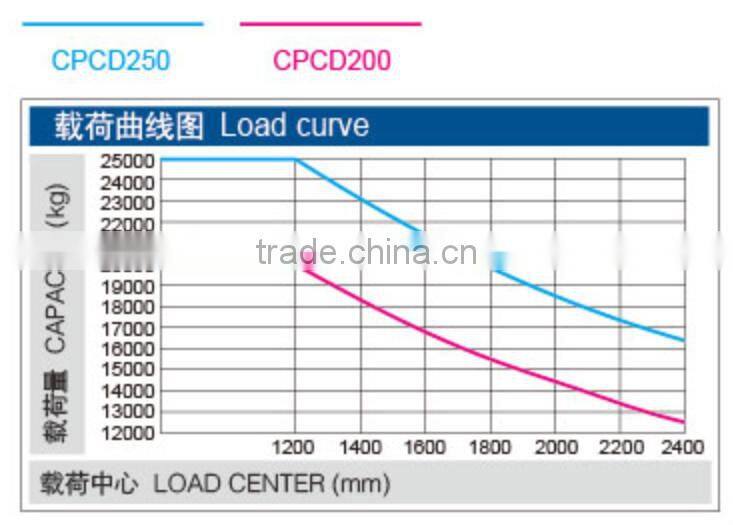

Load capacity |
Kg |
25000 |
|||
Load center |
mm |
1200 |
|||
Lifting height |
mm |
4000 |
|||
Mast extended height (with backrest) |
mm |
5995 |
|||
Mast tilt angle (Forwards/Backwards) |
6/10 |
||||
Hold under mast (Min.) |
mm |
280 |
|||
Turning radius (Min.) |
mm |
5920 |
|||
Travelling speed (Max.) |
Loaded / Unloaded |
Km/h |
26/24 |
||
Lifting speeds (Max.) |
Loaded / Unloaded |
mm/s |
350/320 |
||
Lowering speeds(Max.) |
mm/s |
310 |
|||
Gradeability under full load (Max.) |
% |
30 |
|||

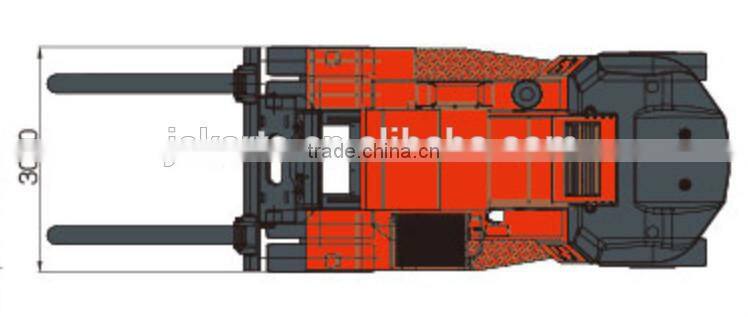

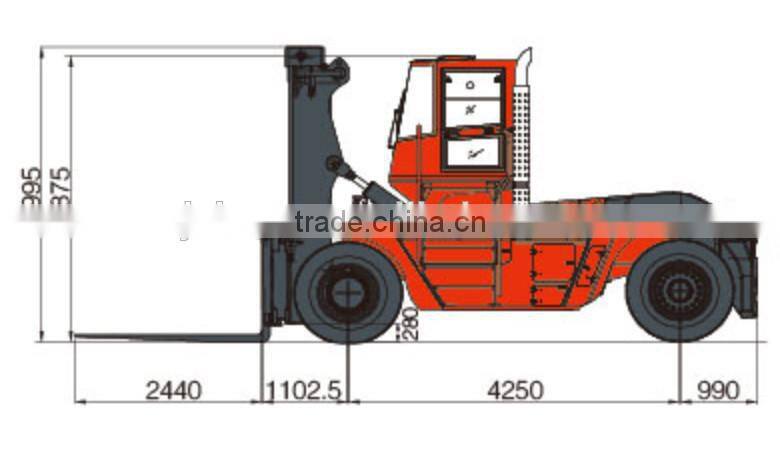

Dimensions |
Length |
With for |
mm |
8782 |
|
Width |
3040 |
||||
Height |
Mast lowered height |
3995 |
|||
Overhead guard height |
3875 |
||||
Wheelbase |
mm |
4250 |
|||
Wheel tread |
Front / Rear |
mm |
2200/2510 |
||
Tire |
Front/ Rear |
- |
14.00-24-28PR /14.00-24-28PR |
||
Engine |
Model |
- |
VOLVO TAD721VE |
||
Rated power / r.p.m |
Kw/r.p.m |
195/2300 |
|||
Rated torque / r.p.m |
Nm/r.p.m |
900/1400 |
|||
Fuel tank capacity |
L |
7.15 |
|||
Fork size (L x W x T) |
mm |
2440*250*110 |
|||
Total weight |
Kg |
36500 |
|||
Lateral Fork Adjustment(Outside of Forks) |
mm |
820-2700 |
|||
Max.Sideshift Distance |
mm |
±470 |
|||
Gear Box |
mm |
ZF 3WG211 |
|||
VOLVO Diesel engine, comply to EPA standards on None-road application, with genuine attached parts to guarantee the normal use and maintenance
ZF Transmission system. This transmission system integrated various control software in one controller, easy to handle. It can also be diagnosed easily with the diagnostic machine interface.
Kessler Front Axle. This Axle has high load capacity and brake torque to be safe and reliable enough. Wet type brake is water-resistant and dust-resistant and maintenance free.
Parker Main Hydraulic system. Using prior-steering strategy Pre-open valve on Multicontrol Valve to separate the operation level and control valve to realize remote control. It can be operated with comfort and safety and release the tension of the driver.
The mast is very strong and durable, integral side-shifting fork positioner. It’s unnecessary to fit additional side shift.

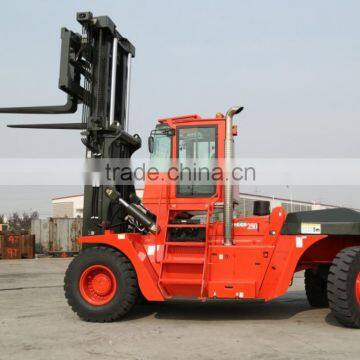

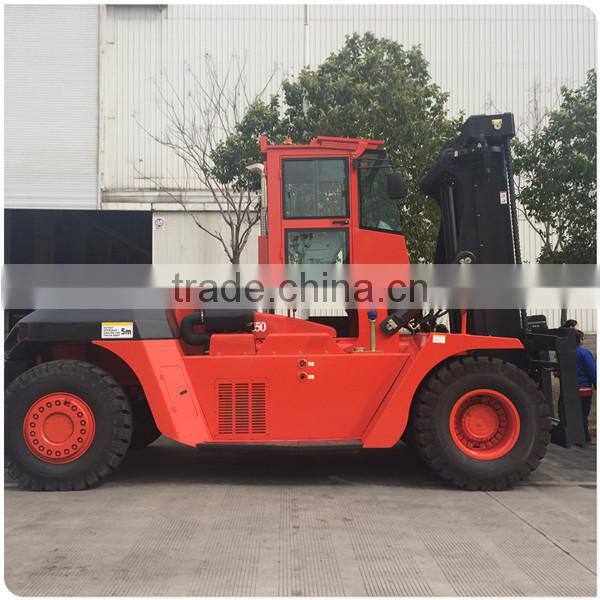

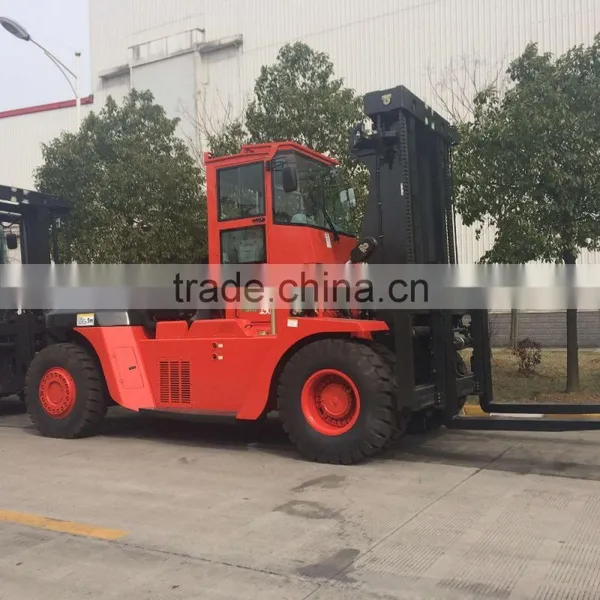

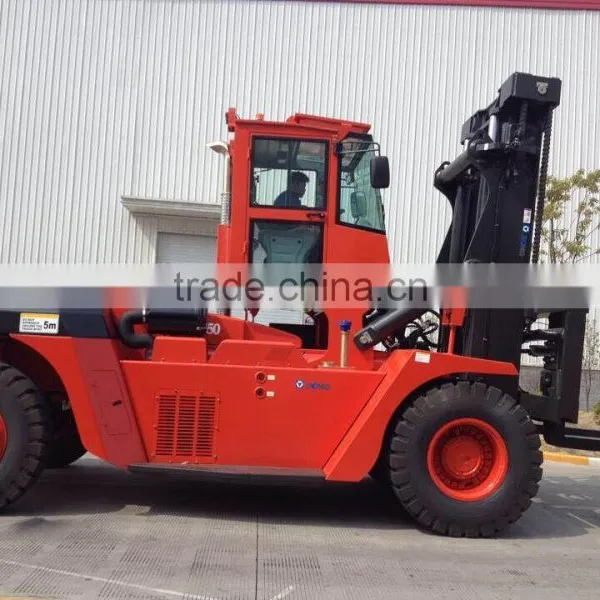

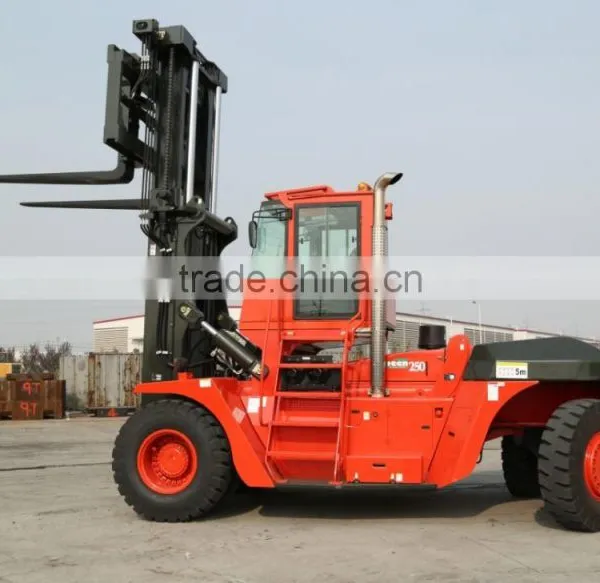

Product picture

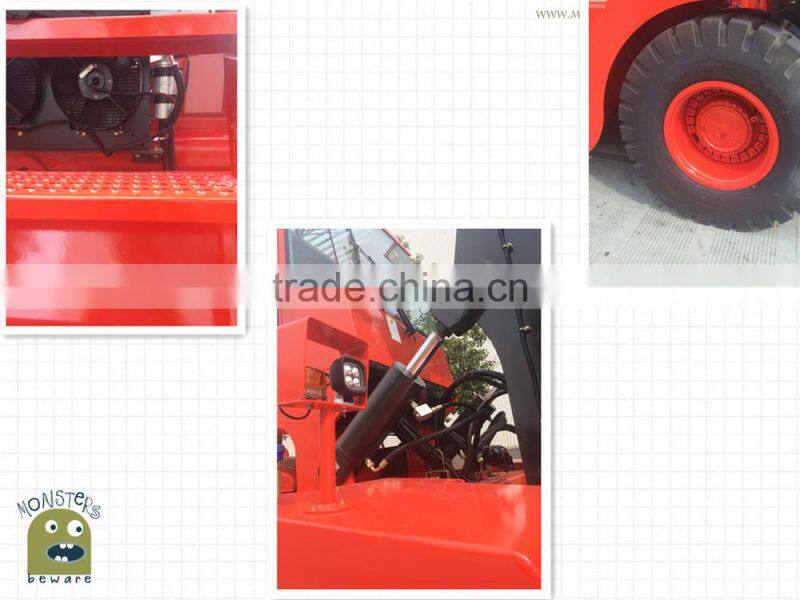

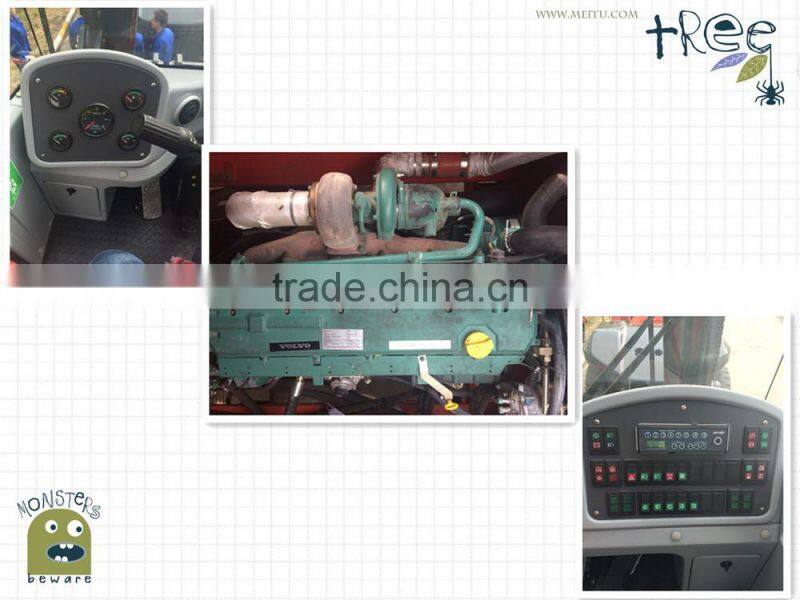

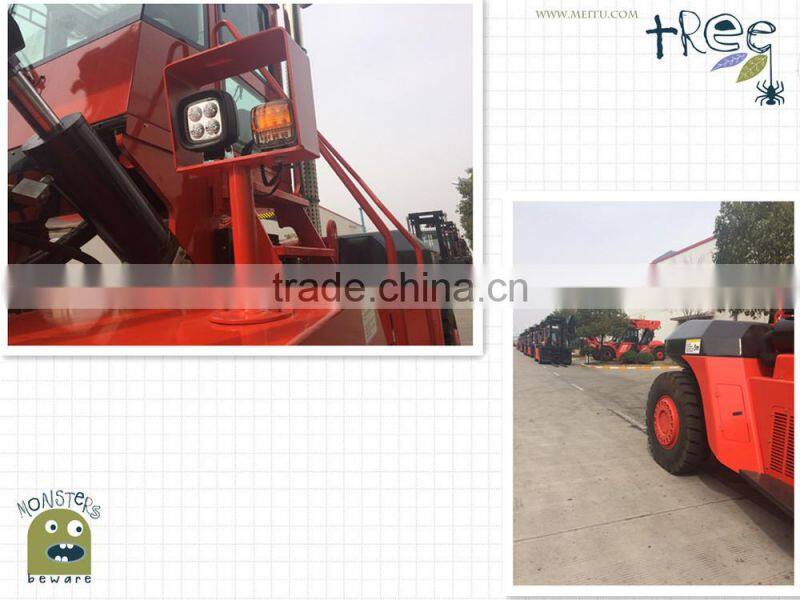

Photo details
Certificate

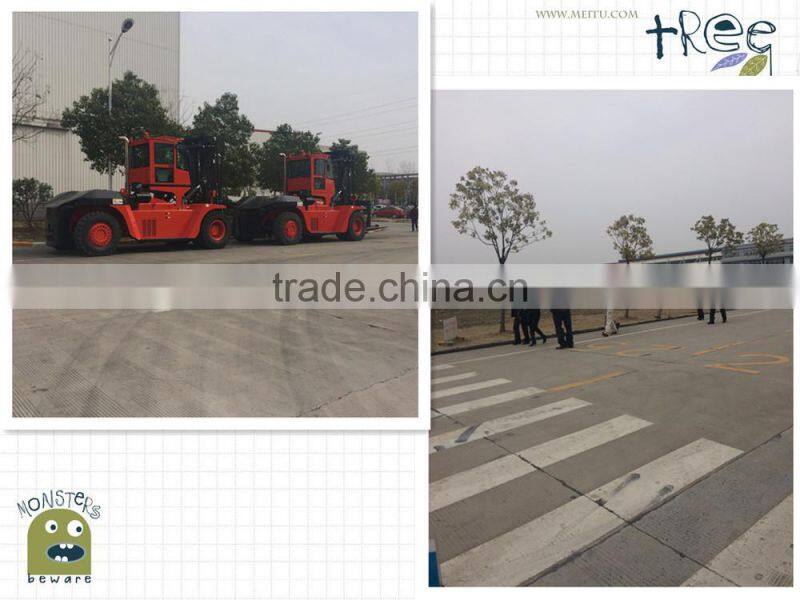

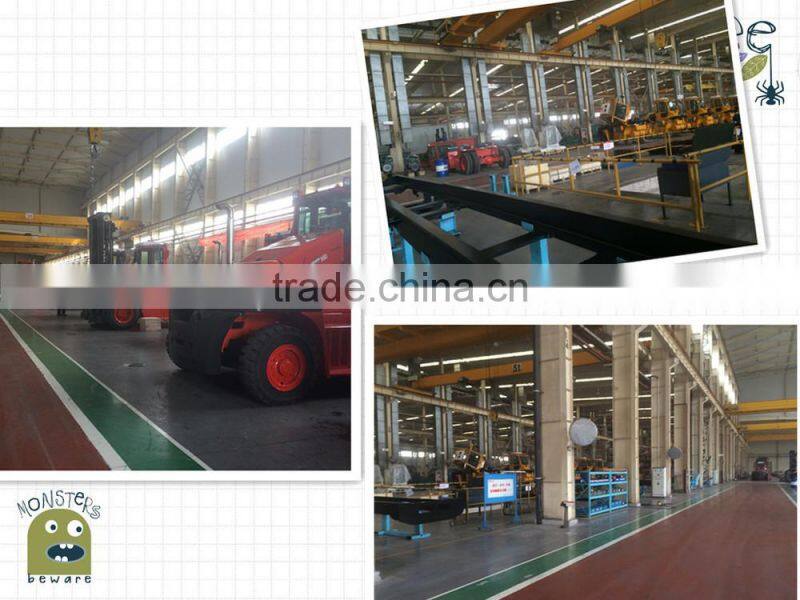

Factory
Export Market Distribution
Market |
Revenue(Previous Year) |
Total Revenue (%) |
South America |
confidential
|
0.23 |
Eastern Europe |
0.96 |
|
Southeast Asia |
1.51 |
|
Africa |
1.19 |
|
Oceania |
0.27 |
|
Mid East |
1.83 |
|
Eastern Asia |
0.03 |
|
Southern Europe |
0.06 |
|
South Asia |
0.3 |
|
Domestic Market |
93.62 |
Production Machinery:
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
Condition |
CNC Flame Cutting Machine |
BODA |
3 |
3 |
Acceptable
|
Radial Drilling Machine |
ZJ & Z3050 |
4 |
4 |
|
Number Control Sheet Metal Press Brake |
YAWEI, YW & WEH63/2500, PB-110-3100 |
2 |
4 |
|
Sheering Machine |
JXZX, YAWEI & Q11-13X2500H, QC12Y-6X2500 |
2 |
3 |
|
Tube Bending Machine |
GM120 |
1 |
7 |
|
Hydraulic Press Machine |
HFDY & YH32-500, YH32-315, YHD41-160, YHD41-100 |
5 |
6 |
|
Door Frame Welding Positioner |
No Information |
5 |
4 |
|
Welding Machine |
Panasonic & KR350, KR500, KR600, ZX7-200Y |
42 |
4 |
|
Band Saw |
GY4235 |
2 |
4 |
