Help CenterHeavy Duty Root Rake Brush Grapple for Front End Loader 950H With Quick Attach
Related Products
-
Cheap Equipos Mineria 80HP Diesel Underground Mini Scooptram for SaleUS$ 12,000 - 15,000MOQ: 1 Set -
2 Cubic Bucket 3.1 Meters Dump Height 4 Ton Front End Loader Prices AS940FUS$ 27,000 - 28,000MOQ: 1 Set
-
ZL50G Wheel rc Loader for Sal Tunnel 162kw Weichai EngineUS$ 35,000 - 39,000MOQ: 1 Set
-
4ton Wheel Loader ZL40 Price USD 180HP Engine AS940FUS$ 25,000 - 32,000MOQ: 1 Set
-
AS940F 4ton Wheel Loader Price With 180HP Engine and 2m3 Bucket ZL40US$ 25,000 - 32,000MOQ: 1 Set

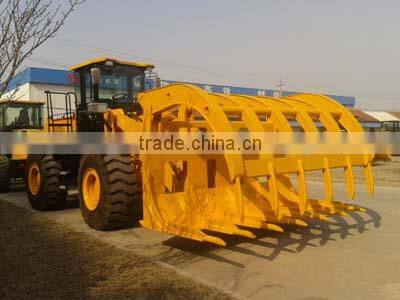

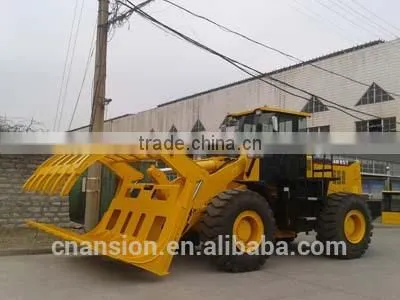

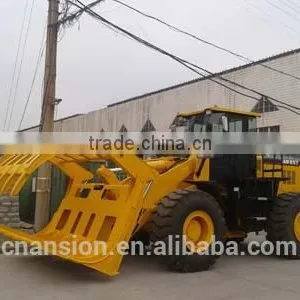

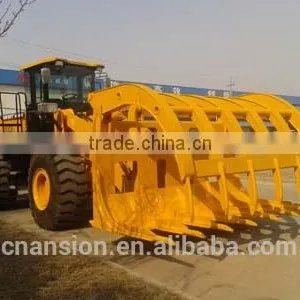

950H Front End Loader mounted brush root rake grapple
1. 162kW powerful diesel SHANGCHAI engine for dust and heavy working area

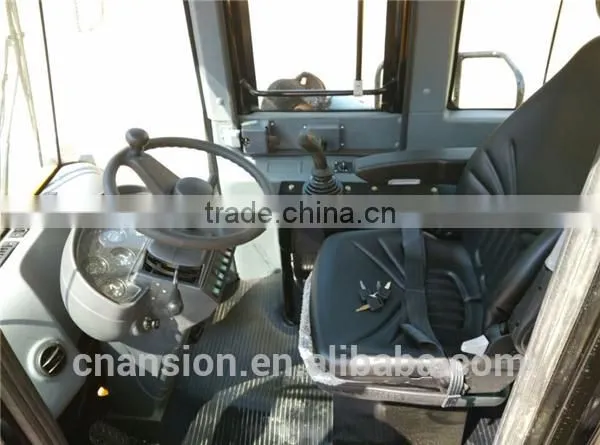

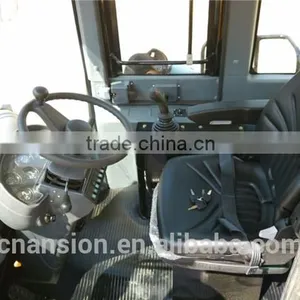

2. Cab with air contioner and fan , heater for optional , safe and comfortable
3. Heavy-duty 4x4 driving axles for all kinds of construction and mine works
4. 23.5-25 special construction tyres for rough terrain road condition
5. Planetary transmission with 2 forward and 1 reverse gear, more powerful and easy-operation
6. 5 tons capacity heavy duty brush root grapple rake bucket
1 | rated load | 5000kg |
2 | overall weight | 16700kg |
3 | rated bucket capacity | brush root grapple rake bucket |
4 | maximum tractive force | 152KN |
5 | maximum breakout force | 155KN |
6 | maximum grade ability | 30o |
7 | maximum dump height | 3190mm |
8 | maximum dump reach | 1250mm |
9 | overall dimension (L×W×H) | 7920×3050×3400mm |
10 | minimum turning radius | 6640mm |
11 | model | weichai shangchai cummins |
12 | type | Four stroke water cooling injection pressure boost |
13 | No. of cylinder-bore/stroke | 6-114×135mm |
14 | rated power | 162kw--2200r/min |
15 | maximum torque | 980N.m/1500rpm |
16 | min fuel-consume ratio | ≤215g/kw.h |
17 | torque converter | Hydraulic |
18 | Transmission model | Planetary |
19 | gear shift | 2forward shift 1reverse shift |
20 | maximum speed | 30km/h |
21 | main reducing spiral
| bevel gear grade 1reduction |
22 | decelerating mode | planetary reduction,grade 1 |
23 | wheel base (mm) | 3200mm |
24 | wheel tread | 2250mm |
25 | minimum ground clearance | 480mm |
26 | system working pressure | 18MPa |
27 | boom lifting time | 5.7s |
28 | total time | 9.5±0.5s |
29 | fuel tank capacity | 270L |
30 | function of leveling automatically | yes |
31 | service brake | air over hydraulic disc brake on 4 wheels |
32 | parking brake | manual parking brake |
33 | type specification | 23.5-25 |
34 | front tyre pressure | 0.4Mpa |
35 | rear tyre pressure | 0.35Mpa |
Top Wheel Loader Manufacturer with 3300 m3 working plant
Our business includes wheel loaders, backhoe loaders, forklift trucks and farm tractors manufacturing and exporting.
We focus on construction and farm machinery manufacturing and exporting for more than 20 years and
sincerely hope to be your reliable supplier.
