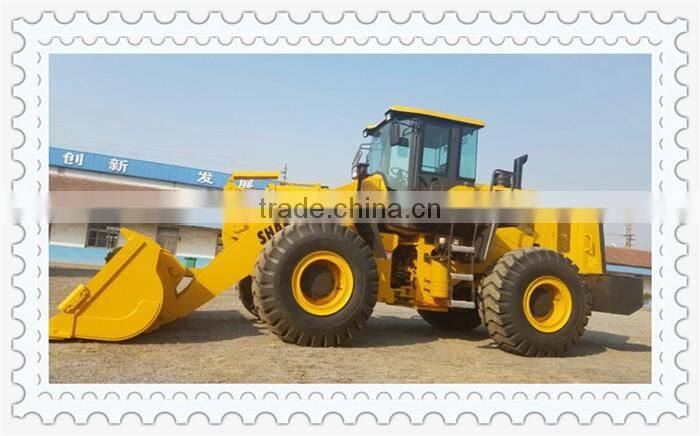

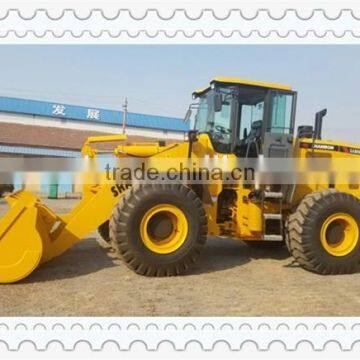

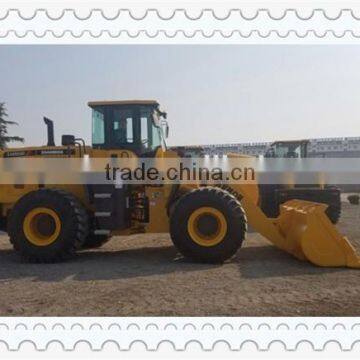

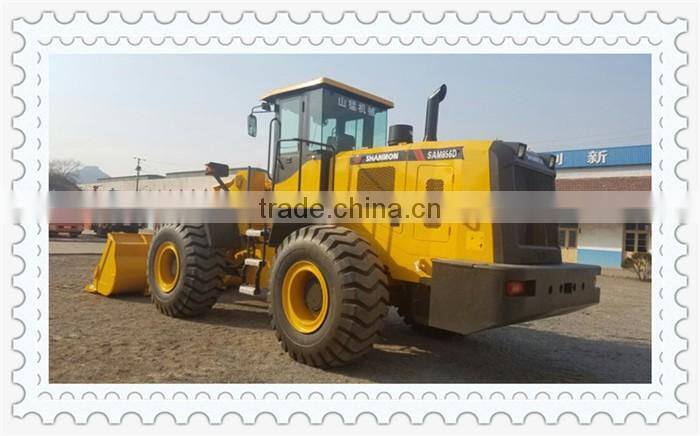

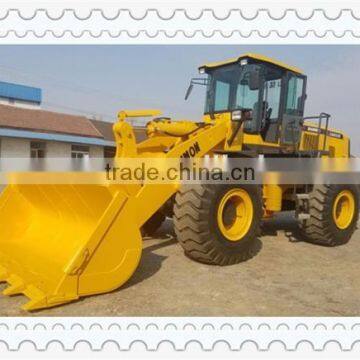

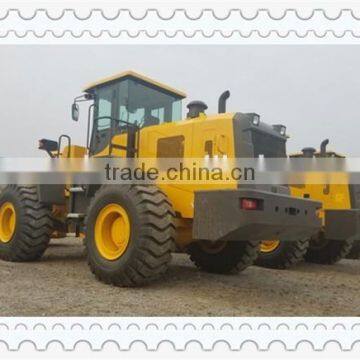

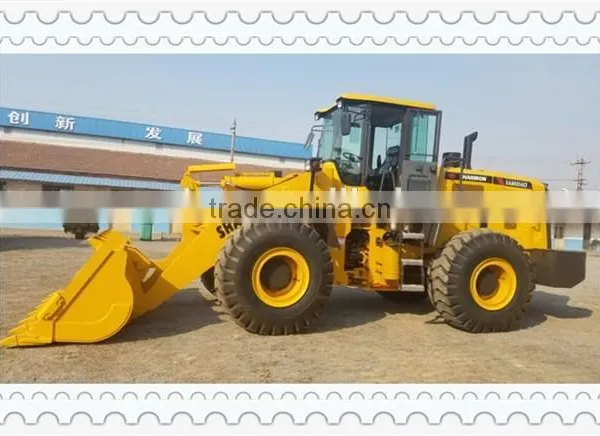

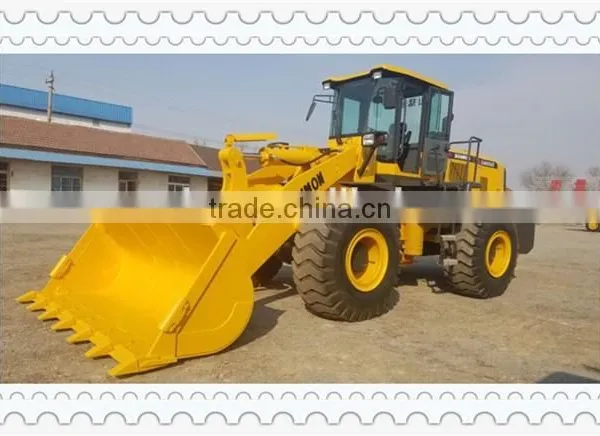

Chinese Brand New 162kW 3.0m3 Bucket Front Wheel Loader 856

1

rated load

5000kg

2

overall weight

17100kg

3

rated bucket capacity

3.0 m3

4

maximum tractive force

152KN

5

maximum breakout force

170KN

6

maximum grade ability

30o

7

maximum dump height

3150mm

8

maximum dump reach

1250mm

9

overall dimension (L×W×H)

7920×3050×3400mm

10

minimum turning radius

6640mm

11

model

WEICAI or SHANGCHAI 3306B

12

type

Four stroke water cooling  injection  pressure boost

13

No. of cylinder-bore/stroke

6-114×135mm

14

rated power

162kw--2200r/min

15

maximum torque

980N.m/1500rpm

16

min fuel-consume ratio

≤215g/kw.h

17

torque converter

Hydraulic

18

Transmission model

Countershaft Powershift

19

gear shift

4 forward shift  4 reverse shift

20

maximum speed

38km/h

21

main reducing spiral

bevel gear grade 1reduction

22

decelerating mode

planetary reduction,grade 1

23

wheel base (mm)

3200mm

24

wheel tread

2250mm

25

minimum ground clearance

480mm

26

system working pressure

18MPa

27

boom lifting time

5.7s

28

total time

9.5±0.5s

29

fuel tank capacity

270L

30

function of leveling automatically

yes

31

service brake

air over hydraulic disc brake on 4 wheels

32

parking brake

manual parking brake

33

type specification

23.5-25

34

front tyre pressure

0.4Mpa

35

rear tyre pressure

0.35Mpa
