ANSION wheel loader AS968 with 220HP CAT 3306B engine and ZF 4WG180 transmission
966H is ANSION brand new 6ton capacity wheel loader with ZF 4WG180 electric control transmission,3.5 m3 bucket and Caterpillar C6121 162kW 6-cylinder turbocharged engine, which is widely used for all kinds of construction and mine works.
1. Engine : Caterpillar C6121 220HP, diesel, 4 stroke, Water cooled, turbocharged
2. Transmission : ZF 4WG180 electric control F4R3.

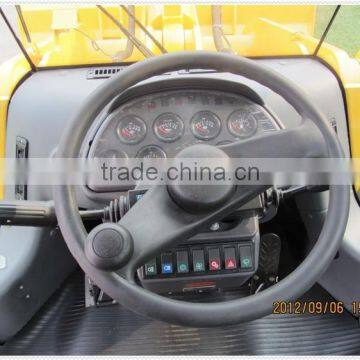

3. Pilot control by one joystick.
4. Standard 3.5m3 bucket and optional for 3.8~5.5m3 large bucket, rock bucket, fork, wood grapple, quick coupler,etc.
5. 17.8 ton operating weight

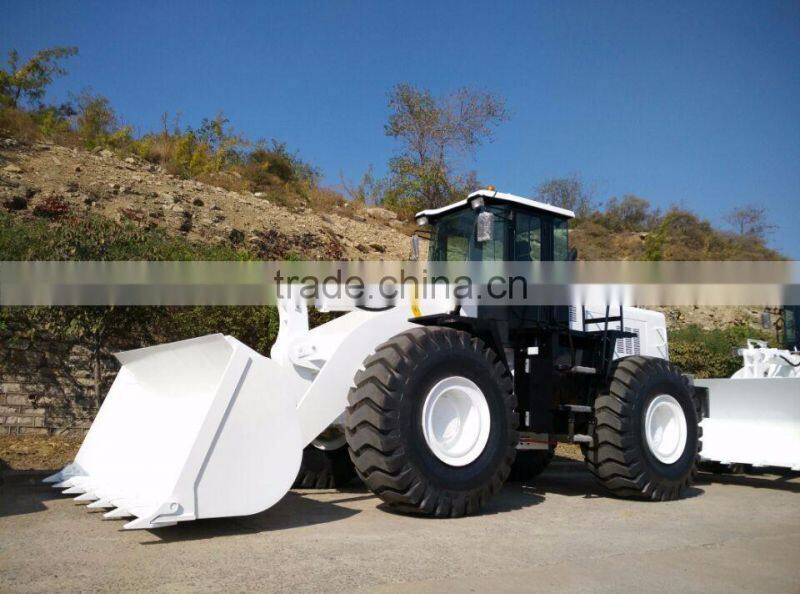

6. White appearance for Arabia market
| Model | AS968 | |
|---|---|---|
| Working performance | Rated load | 6000 kg |
| Bucket capacity | 3.5 m3 | |
| Working device | Quick hitch, pallet fork, wood grapple, dozer blade, 4-in-1 multifunction bucket, road sweeper, snow blower , enlarged bucket, rock bucket | |
| Dumping height | 3200 mm | |
| Bucket auto leveling system | Yes | |
| Breakout force | 204 kN | |
| Total cycling time | 10.95 s | |
| Overall performance | Overall dimension | 7920 x 3050 x 3400 mm |
| Operating weight | 17800 kg | |
| Operating type | Pilot control | |
| Fuel tank | 300 L | |
| Engine | Engine model | CAT C6121 |
| Type | Turbocharged, water cooled, 6 cylinders | |
| Rated power | 162 kW (220HP) / 175 kW (240HP) | |
| Steering system | Steering | Articulating hydraulic |
| Turning radius | 7020 mm | |
| Transmission | Gear box | ZF 4WG180 electric control |
| Gear shift | Forward 4 and reverse 3 | |
| Axles | Dry type and 4x4 driving | |
| Service Brake | Air over hydraulic caliper | |
| Parking brake | manual | |
| Tyre | 26.5-25 | |
| Max.travel speed | 38 km/h | |
| Tractive Force | 158 kN | |
QINGZHOU ANSION MACHINERY CO.,LTD. is a professional factory of heavy earthmoving machinery including wheel loader, front end loader, mini loader, backhoe loader, skid steer loader, forklift truck and other construction equipments.
Our main products include :
• Mini loader AS906 AS908 AS910 AS912 AS915 AS918 AS920 (0.4-1.2m3 bucket and 65kW engine)
• 3tons Wheel loader AS930 AS932 AS936 AS938 1.3-2.5 bucket and 92kW YUCHAI/DEUTZ/CUMMINS engine)
• 4tons Wheel loader AS946 (2.0-2.5m3 bucket and 129kW DEUTZ/CUMMINS engine)
• 5tons Wheel loader AS950 AS953 AS956 AS958 (3.0m3 bucket and 162kW WEICHAI/CATC6121/CUMMINS engine)
• 6tons Wheel loader AS966 AS968 (3.5m3 bucket and 162kW CAT C6121 engine and ZF 4WG180 electric transmission)
• 7tons Wheel loader AS973(4.0m3 bucket and 175kW CUMMINS engine and ZF 4WG200 electric transmission)
• backhoel loader AS100 AS500 AS790 WZ30-25 SAM388
• Skid Steer Loader 650D / 980 / 1605A
• 1-10tons Forklift Truck (Diesel / Gasoline / LNG / Electric)
1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
one set by one 40HQ (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
