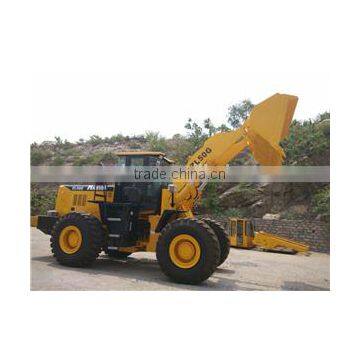

Brand new 162kW 3.0m3 bucket wheel loader ZL50G

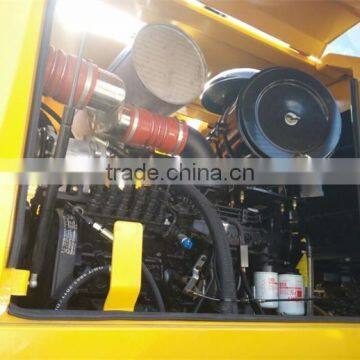

1. 162kW powerful diesel WEICHAI or SHANGCHAI engine for dust and heavy working area

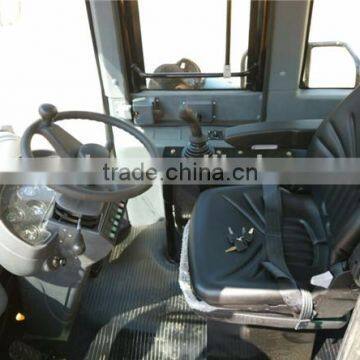

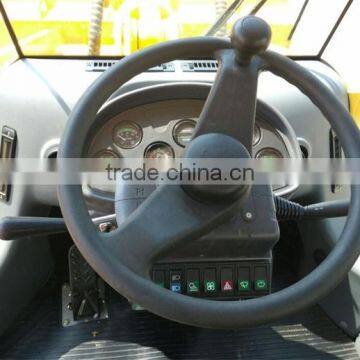

2. Cab with air contioner and fan , heater for optional , safe and comfortable
3. Heavy-duty 4x4 driving axles for all kinds of construction and mine works
4. 23.5-25 special construction tyres for rough terrain road condition
5. Planetary transmission with 4 forward and 4 reverse gear, more powerful and easy-operation
6. 3.0 m3 bucket for 5 ton capacity, 3.5 m3 / 4.5 m3 / rock / coal / wood grapple / pallet fork for optional
1 | rated load | 5000kg |
2 | overall weight | 17100kg |
3 | rated bucket capacity | 3.0 m3 |
4 | maximum tractive force | 152KN |
5 | maximum breakout force | 170KN |
6 | maximum grade ability | 30o |
7 | maximum dump height | 3150mm |
8 | maximum dump reach | 1250mm |
9 | overall dimension (L×W×H) | 7920×3050×3400mm |
10 | minimum turning radius | 6640mm |
11 | model | WEICAI or SHANGCHAI 3306B |
12 | type | Four stroke water cooling injection pressure boost |
13 | No. of cylinder-bore/stroke | 6-114×135mm |
14 | rated power | 162kw--2200r/min |
15 | maximum torque | 980N.m/1500rpm |
16 | min fuel-consume ratio | ≤215g/kw.h |
17 | torque converter | Hydraulic |
18 | Transmission model | Countershaft Powershift |
19 | gear shift | 4 forward shift 4 reverse shift |
20 | maximum speed | 38km/h |
21 | main reducing spiral
| bevel gear grade 1reduction |
22 | decelerating mode | planetary reduction,grade 1 |
23 | wheel base (mm) | 3200mm |
24 | wheel tread | 2250mm |
25 | minimum ground clearance | 480mm |
26 | system working pressure | 18MPa |
27 | boom lifting time | 5.7s |
28 | total time | 9.5±0.5s |
29 | fuel tank capacity | 270L |
30 | function of leveling automatically | yes |
31 | service brake | air over hydraulic disc brake on 4 wheels |
32 | parking brake | manual parking brake |
33 | type specification | 23.5-25 |
34 | front tyre pressure | 0.4Mpa |
35 | rear tyre pressure | 0.35Mpa |
1 | Coal bucket | 11 | Cummins engine |
2 | Rock bucket | 12 | Shangchai engine |
3 | Wood clamp | 13 | VDO instruments |
4 | Grass grasper | 14 | ZF WG180 transmission |
5 | Pipe grasper | 15 | ZF WG200 transmission |
6 | Quick coupler | 16 | ROPS Cab |
7 | Pallet fork | 17 | Air conditioner |
8 | High reach | 18 | Permco pump |
9 | Big water tank | 19 | Grammer seat |
10 | ROPS | 20 | Metrix axles |
Best Loading Type for safety and saving sea freight
