Road construction equipment loader AX930 with 3.8 meters dump height and best price

Name: Road construction equipment loader AX930 with 3.8 meters dump height and best price
Brand: ANSION
Availability: InStock

FOB Price

USD $5,000 - $12,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	AX930	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	6700x2200x3000mm	Rated Load	2800 kg (heavy) / 3000 kg (bulk)
Certification	ISO9001	Warranty	12 months
After-sales Service Provided	No overseas service provided

ANSION Wheel Loader AX930

Front Loader Capcacity : 1.4m3 earthmoving bucket for 2.8tons rated load capacity
1.8m3 bulk material bucket for 3 tons rated load capacity
Mechanical or Pilot joystick control or Electric joystick control

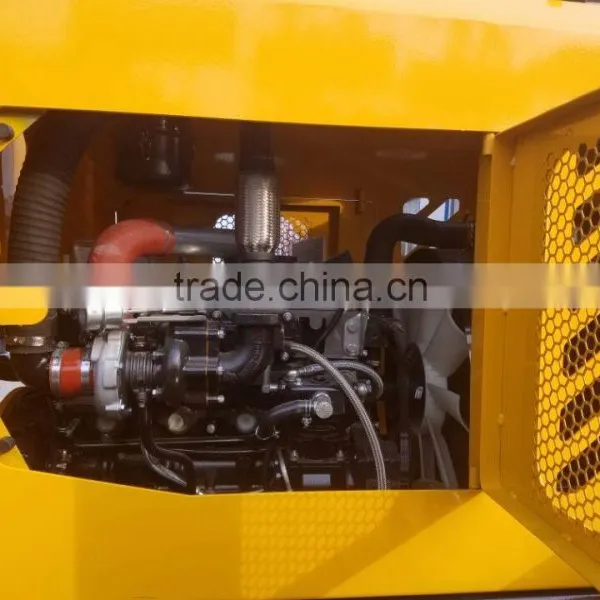

Engine : Yuchai 4105 and weihai WP4.3G102E2 (83kW = 112HP)
4x4 driving axles and hydraulic steering system
Cab with fan , air conditioner and heater is optional
7.2 tons operating weight meeting international standard
16/70-24 tyres

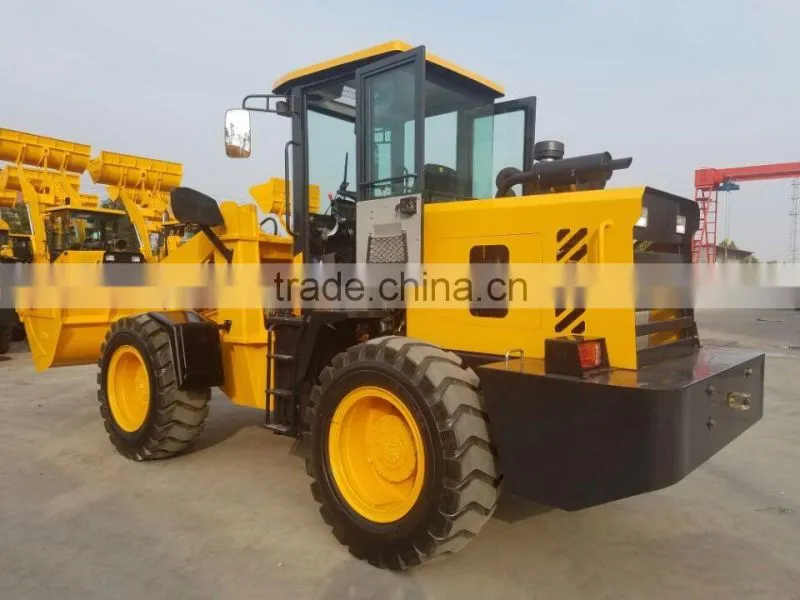

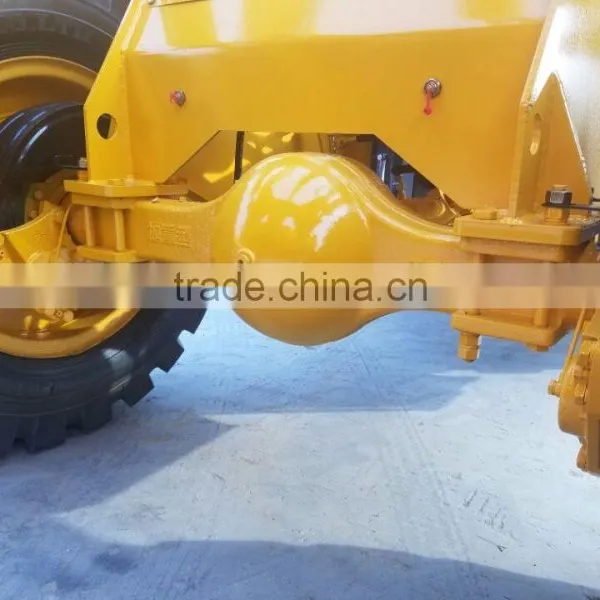

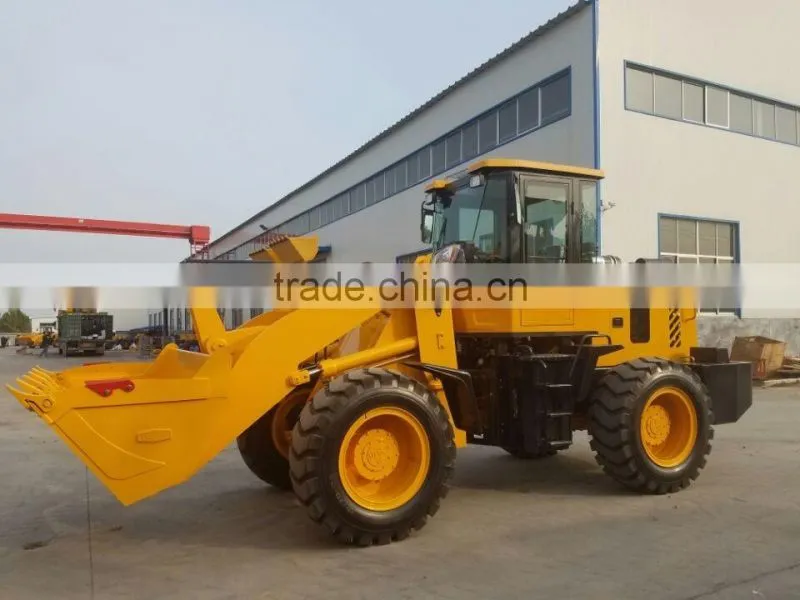

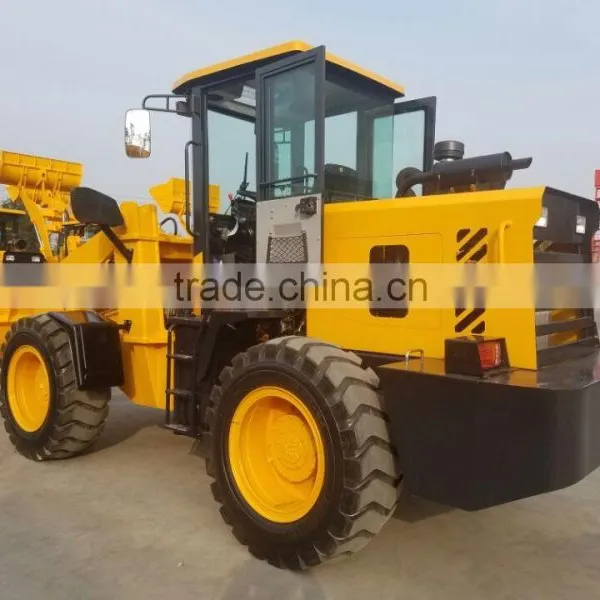

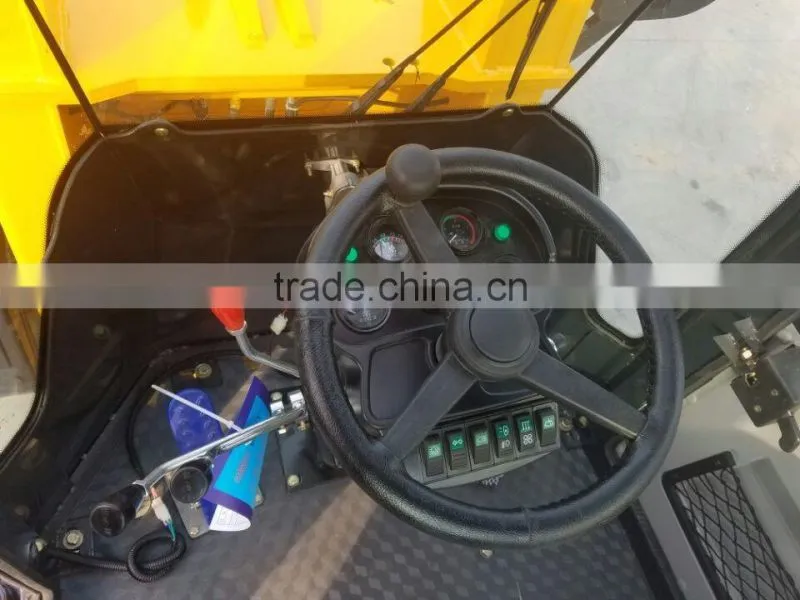

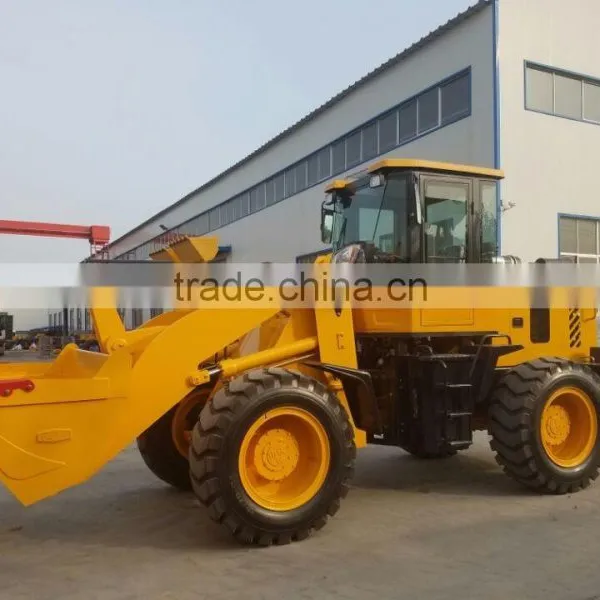

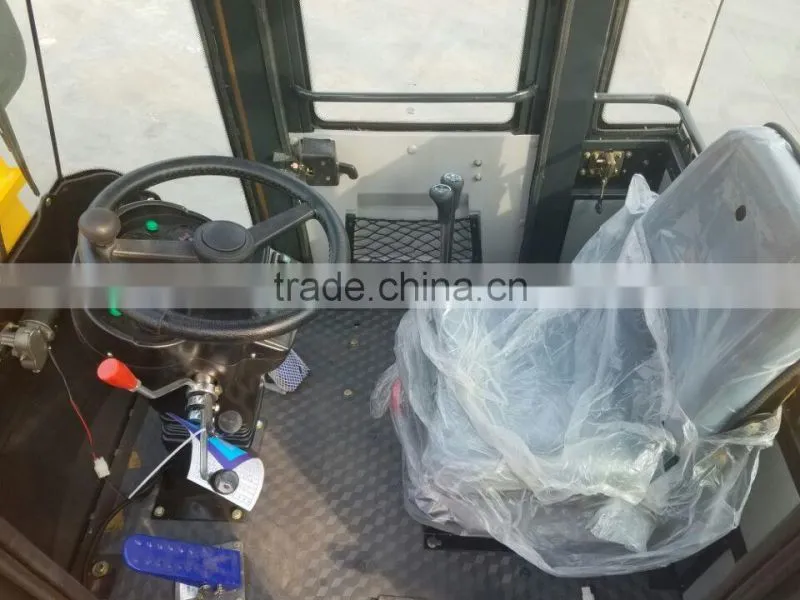

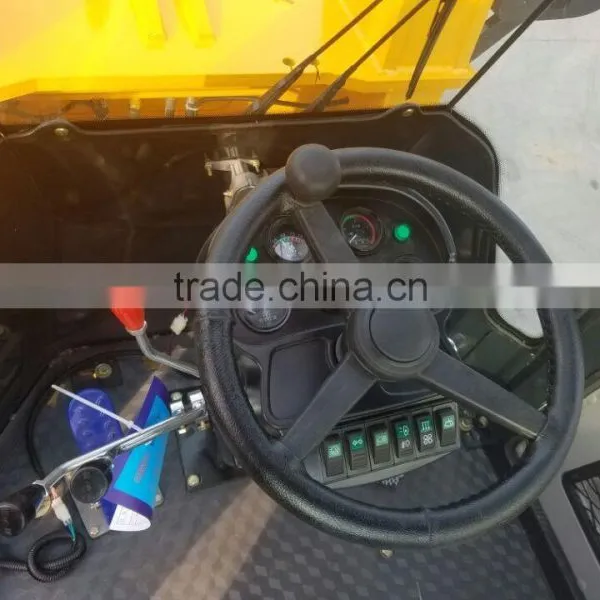

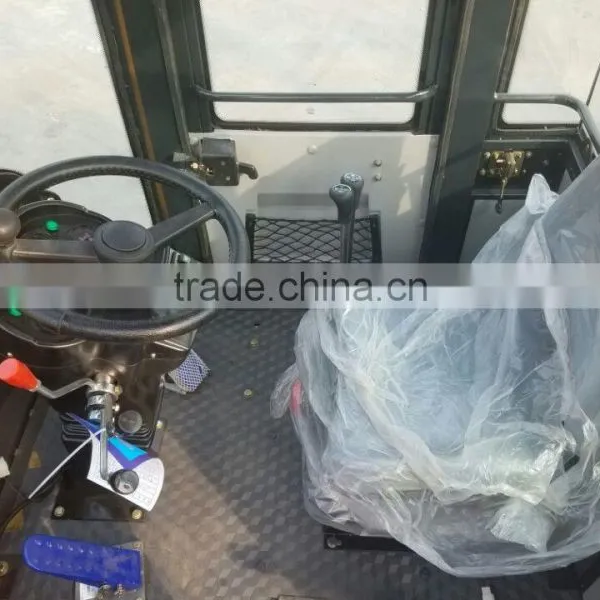

Real Picutres Show

Specifications

Model	AX930
Rated load	2800 - 3000 kg
Overall weight	7200 kg
Rated bucket capacity	1.4 - 1.8 m3
Max. Tractive force	>54 kN
Max. Breakout force	>45 kN
Max. Gradeability	30^o
Max. Dump height	3800 mm
Max. Dump reach	863 mm
Overall dimension (LWH)	6700 * 2200 * 3000 mm
Min. Turning radius	4759 mm
Engine model	YUCHAI 4105 / WEICHAI WP4.3G102E2
Engine type	Inline , water cooled, four stroke
Rated power	83 kW (112 HP)
Max. Torque	500 N.m
Min. Fuel-consume ratio	< 210 g/kw.h
Torque converter	YJ290
Gearbox type	Counter shaft power shift
Gear shift	2 forward and 2 reverse shift
Max. Speed	28 km/h
Main reducing mode	Circular arc bevel gear, single stage
Decelerating mode	Single stage planetary type
Wheel base	2250 mm
Wheel tread	1640 mm
Min. Ground clearance	310 mm
System working pressure	16 MPa
Boom lifting time	4.8 s +/- 0.2 s
Total cycling time	9.2 s +/- 0.5 s
Fuel tank capacity	80 L
Bucket auto leveling	Standard
Service brake	Air assist disc brake on 4 wheels
Parking brake	Flexible shaft operated external drum
Tire specification	16/70-24

Attachments
