ANSION brand new 3TON wheel loader ZL938D-II
1.All-view cab and seat with shock-absorber and fan, (Air conditioner is optional)
2.Advanced WEICHAI Deutz 125HP diesel engine (CUMMINS 130HP optional)
3.Heavy-duty 4wd driving axles and transmission
4.Hydraulic pilot joystick or mechanical operation
5.9.6 ton standard operate weight for 3 ton rated load
6.Optimized working device such as pallet fork, wood grapple, 4 in 1 bucket etc.
| Model | ZL938-II | |
|---|---|---|
| Working performance | Rated load | 3000 kg |
| Bucket capacity | 1.8 m3 | |
| Working device | Quick hitch, pallet fork, wood grapple, dozer blade, blower , enlarged bucket, rock bucket | |
| Dumping height | 3100 mm | |
| Bucket auto leveling system | Yes | |
| Breakout force | 127 kN | |
| Total cycling time | 9.15 s | |
| Overall performance | Overall dimension | 6890 x 2430 x 3070 mm |
| Operating weight | 9600 kg | |
| Operating type | Mechanical / Pilot control | |
| Fuel tank | 156 L | |
| Engine | Engine model | WEICHAI DEUTZ / YUCHAI / CUMMINS |
| Type | Turbocharged, water cooled, 6 cylinders | |
| Rated power | 92 kW (125HP) / 97 kW (130HP) | |
| Steering system | Steering | Articulating hydraulic |
| Turning radius | 5097 mm | |
| Transmission | Gear box | Countershaft powershift / Planetary |
| Gear shift | Forward 4 and reverse 2 | |
| Axles | Dry type and 4x4 driving | |
| Service Brake | Air over hydraulic caliper | |
| Parking brake | manual | |
| Tyre | 17.5-25 | |
| Max.travel speed | 40 km/h | |
| Tractive Force | 97 kN | |

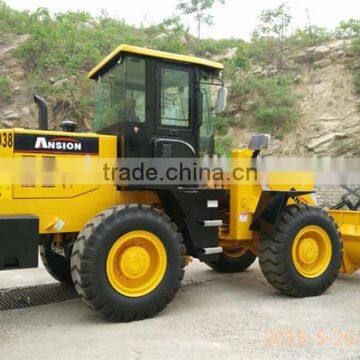

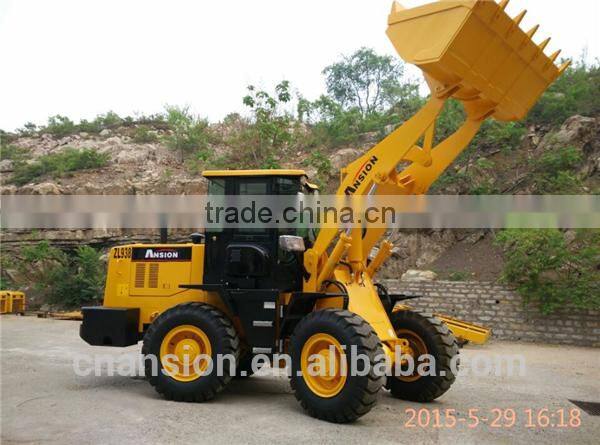

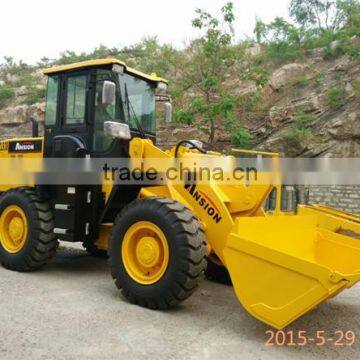

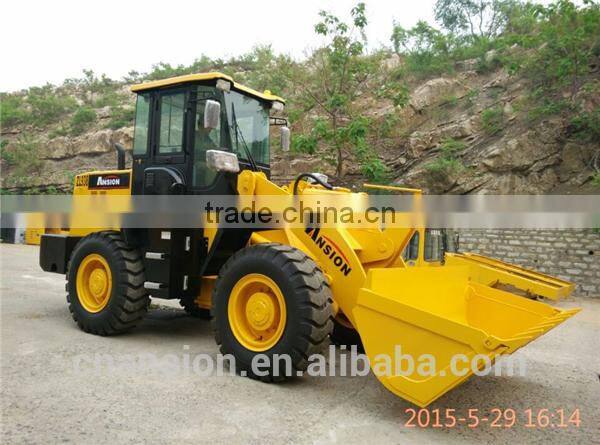

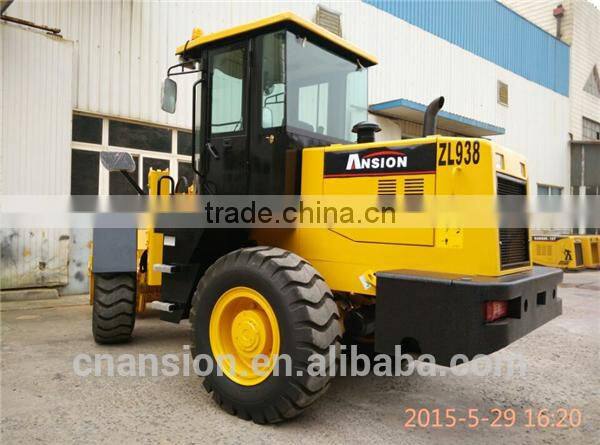

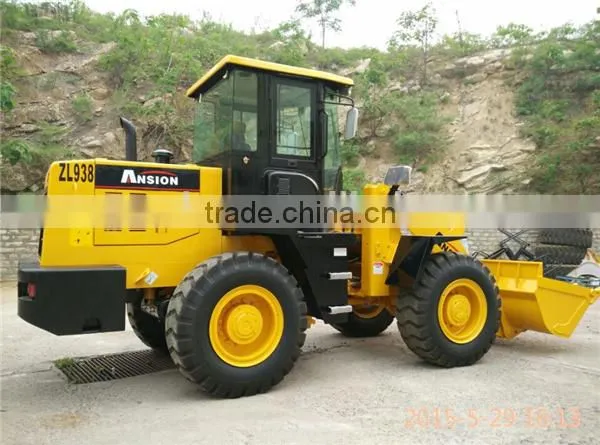

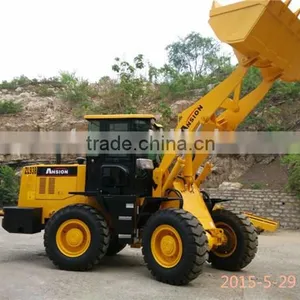

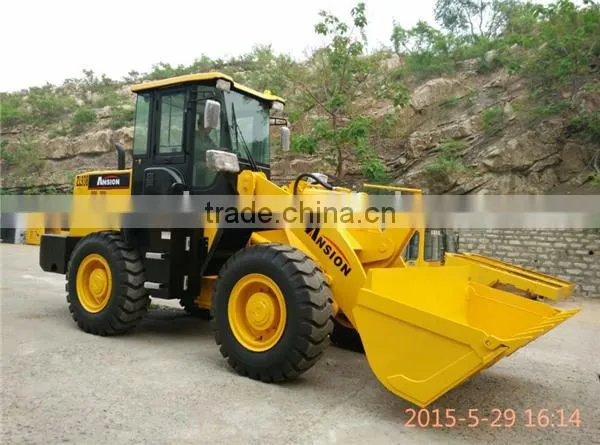

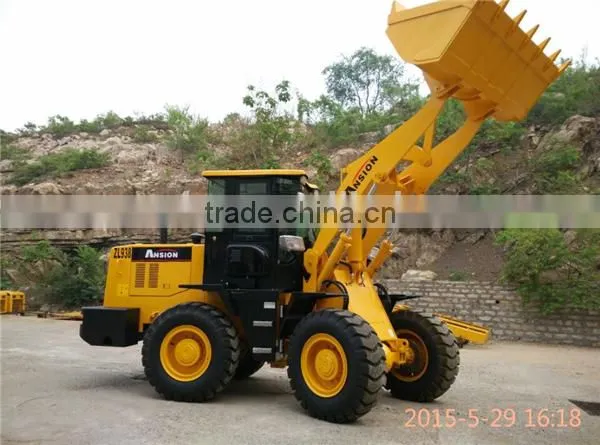

Overall Look

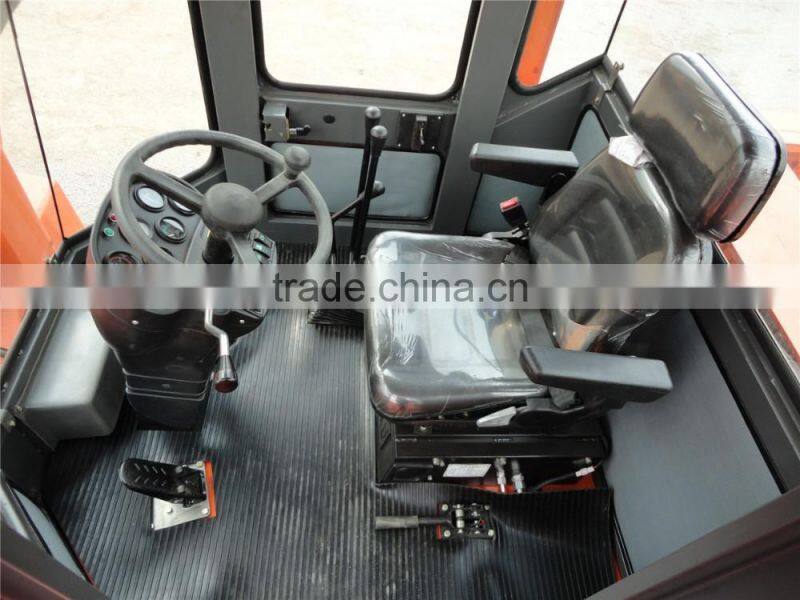

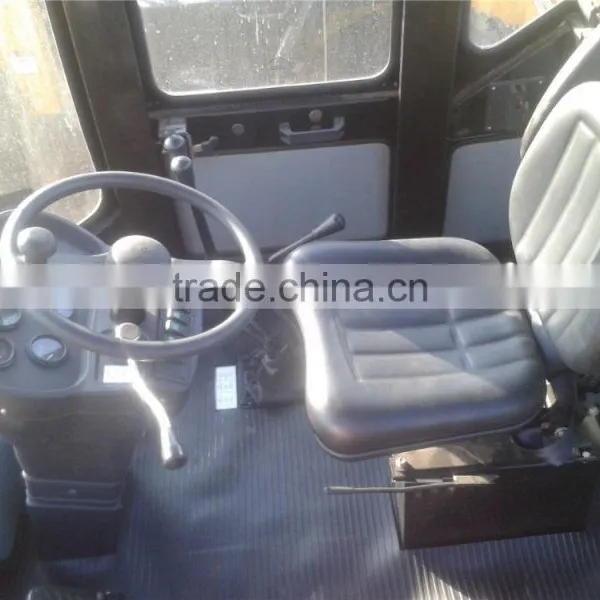

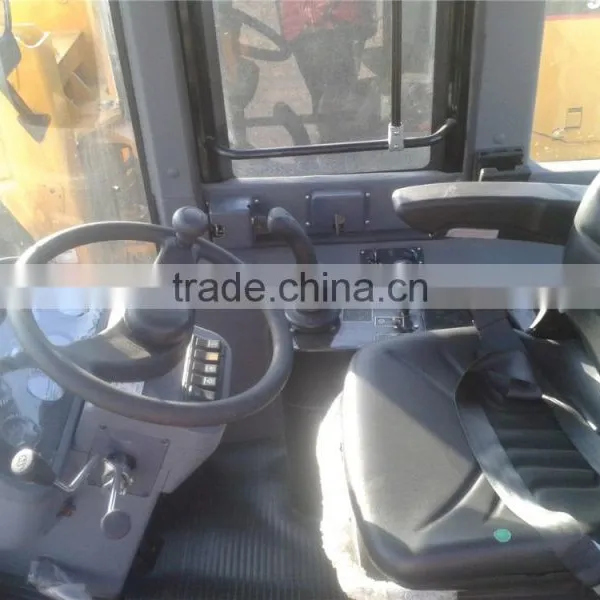

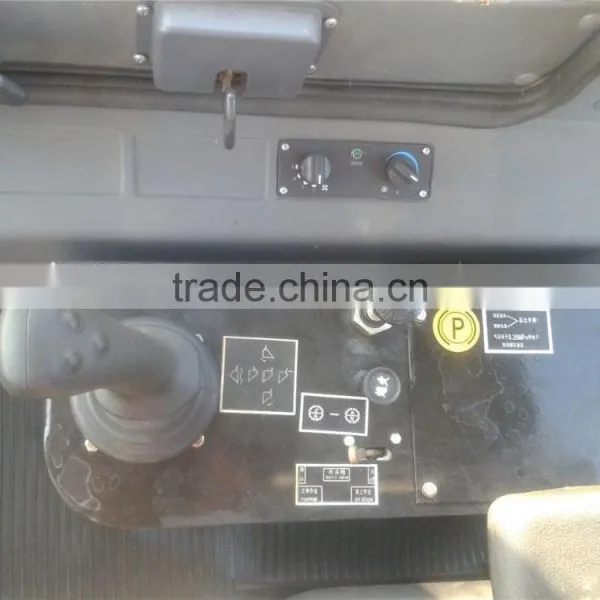

Cab with Hydraulic pilot joystick or mechanical operation
QINGZHOU ANSION MACHINERY CO.,LTD. is a professional factory of heavy earthmoving machinery including wheel loader, front end loader, mini loader, backhoe loader, skid steer loader, forklift truck and other construction equipments.
Our main products include :
• Mini loader ZL10F ZL16F ZL20F (0.5-1.1m3 bucket and 65kW engine)
• 3tons Wheel loader ZL25F ZL28F ZL30F ZL35E (1.3-2.0m3 bucket and 92kW YUCHAI/DEUTZ/CUMMINS engine)
• 4tons Wheel loader ZL40F (2.0-2.5m3 bucket and 129kW DEUTZ/CUMMINS engine)
• 5tons Wheel loader ZL50E ZL50G (3.0m3 bucket and 162kW WEICHAI/CATC6121/CUMMINS engine)
• 6tons Wheel loader 966H (3.5m3 bucket and 162kW CAT C6121 engine and ZF 4WG180 electric transmission)
• 7tons Wheel loader 973T (4.0m3 bucket and 175kW CUMMINS engine and ZF 4WG200 electric transmission)
• backhoel loader WZ10-10 WZ45-16 WZ30-16 WZ30-25 SAM388
• Skid Steer Loader 650D / 980 / 1605A
• 1-10tons Forklift Truck (Diesel / Gasoline / LNG / Electric)
1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
one set by one 40HQ (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
