ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine

Qingzhou Ansion Machinery Co., Ltd.
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-1
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-2
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-3
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-4
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-5
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine thumbnail-6
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-1
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-2
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-3
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-4
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-5
ANSION Brand 3T Loader With Hydraulic Pilot Joystick and DEUTZ 92kW Turbocharged Engine photo-6
US$ 12,270 - 13,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
ANSION
Model Number:
CLG835
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name ANSION
Model Number CLG835
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6450 x 2200 x 2950 mm
Rated Load 2800 kg (heavy) / 3000 kg (bulk)
Certification ISO9001
Warranty 12 months
After-sales Service Provided No overseas service provided

ANSION Brand New 3T Wheel Loader AX938

  • Front Loader Capcacity : 1.5m3 ( 1.96 CUYD )bucket for 3.0tons rated bulk load capacity or 2.8tons heavy load capacity

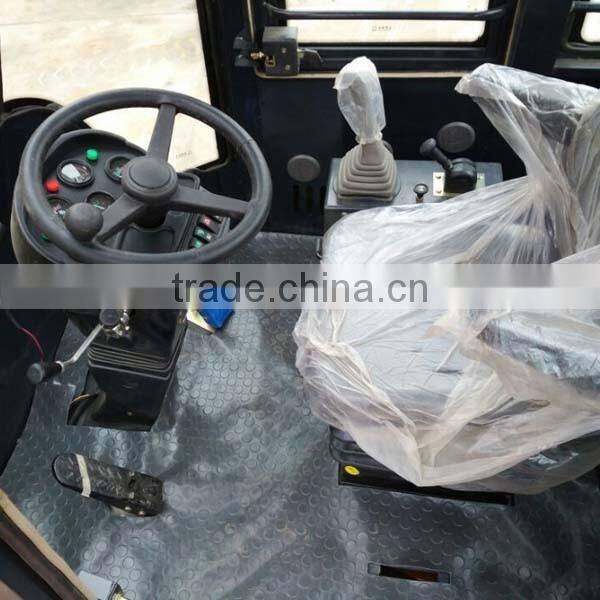

  • Mechanical or Pilot joystick control or Electric joystick control

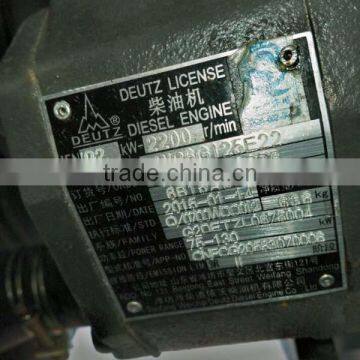

  • Engine : DEUTZ WP8G125E22 or CUMMINS  (92kW = 125HP, diesel, 6 cylinders)
  • 4x4 driving axles and hydraulic steering system
  • Cab with fan , air conditioner and heater is optional
  • 6.8 tons operating weight
  • 16/90-24 solid tyres

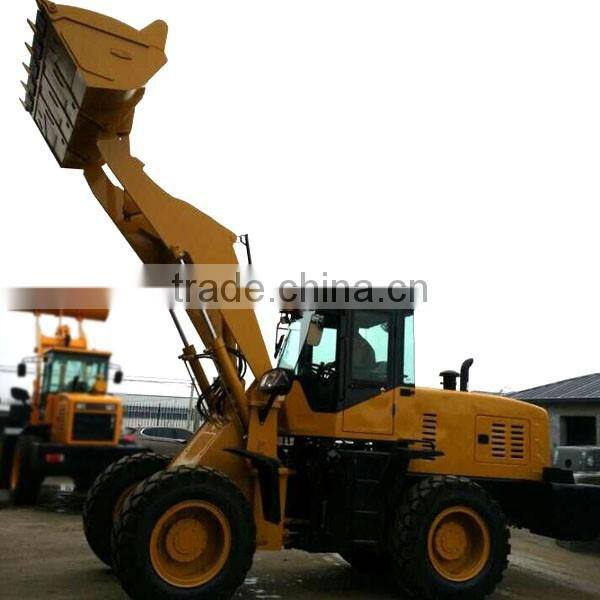

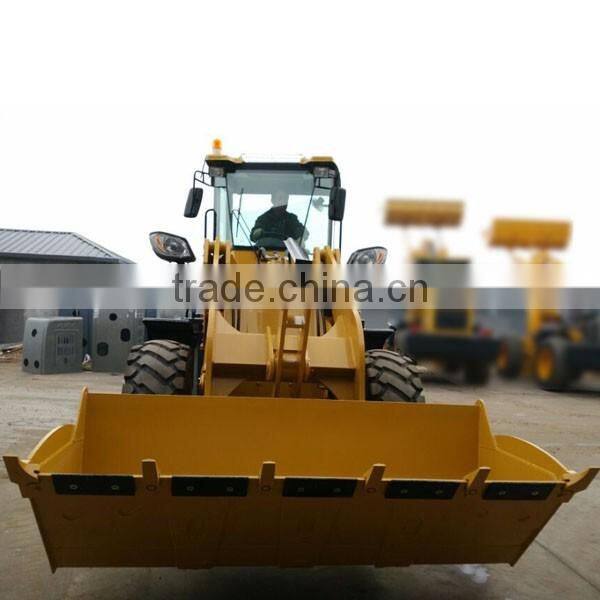

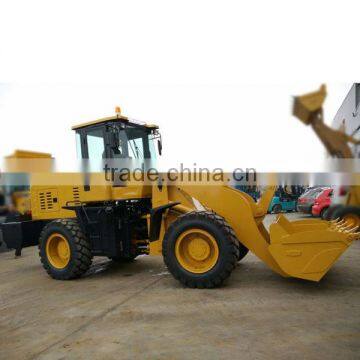

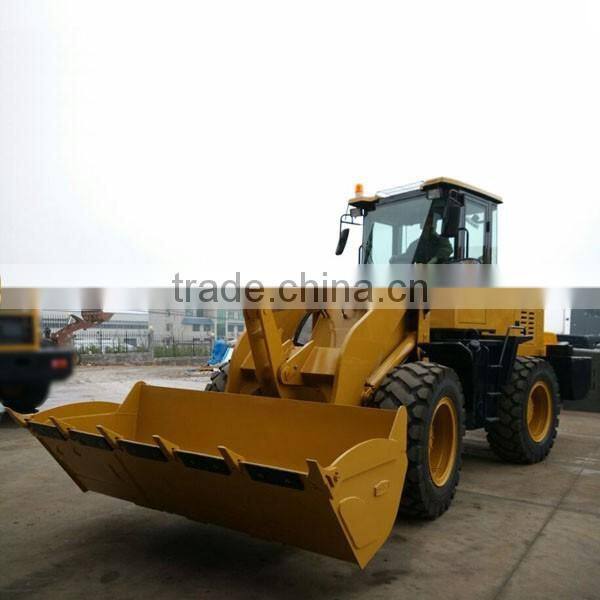

Real Picutres Show

 ANSION brand 3T loader with hydraulic pilot joystick and DEUTZ 92kW turbocharged engineANSION brand 3T loader with hydraulic pilot joystick and DEUTZ 92kW turbocharged engineANSION brand 3T loader with hydraulic pilot joystick and DEUTZ 92kW turbocharged engineANSION brand 3T loader with hydraulic pilot joystick and DEUTZ 92kW turbocharged engine



Specifications

ModelCLG835
Working performanceRated load2800 kg
Bucket capacity1.5 m3
Working deviceQuick hitch, pallet fork, wood grapple, dozer blade,
4-in-1 multifunction bucket, road sweeper, snow blower ,
enlarged bucket, rock bucket
Dumping height3000 - 3300 mm
Bucket auto leveling systemYes
Breakout force45.4 kN
Total cycling time9.2 s
Overall performanceOverall dimension6450 x 2200 x 2950 mm
Operating weight6800 kg
Operating typeMechanical / Pilot control
Fuel tank80 L
EngineEngine modelWEICHAI DEUTZ
TypeTurbocharged, water cooled, 6 cylinders
Rated power92 kW (125HP)
Steering systemSteeringArticulating hydraulic
Turning radius4759 mm
TransmissionGear boxCountershaft powershift
Gear shiftForward 2 and reverse 2
AxlesDry type and 4x4 driving
Service BrakeAir over hydraulic caliper
Parking brakemanual
Tyre16/90-24 solid tyres
Max.travel speed24 km/h
Tractive Force54 kN









Company Information



ANSION brand 3T loader with hydraulic pilot joystick and DEUTZ 92kW turbocharged engine



Our main products : 2~6 ton wheel loader . backhoe loader , forklift truck etc.

25 years' factory in Qingzhou China

Complete after-sale service and spare parts supplying



Whatsapp : 00 86 18953665960
