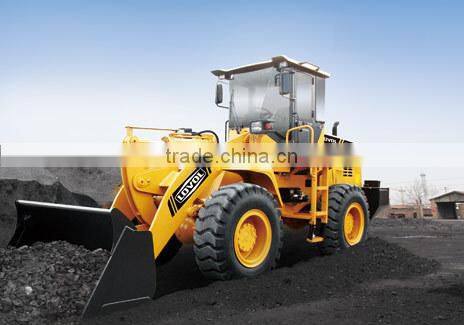

FOTON LOVOL FL935E-II reliable 3 ton 1.8 m3 bucket 92kW mini wheel loader
Direct FOTON LOVOL wheel loader export agent - ANSION
1. Equipped with YC6B125-T20 engine.
2. Short wheel base, small turning radius and flexible serve for operation in narrow space.
3. Minimum ground clearance is up to 430mm with excellent passing performance
4. Adopted a large vision, all closed damping cab, comfortable operation environment
5. Four-wheeled driving, low-pressure, wide-base, off-highway tires with good performance of passing
Complete machine parameters | |
Rated load(kg) | 3000 |
Operating mass (standard)(kg) | 10020 |
Bucket capacity(m3) | 1.8 |
Boom lifting time(S) | 5.8 |
Sum of three items(S) | 10.5 |
Max. traction force(kN) | 92 |
Max. breakout force(kN) | 96 |
Running system | |
Forward speed range(km/h) | 0-37 |
Backward speed range(km/h) | 0-31.5 |
Gearbox shift | Front : 4 gears rear: 2 gears |
Max. gradeability(o) | 30 |
Steering angle(o) | 36 |
Tire model | 17.5-25-12PR |
Service brake | caliper disc brake |
Parking brake | flexible shaft control caliper disc brake |
Tire center(mm) | 5102 |
Outside of bucket(mm) | 5945 |
Hydraulic system | |
Working system pressure(Mpa) | 16 |
Working system displacement(ml/r) | 50 |
Steering system pressure(Mpa) | 14 |
Steering system displacement(ml/r) | 50 |
Hydraulic oil volume(L) | 110 |
Working scope | |
Outline dimension(mm) | 7066x2424x3230 |
Wheelbase(mm) | 2630 |
Track(mm) | 1850 |
Min. grounding distance (at hinge position)(mm) | 430 |
Max. unloading height(mm) | 2990 |
Unloading distance at max. unloading height(mm) | 1100 |
Engine parameters | |
Model | Yuchai YC6B125-T20 |
Type | Six-cylinder, in-line, direct injection, natural inspiration, and water cooling |
Rated power(Kw/rpm) | 92/2200 |
Max. torque / speed(N.m/rpm) | 463/1400-1600 |
Cylinder bore x stroke(mm) | 108x125 |
Displacement(L) | 6.871 |
Fuel consumption rate at rated working condition(g/Kw.h) | 235 |
Fuel tank capacityt(L) | 140 |
1.Why choose us ?
As a wheel loader supplier with more than 20 years, we provide professional technical support and excellent after-sale service and parts supplying.
2.How can I get the parts if ANSION wheel loaders break down?
Within warranty ( 1 year or 2000 hours), we would provide the parts for free and you just need to pay for the freight.
Over the warranty, we would still provide the parts, but you need to pay the parts and the freight.
All in all, you don't need to worry about the parts supplying.
As we are an reliable supplier and can supply you with the parts in time.
