Japan Isuzu 4JG2PE-01 45kw Diesel Engine 3 Ton Forklift Truck

Name: Japan Isuzu 4JG2PE-01 45kw Diesel Engine 3 Ton Forklift Truck
Brand: ANSION
SKU: 140140720
Availability: InStock

Qingzhou Ansion Machinery Co., Ltd.

US$ 7,999 - 9,999 MOQ: 1 set

Key Specifications

Condition:

New

Brand Name:

ANSION

Model Number:

CPCD30

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ANSION

Model Number CPCD30

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 3000 kg

Max. Lifting Height 3000 mm - 4000 mm

Fork Length 1220 mm

Fork Width 125 mm

Certification CE

After-sales Service Provided No overseas service provided

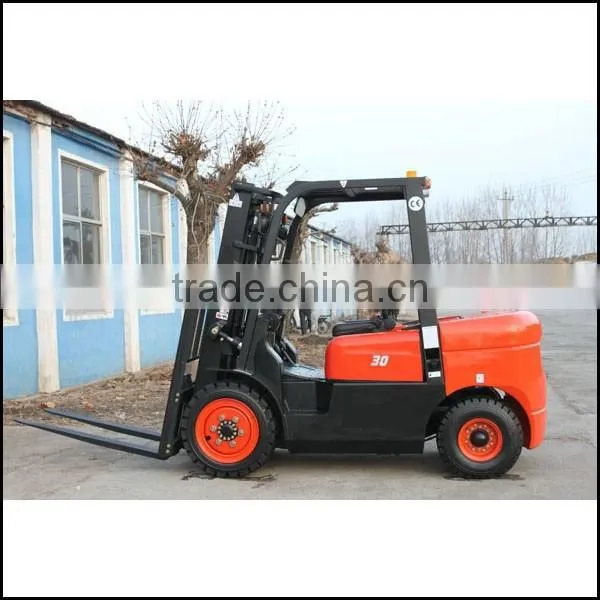

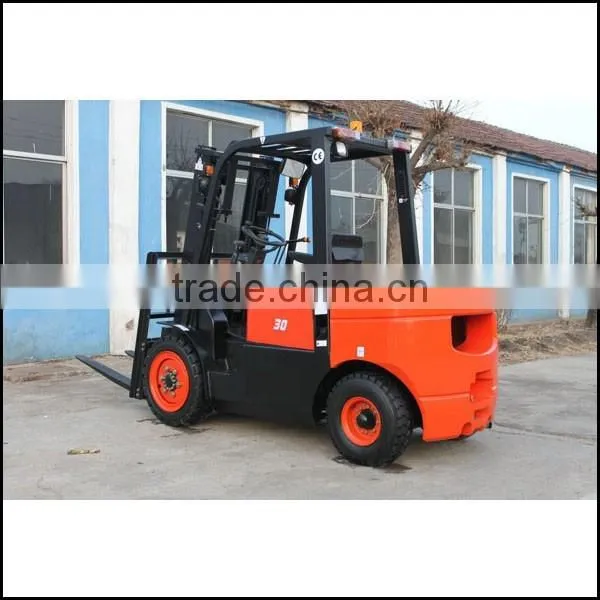

3 ton forklift truck with rough terrain tyres and Japan Isuzu 4JG2PE-01 45 kw diesel engine

Best-selling counterbalance forklifter CPCD30 made in China

China material handling equipment 3 ton diesel forklift truck with side shifter

Product Description

	1	Model		CPCD30FR	CPCD35FR
	2	Rated capacity	kg	3000	3500
	3	Load center	mm	500	500
	4	Power type		Diesel	Diesel
	5	Transmission		Hydraulic/Mechanical
Dimensions	6	Lifting height	mm	3000	3000
	7	Free lifting height	mm	80	80
	8	Turning radius	mm	2500	2500
	9	Overall length	mm	3800	3800
	10	Overall width	mm	1230	1230
	11	Overall height (mast lowered)	mm	2095	2095
	12	Overall height (mast raised)	mm	4080	4080
	13	Overall height (overhead guard)	mm	2110	2110
	14	Fork length	mm	1220	1220
	15	Fork width	mm	125	125
	16	Fork thickness	mm	45	50
Performance	17	Max. driving speed (with/without load)	km/h	18/20	17/19
	18	Max. lifting speed (with load)	mm/s	400	375
	19	Max. traction (with/without load)	kn	15.5/10.5	16/11
	20	Gradeability (with/without load)	%	15/20	15/20
	21	Tilting angles (forward/backward)	°	6/12	6/12
	22	Service weight	kg	4320	4580
Engine	23	Engine model		490BPG engine	490BPG engine
	24	Power	kw	39	39
	25	Rated speed	rpm	2650	2650
	26	Displacement	L	2.67	2.67
	27	No. of cylinder		4	4
Wheel	28	Front overhang	mm	465	465
	29	Wheel base	mm	1700	1700
	30	Front tread	mm	1000	1000
	31	Rear tread	mm	970	970
	32	Front tire		28x9-15	28x9-15
	33	Rear tire		6.50-10	6.50-10

Contract

OEM, ODM	Available
Trade terms	FOB,FCA, CNF, CIF, CFR,DAF,EXW
Shipping	Container or Ro-Ro or bulk ship
Payment term	T/T or L/C
Delivery time	15 days after receiving deposit
Warranty	12 months or 2000 hours
