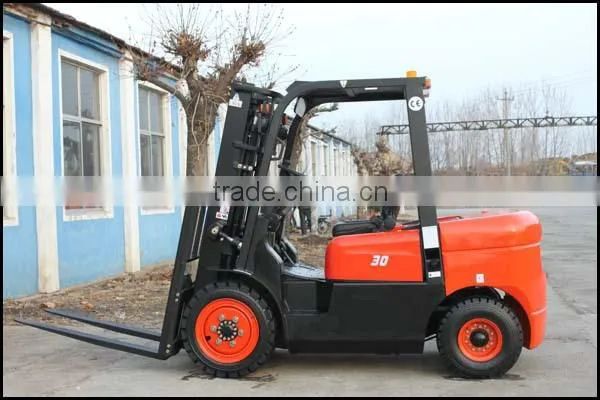

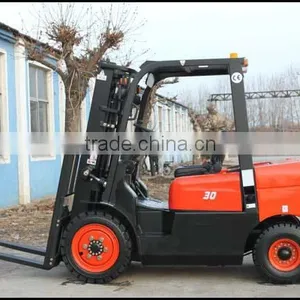

3ton Diesel Engine Forklift With Isuzu Engine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ZOT

Qingzhou Ansion Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name ZOT

Model Number CPCD30

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 3000KG

Max. Lifting Height 3000MM

Min. Lifting Height 145

Fork Length 1070

Fork Width 500mm

Overall Dimensions 2695*1230*2055MM

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

New 3t forklift carton clamp/ forklift carton clamp carton clamp /forklift carton clamp 3ton

1	Features	Power type			Diesel
2		Rated Load		kg	3000
3		Load Center		mm	500
4		Lifting Height		mm	3000
5		Free Lifting Height		mm	145
6		Fork Size	LWT	mm	1070×125×45
7		Mast Tilt Radius	Frongt/Rear	.	6/12
8		Minimum Turning Radius		mm	2400
9		Minimum Stacking Right Angle Channel Width		mm	4280
10		Minimum Right Angle Channel Width		mm	2120
11		Minimum Ground Clearance		mm	120
12		Overhead Guard Height		mm	2090
13		Front Overhang		mm	475
14	Performance	Max. Travelling Speed	Full load	km/h	20
15		Max. Lifting Speed	Full load	mm/s	470
16		Max. Traction	Full load	KW	18
17		Max. Climbing Ability		%	20
18	Dimension	Overall Length	Without Fork	mm	2695
19		Overall Width		mm	1230
20		Max. Fork Lifting height (With Load Backrest)		mm	4265
21		Mast Height		mm	2055
22	Chassis	Tyre	Front		28x9-15-12PR
23		Tyre	Rear		6.50-10-10PR
24		Wheel Base		mm	1700
25		Wheel Tread	Frongt/Rear	mm	1000/970
26		Curb Weight	Without Load	Kg	4350
27	Power	Battery	Voltage/Capacity	V/Ah	12/90
28		Engine	Model		XINCHANG490BPG
29			Rated Power	kw/r.p.m	34.5/2500
30			Rated Torgue	Nm/r.p.m	139/1800
31			Bore*Stroke	mm
32			Cylinder Amount		4
33			Displacement	L	2.36
34		Fuel Tank Volume		L	70
35		Gears front/back			2/2Manual shift, 1/1Power shift
36		Working Pressure		Mpa	17.5
