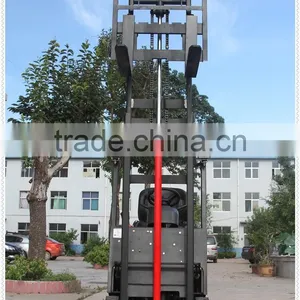

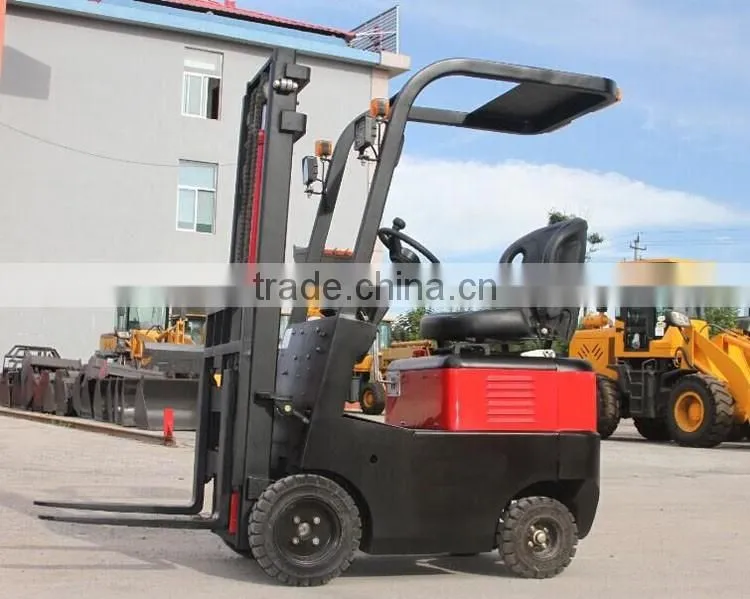

AS075 48V 140Ah Mini Electric Forklift for Sale 750kg

Name: AS075 48V 140Ah Mini Electric Forklift for Sale 750kg
Brand: ANSION
SKU: 140140646
Availability: InStock

US$ 5,500 - 6,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ANSION

Qingzhou Ansion Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name ANSION

Model Number FB075

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 750 kg

Max. Lifting Height 2500 mm

Min. Lifting Height 35mm

Fork Length 920mm

Fork Width 100 mm

Overall Dimensions 2040x800x1680 mm

Certification CE

After-sales Service Provided No overseas service provided

ANSION brand new 0.75 TON mini electric forklift FB075

Main Specification

ANSION ELECTRIC FORKLIFT TRUCK	AS075
Power type	Battery
Rated lifting capacity	750 kg
Loading center	300 mm
Driving type	Seat , overhead guard
Full length (with fork)	2040 mm
Full length (without fork)	1400 mm
Full width	800 mm
Full height (unrisen mast)	1680 mm
Full height (Overhead guard)	1820 mm
Full height (Max. Working height)	3070 mm
Distance from the seat face to the top of overhead guard	970 mm
Wheel base	860 mm
Front overhang	300 mm
Rear overhang	290 mm
Front wheel tread	700 mm
Rear wheel tread	668 mm
Min.ground clearance	90 mm
Standard lifting height	2500 mm
Free lifting height	80 mm
Fork adjusting scope	703 / 190 mm
Min. Turning radius (outside)	1200 mm
Min. right angle aisle width	1600 mm
Mast tilting angle (forward / backward)	6 / 12 ^o
Max. Lifting speed (unload)	400 mm/s
Max. Lifting speed (load)	350 mm/s
Max. Travel speed (unload)	13 km/h
Max. Travel speed (load)	12 km/h
Max. Grade ability (load)	≤ 10 %
Standard machine weight (unload)	1100 kg
Wheel x = driving wheel (front / rear)	2x/2
Front tyre	15x4 1/2-8
Rear tyre	3.50-5
Service brake	Hydraulic pedal
Parking brake	Mechanical manual
Battery voltage / volume	48 V / 140 Ah
Driving generator power	AC 3 kW
Oil pump generator power	DC 3 kW
