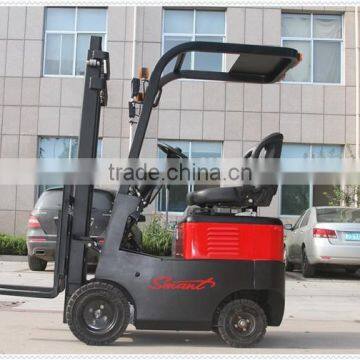

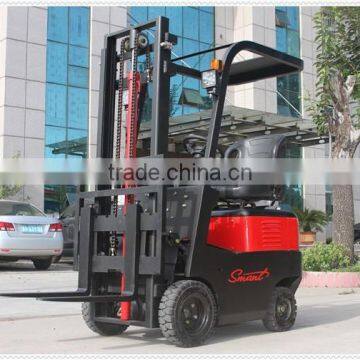

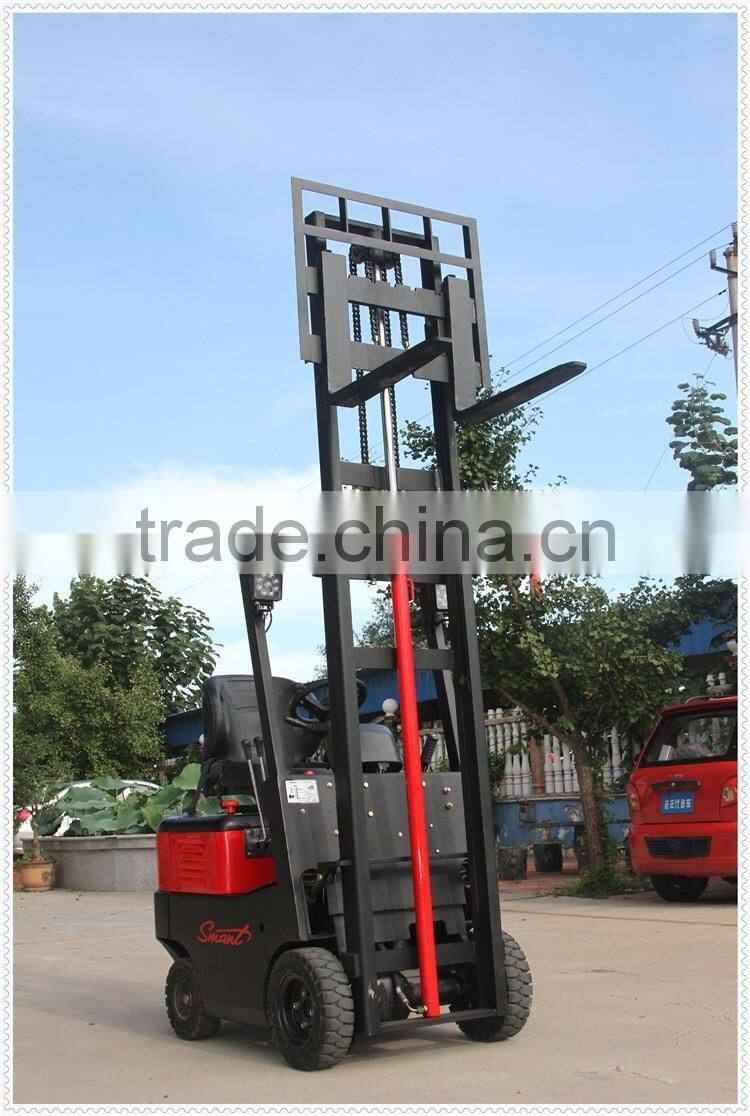

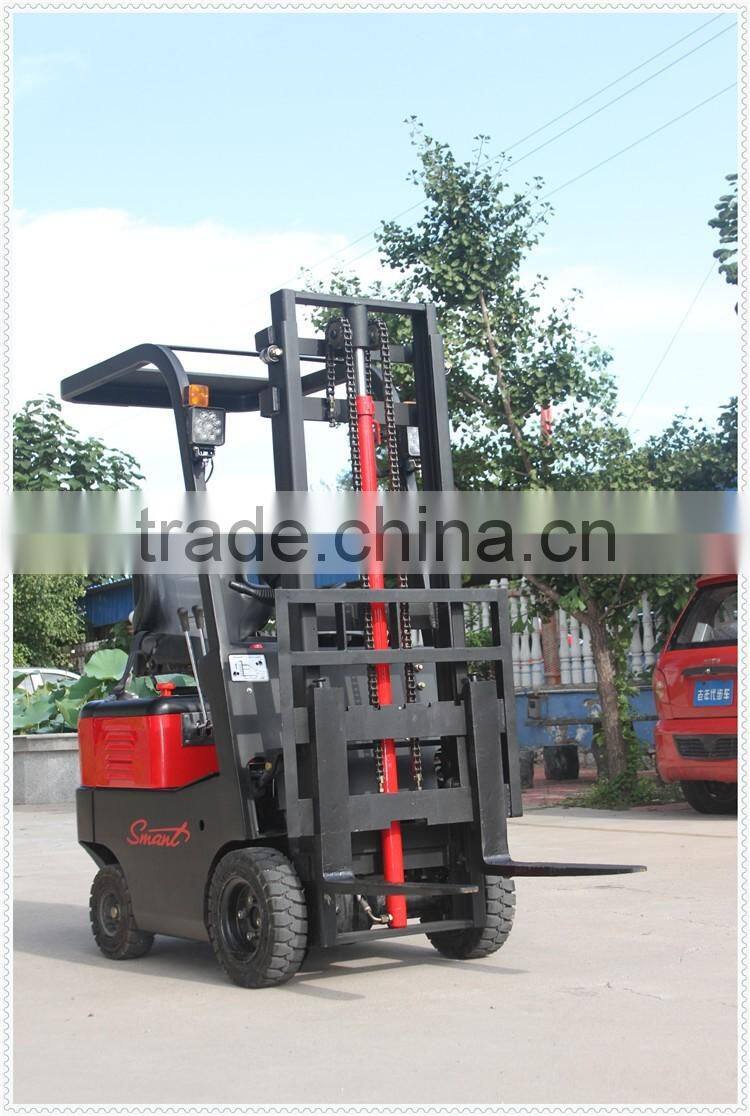

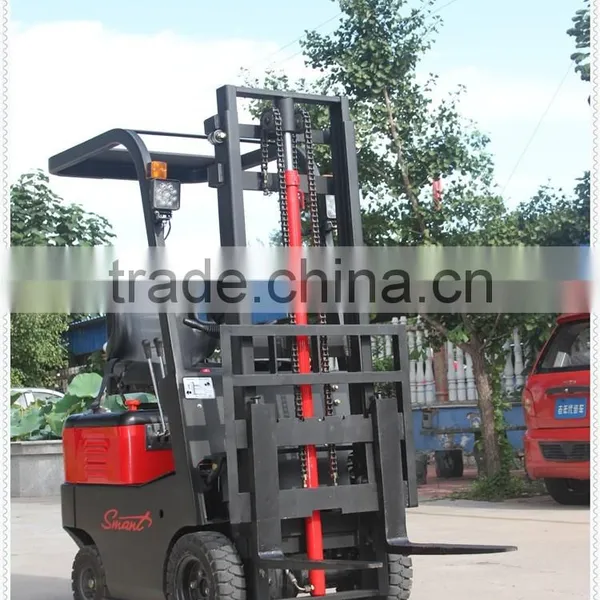

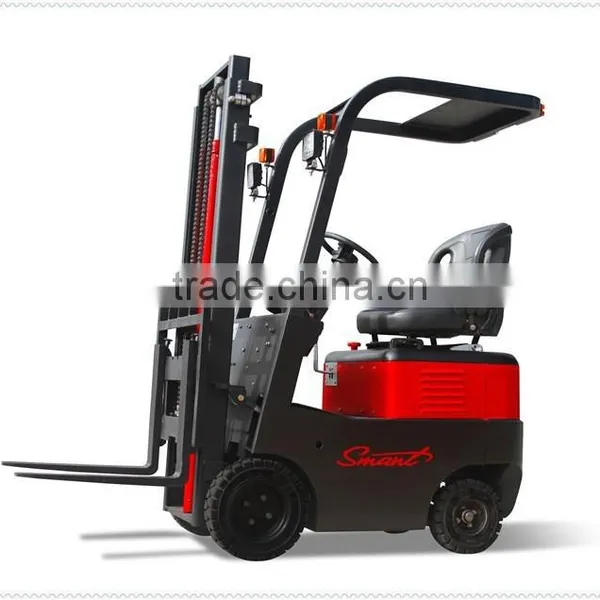

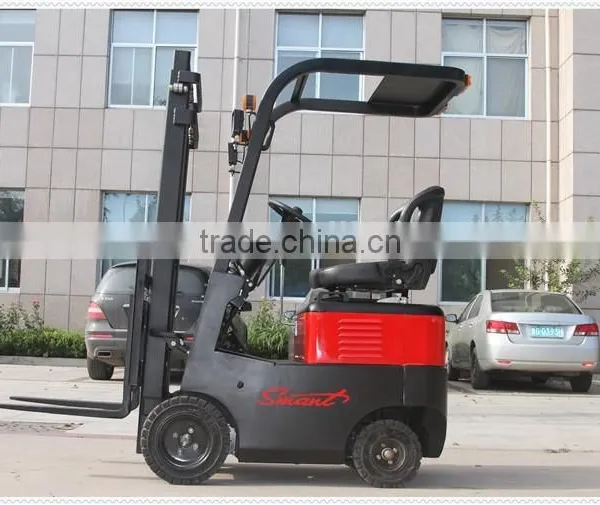

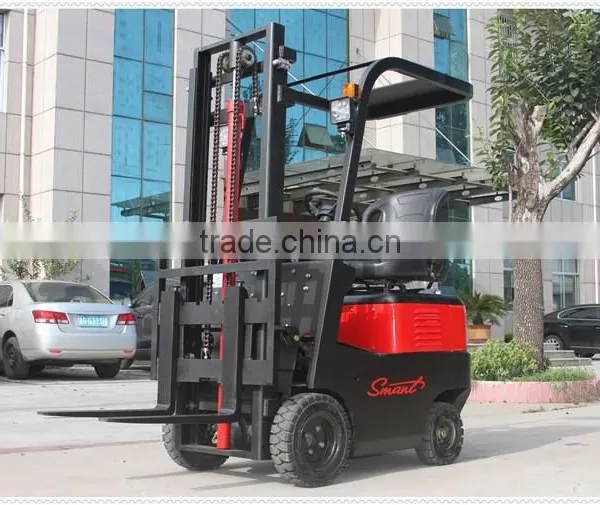

China Best Selling 750kg 48V 140Ah Small Electric Harga Forklift Baru

ANSION ELECTRIC FORKLIFT TRUCK

FB075

Power type

Battery

Rated lifting capacity

750 kg

Loading center

300 mm

Driving type

Seat , overhead guard

Full length (with fork)

2040 mm

Full length (without fork)

1400 mm

Full width

800 mm

Full height (unrisen mast)

1680 mm

Full height (Overhead guard)

1820 mm

Full height (Max. Working height)

3070 mm

Distance from the seat face to the top of

 overhead guard

970 mm

Wheel base

860 mm

Front overhang

300 mm

Rear overhang

290 mm

Front wheel tread

700 mm

Rear wheel tread

668 mm

Min.ground clearance

90 mm

Standard lifting height

2500 mm

Free lifting height

80 mm

Fork adjusting scope

703 / 190 mm

Min. Turning radius (outside)

1200 mm

Min. right angle aisle width

1600 mm

Mast tilting angle (forward / backward)

6 / 12 ^o

Max. Lifting speed (unload)

400 mm/s

Max. Lifting speed (load)

350 mm/s

Max. Travel speed (unload)

13 km/h

Max. Travel speed (load)

12 km/h

Max. Grade ability (load)

≤ 10 %

Standard machine weight (unload)

1100 kg

Wheel x = driving wheel (front / rear)

2x/2

Front tyre

15x4 1/2-8

Rear tyre

3.50-5

Service brake

Hydraulic pedal

Parking brake

Mechanical manual

Battery voltage / volume

48 V / 140 Ah

Driving generator power

AC 3 kW

Oil pump generator power

DC 3 kW
