2 ton tcm forklift manual dealers with side shift fork and three meters mast

Name: 2 ton tcm forklift manual dealers with side shift fork and three meters mast
Brand: ANSION
Availability: InStock

FOB Price

US$ 5,999 - 8,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ANSION	Model Number	CPCD20FR
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	2000 kg	Max. Lifting Height	3000 mm
Min. Lifting Height	85mm	Fork Length	1220 mm
Fork Width	125 mm	Overall Dimensions	361012252175mm
Certification	CE	After-sales Service Provided	No overseas service provided

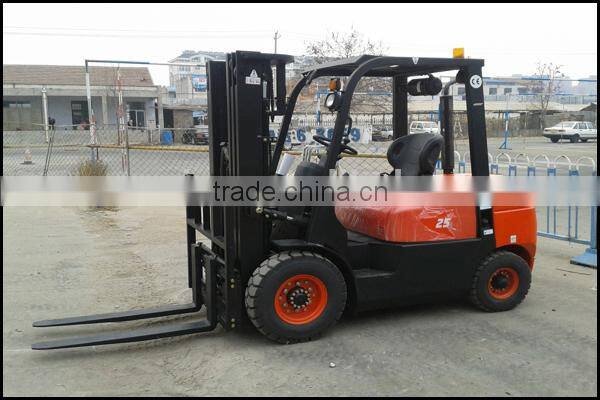

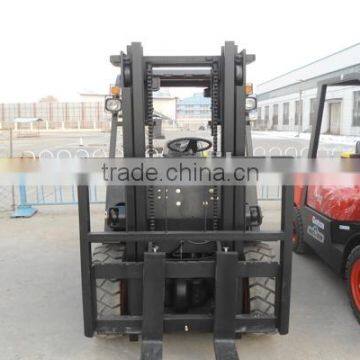

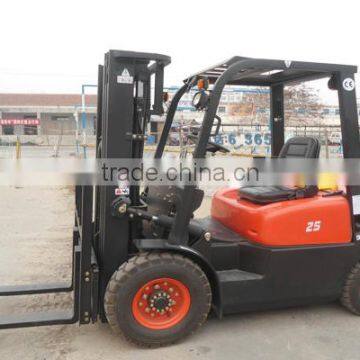

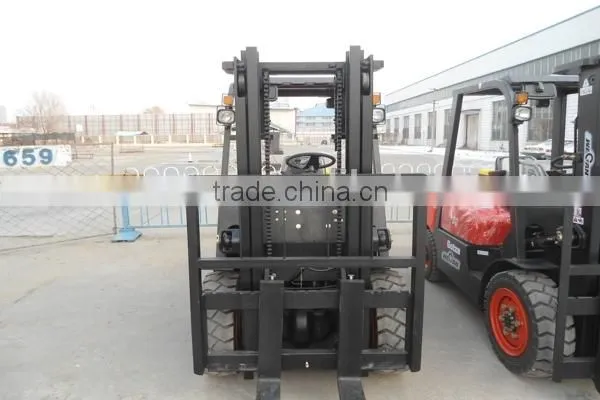

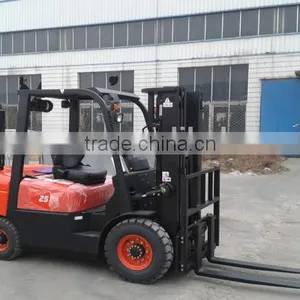

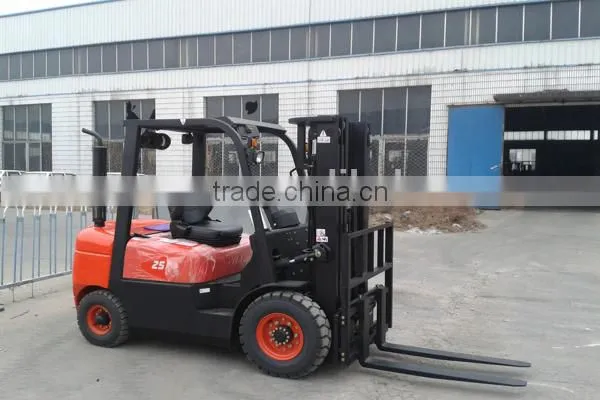

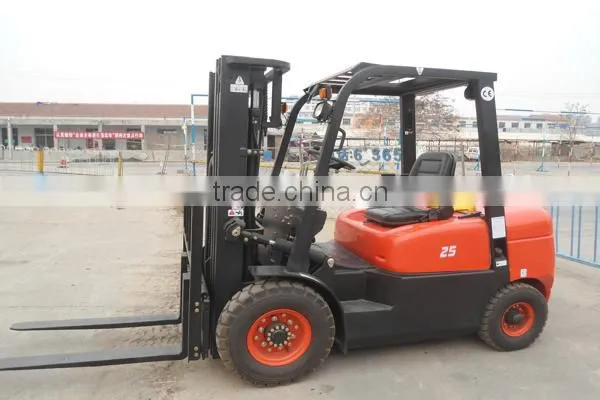

ANSION 2 ton diesel manual forklift truck CPCD20FR

Product Description

General		Brand	ANSION
	1	Model		CPCD20FR	CPCD25FR
	2	Rated capacity	kg	2000	2500
	3	Load center	mm	500	500
	4	Power type		Diesel	Diesel
	5	Transmission		Hydraulic/Mechanical
Dimensions	6	Lifting height	mm	3000	3000
	7	Free lifting height	mm	60	60
	8	Turning radius	mm	2450	2450
	9	Overall length	mm	3605	3605
	10	Overall width	mm	1160	1160
	11	Overall height (mast lowered)	mm	2095	2095
	12	Overall height (mast raised)	mm	4080	4080
	13	Overall height (overhead guard)	mm	2095	2095
	14	Fork length	mm	1070	1070
	15	Fork width	mm	100	122
	16	Fork thickness	mm	40	40
Performance	17	Max. driving speed (with/without load)	km/h	17/19	17/19
	18	Max. lifting speed (with load)	mm/s	400	400
	19	Max. traction (with/without load)	kn	14/9	15/10
	20	Gradeability (with/without load)	%	15/20	15/20
	21	Tilting angles (forward/backward)	°	6/12	6/12
	22	Service weight	kg	3320	3600

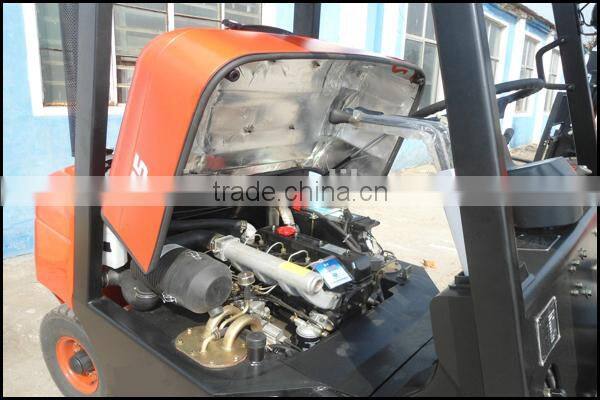

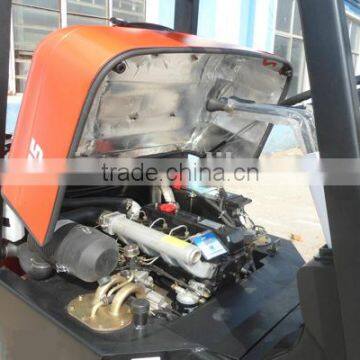

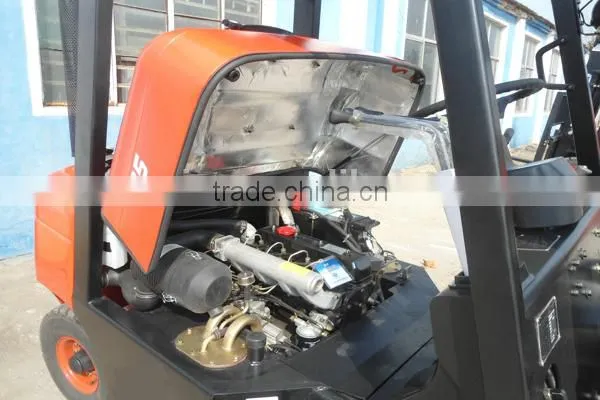

Engine	23	Engine model		490BPG engine	490BPG engine
	24	Power	kw	39	39
	25	Rated speed	rpm	2650	2650
	26	Displacement	L	2.67	2.67
	27	No. of cylinder		4	4
Wheel	28	Front overhang	mm	451	451
	29	Wheel base	mm	1640	1640
	30	Front tread	mm	970	970
	31	Rear tread	mm	970	970
	32	Front tire		7.00-12	7.00-12
	33	Rear tire		6.00-9	6.00-9
