ANSION Factory Supply 1 Ton to 3 Ton Electric Forklift Truck

Name: ANSION Factory Supply 1 Ton to 3 Ton Electric Forklift Truck
Brand: ANSION
SKU: 140140708
Availability: InStock

Qingzhou Ansion Machinery Co., Ltd.

US$ 9,999 - 11,999 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ANSION

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name ANSION

Model Number CPD30

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 3000 kg

Max. Lifting Height 3000 mm - 4000 mm

Min. Lifting Height 50 mm

Fork Length 1220 mm

Fork Width 125 mm

Overall Dimensions 3705x1240x2200 mm

Certification CE

After-sales Service Provided Overseas third-party support available

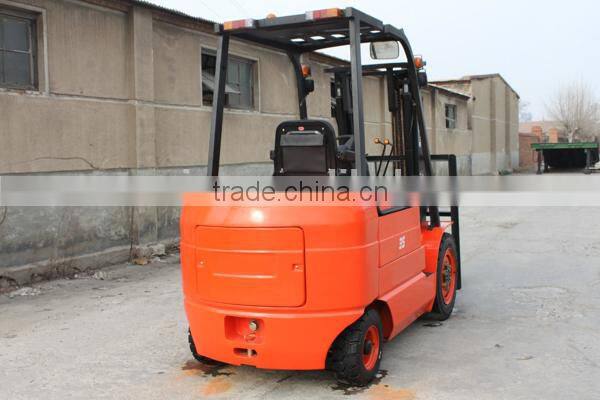

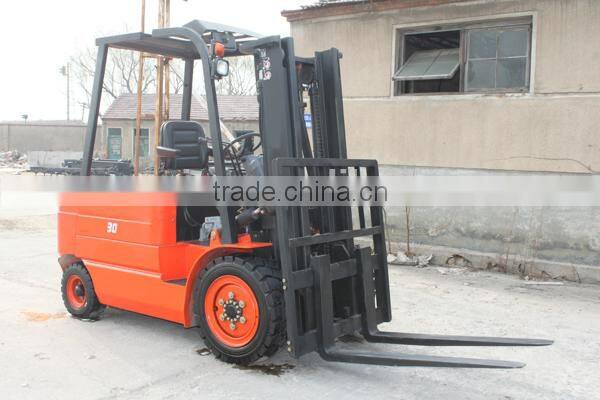

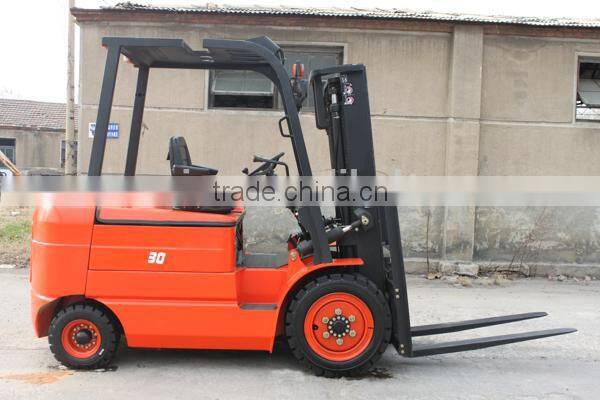

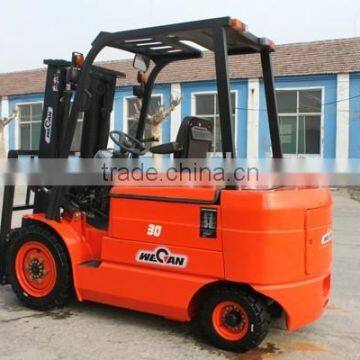

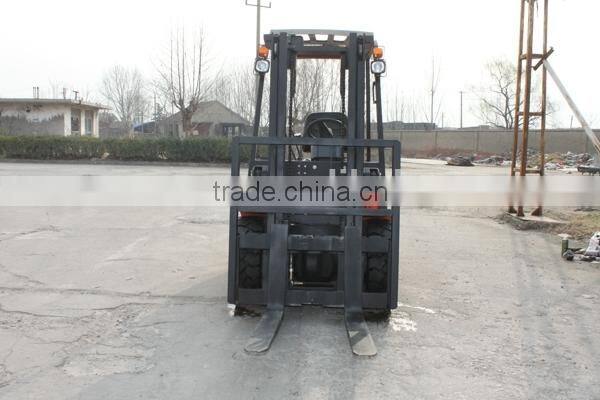

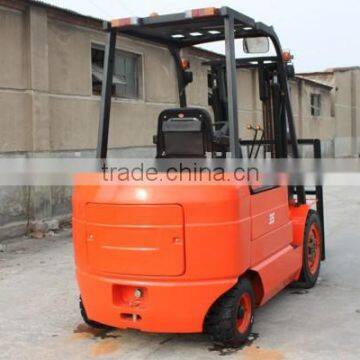

ANSION factory supply 1 ton to 3 ton electric forklift truck

CE certificate and ISO9001 certificate are awarded.

China material handling equipment 3 ton battery forklift truck

General		Brand		ANSION
	1	Model		CPD30C
	2	Rated capacity	kg	3000
	3	Load center	mm	500
	4	Power type		Battery
Dimensions	5	Lifting height	mm	3000
	6	Free lifting height	mm	80
	7	Turning radius	mm	2350
	8	Overall length	mm	3705
	9	Overall width	mm	1240
	10	Overall height (mast lowered)	mm	2200
	11	Overall height (mast raised)	mm	4260
	12	Overall height (overhead guard)	mm	2200
	13	Fork length	mm	1220
	14	Fork width	mm	125
	15	Fork thickness	mm	45
Performance	16	Max. driving speed (with/without load)	km/h	14/16
	17	Max. lifting speed (with load)	mm/s	290
	18	Max. traction (with load)	kn	12
	19	Gradeability (with load)	%	15
	20	Tilting angles (forward/backward)	°	6/12
	21	Service weight	kg	4900
Motor	22	Traction motor		XQ-10-1C
Motor	23	Lifting motor		XQD-13-3S

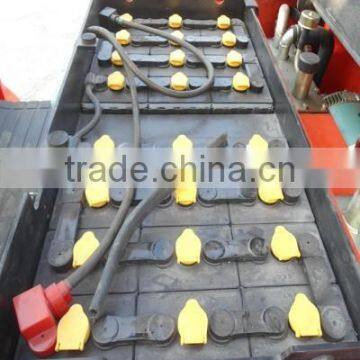

Battery	24	Battery type		40-DA-500
Battery	25	Battery voltage/capacity	V/Ah	80/500
Wheel	26	Front overhang	mm	494
	27	Wheel base	mm	1700
	28	Front tread	mm	1000
	29	Rear tread	mm	980
	30	Front tire		28×9-15
	31	Rear tire		18×7-8
