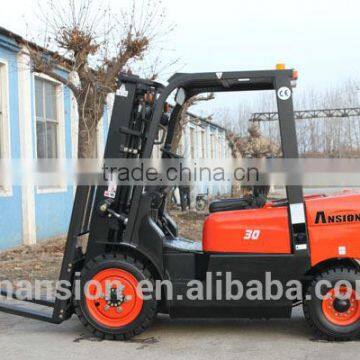

New material handling equipment 3 ton hydraulic diesel forklift price

FOB Price

USD $7,150 - $8,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ANSION	Model Number	CPCD30FR
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	3000 kg	Max. Lifting Height	3 ~ 7 meters
Min. Lifting Height	85mm	Fork Length	1220 mm
Fork Width	125 mm	Overall Dimensions	3800x1230x2110mm
Certification	CE	After-sales Service Provided	No overseas service provided

Diesel type forklift truck CPCD30FR with 3 ton lifting capacity

Engine : Standard Chinese 498 diesel engine [ Japanese ISUZU C240 engine (EuroIII 34.5kw diesel) optional ]
Fork : Standard 1220 mm fork [ Clamp / Bucket / Longer fork / Crane / Rotary optional]
Side shifter : Optional
Rated load : Standard 3 ton rated lifting capacity
Transmission : Hydraulic type
Mast : Standard 2 stage 3 meters master [ 3 stage mast ( 4.5 / 5 / 6 / 7 meters) optional ]
Tires : Front 28x9-15 and rear 6.50-10

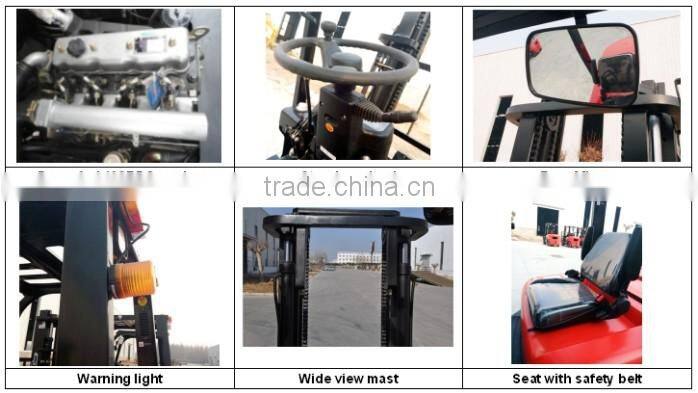

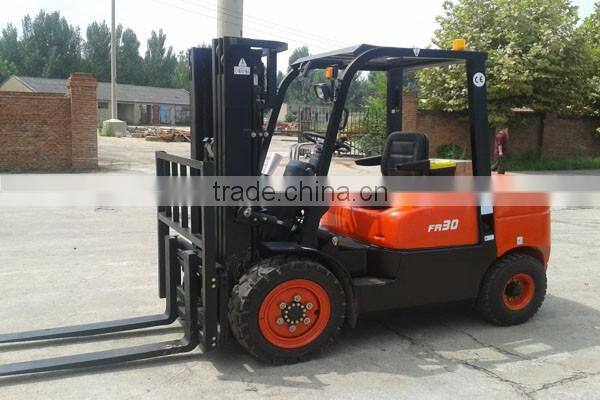

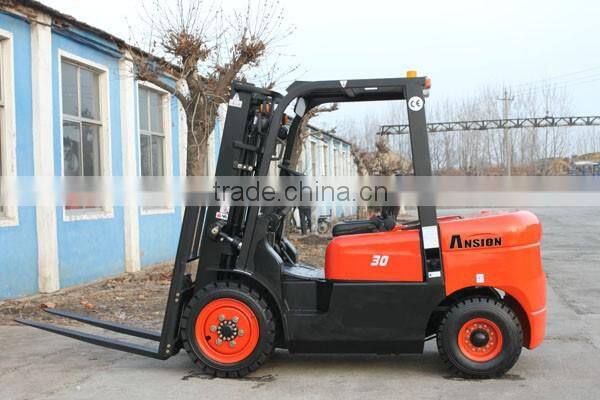

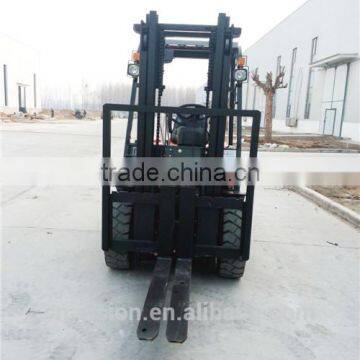

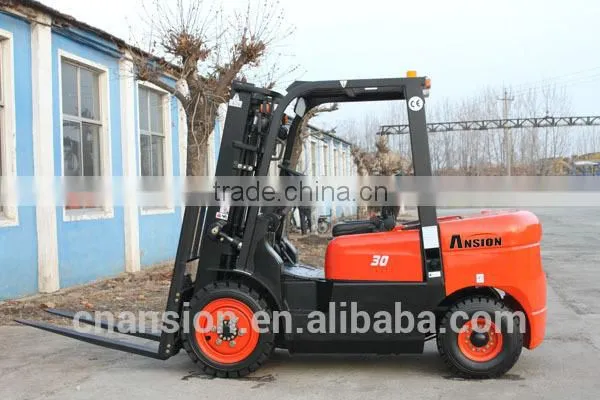

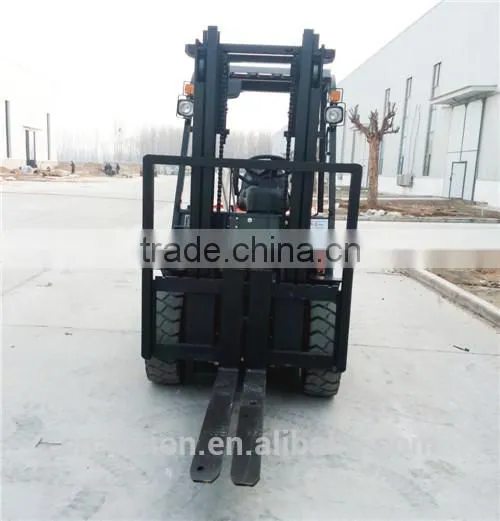

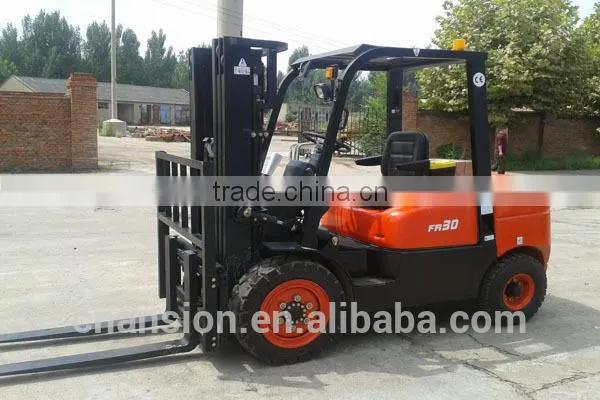

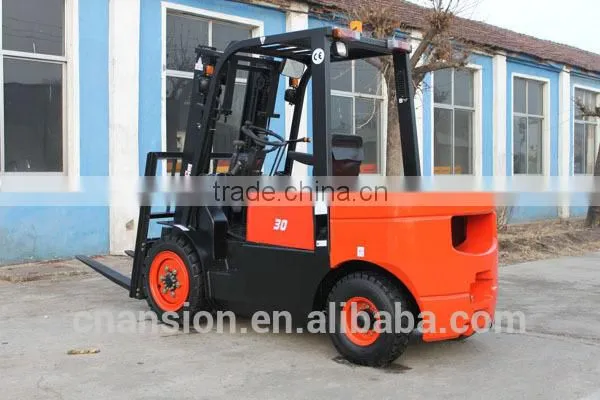

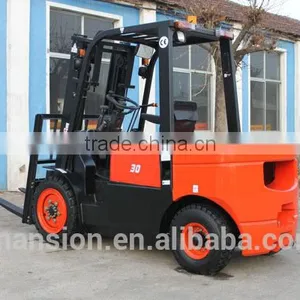

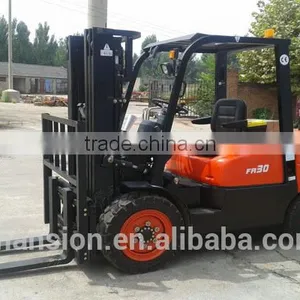

Real Picutres Show

Product Description

	1	Model		CPCD30FR	CPCD35FR
	2	Rated capacity	kg	3000	3500
	3	Load center	mm	500	500
	4	Power type		Diesel	Diesel
	5	Transmission		Hydraulic/Mechanical
Dimensions	6	Lifting height	mm	3000	3000
	7	Free lifting height	mm	80	80
	8	Turning radius	mm	2500	2500
	9	Overall length	mm	3800	3800
	10	Overall width	mm	1230	1230
	11	Overall height (mast lowered)	mm	2095	2095
	12	Overall height (mast raised)	mm	4080	4080
	13	Overall height (overhead guard)	mm	2110	2110
	14	Fork length	mm	1220	1220
	15	Fork width	mm	125	125
	16	Fork thickness	mm	45	50
Performance	17	Max. driving speed (with/without load)	km/h	18/20	17/19
	18	Max. lifting speed (with load)	mm/s	400	375
	19	Max. traction (with/without load)	kn	15.5/10.5	16/11
	20	Gradeability (with/without load)	%	15/20	15/20
	21	Tilting angles (forward/backward)	°	6/12	6/12
	22	Service weight	kg	4320	4580
Engine	23	Engine model		490BPG engine	490BPG engine
	24	Power	kw	39	39
	25	Rated speed	rpm	2650	2650
	26	Displacement	L	2.67	2.67
	27	No. of cylinder		4	4
Wheel	28	Front overhang	mm	465	465
	29	Wheel base	mm	1700	1700
	30	Front tread	mm	1000	1000
	31	Rear tread	mm	970	970
	32	Front tire		28x9-15	28x9-15
	33	Rear tire		6.50-10	6.50-10
