4WD Multi Purpose Hydraulic Front 4 in 1 Bucket Backhoe Loader

Name: 4WD Multi Purpose Hydraulic Front 4 in 1 Bucket Backhoe Loader
Brand: ANSION
SKU: 140140604
Availability: InStock

Qingzhou Ansion Machinery Co., Ltd.

US$ 33,000 - 38,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

ANSION

Model Number:

SAM388

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ANSION

Model Number SAM388

Place of Origin Shandong, China

Type Backhoe Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5910X 2275 X 3782(mm)

Rated Load 2500KG

Certification ISO9001

Warranty 12months

After-sales Service Provided Overseas service center available

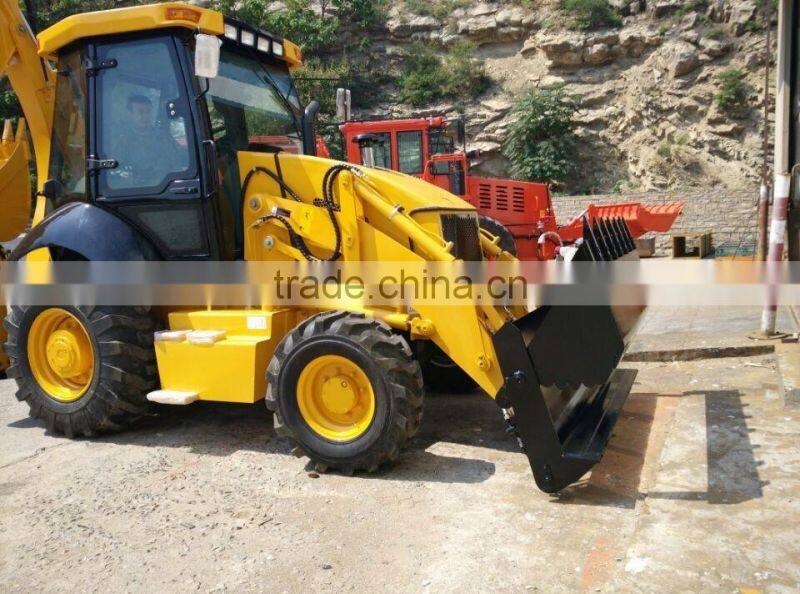

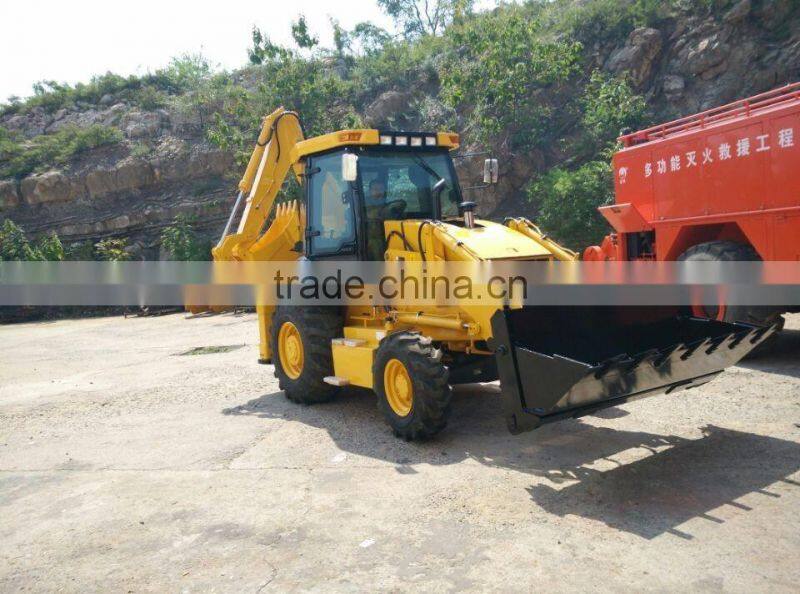

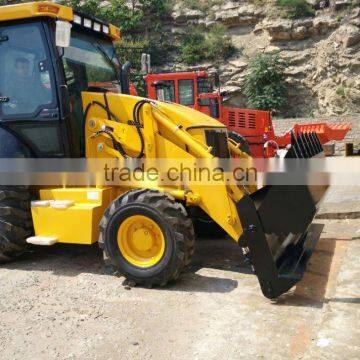

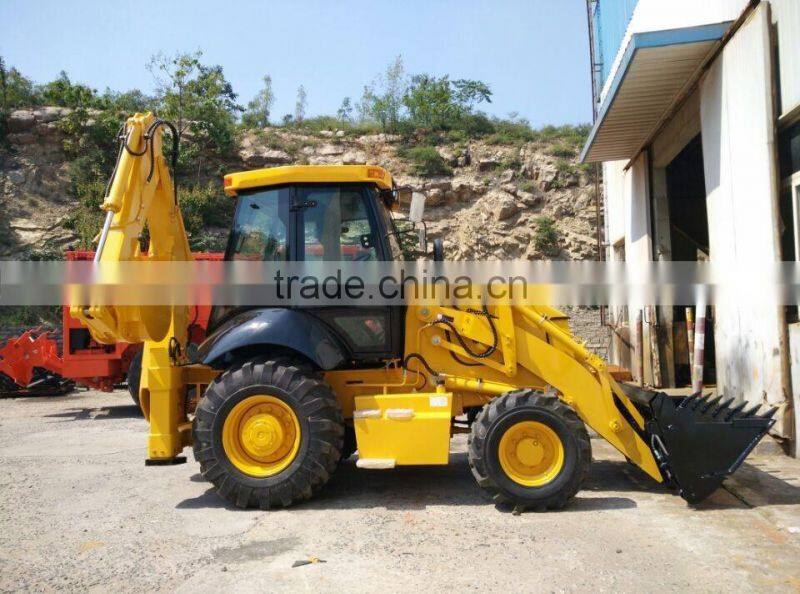

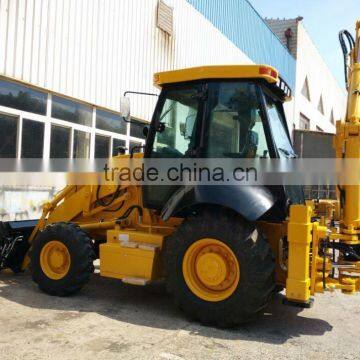

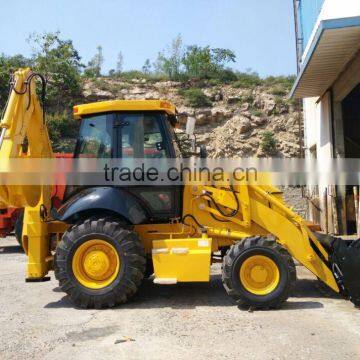

4WD Multi purpose hydraulic front 4 in 1 bucket backhoe loader

Main Specification

ANSION 4WD Backhoe Loader	SAM388 (Side shift)
Operating weight	8200 kg
Overall dimension	5910x2268x3760 mm
Operation	Hydraulic pilot joystick
Steering system	Articulated hydraulic
Min. Turning radius	5018 mm
Load performance
Rated load	2500 kg
Bucket capacity	1.0 m3 multi-purpose 4-in-1 bucket
Max. Dump height	2740 mm
Bucket auto level system	Yes
Breakout force	38 kN
Total cycling time	10.5 s

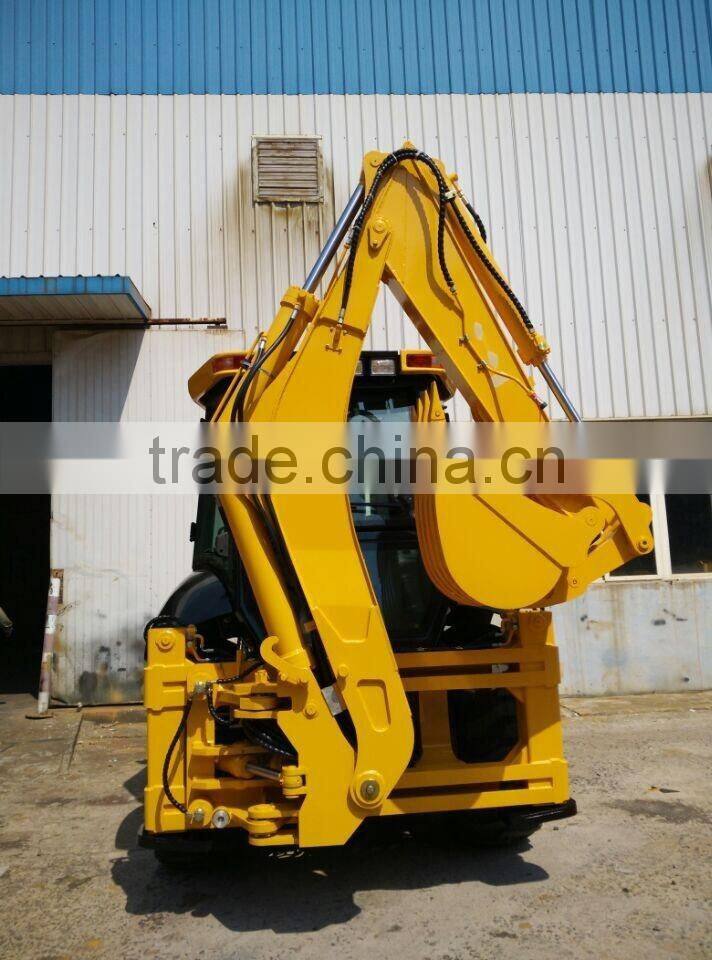

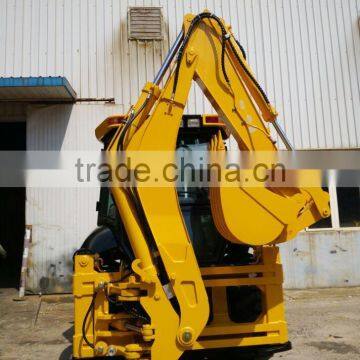

Backhoe performance
Bucket capacity	0.3 m3
Bucket digging force	46.5 kN
Rod digging force	31 kN
Max. Digging depth	4082 mm / 4500mm / 5500 mm
Engine
Model	CUMMINS
Type	Turbocharged, water cooled, 4 cylinders
Rated power	75kW (100HP)
Transmission
Gearbox	ITALY CARRARO electric control
Gear shift	Forward 4 and reverse 4
Axles	4-wheel-driving (4x4) ITALY CARRARO
Service brake	Air over hydraulic caliper
Parking brake	Manual
Tyres	Front 14-17.5 and rear 19.5L-24
Max. Travel speed	22 km/h
Tractive force	39 kN
