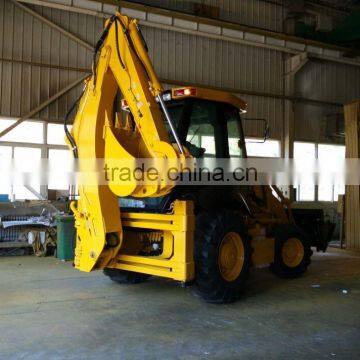

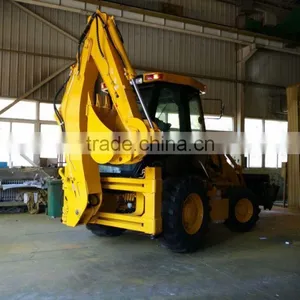

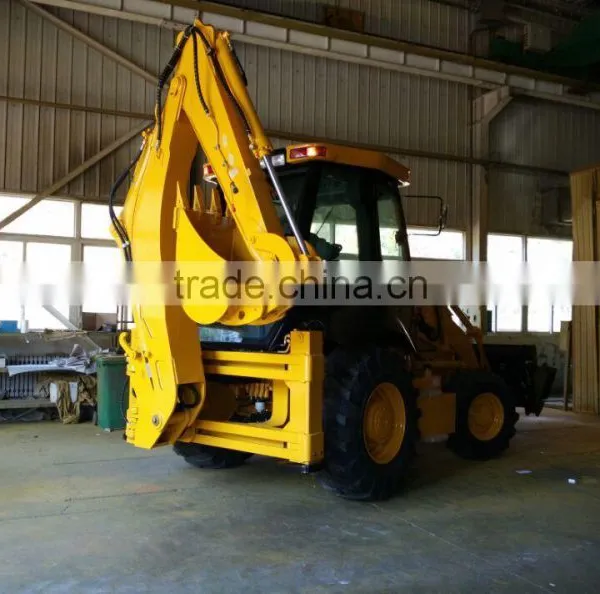

Help CenterBackhoe Loader SAM388 With 4-in-1 Multi-purpose Bucket and 100HP Engine
Related Products
-
WZ45-16 Diesel 4x4 Backhoe Loader With 0.8m3 Bucket and 60HP EngineUS$ 1 - 15,000MOQ: 1 Set -
Backhoe Loader With Rotary Pile Drilling Machine for SaleUS$ 1 - 39,999MOQ: 1 Set
-
Fast WZ45-16 50HP Compact Backhoe Loader for Heavy Digging WorksNegotiableMOQ: 1 Set
-
WZ45-16 4x4 80HP Backhoe Mini Excavator With Quick Attach BucketNegotiableMOQ: 1 Set
-
Agricultural 5ton 50HP 4x4 Compact Tractor With Loader and BackhoeUS$ 14,000 - 14,500MOQ: 1 Set
World's number one Perfect backhoe loader 3CX manufacturer
The Main Performance Parameter of Backhoe Loader 388 | ||||||
Overall Operating Weight |
8200KG |
Final Reducer |
Single Stage Final Reducer |
|||
Transport Dimension |
Rated Loader of Axle |
4/18.5t |
||||
L*W*H |
6150×2250×3763 mm |
Transmission System |
||||
Wheel base |
2200mm |
Torque Converter |
||||
Min. Ground Clearance |
300mm |
Model |
YJ280 |
|||
Bucket Capacity |
1.0m3 |
Type |
Single-stage Three Elements |
|||
Breakout Force |
38KN |
Max. Efficiency |
84.4% |
|||
Loading Lifting Capacity |
2500KG |
Inlet Pressure |
0.4Mpa—0.55 Mpa |
|||
Bucket Dumping Height |
2742mm |
Outlet Pressure |
1.2Mpa—1.5 Mpa |
|||
Bucket Dumping Distance |
1062mm |
Cooling Method |
Oil-cooling Pressure Circulation |
|||
Digging Depth |
52mm |
Gearbox |
||||
Backhoe Capacity |
0.3 m3 |
Model |
Original Carraro |
|||
Max. Digging Depth |
4082mm |
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
|||
Swing Angle of Excavator Grab |
190o |
Gears |
Two Gears Ahead, Two Gears Astern |
|||
Max. Pulling Force |
39KN |
Max.Speed |
22Km/h |
|||
Engine |
Tyre |
|||||
Brand |
Deutz |
Model |
14-17.5/19.5L-24 |
|||
Type |
In Line Direct injection Four-Stroke and Injection Combustion Chamber |
Pressure of Front wheel |
0.22 Mpa |
|||
Cylinder-Inside Diameter*Stroke |
4-110×120 |
Pressure of Back Wheel |
0.22 Mpa |
|||
Rated Power |
75KW |
Brake System |
||||
Rated Speed |
2400r/min |
Service Brake |
Air Over Oil Caliper Brake |
|||
Min. Fuel Consumption |
≤216g/km.h |
External Type |
||||
Max.Torque |
≥261.7N.M/1800r/min |
Self-regulation |
||||
Displacement |
4.4L |
Self-balance |
||||
Steering System |
Emergency Brake |
Operation Power Implementing brake |
||||
Model of Steering Device |
BZZ5-250 |
Manual Operation Power Terminating Brake |
||||
Steering Angle |
±36 o |
Hydraulic System |
||||
Min. turning radius |
6581mm |
Digging Power of Excavator Grab |
46.5KN |
|||
Pressure of the system |
12Mpa |
Digging Power of Dipper |
31KN |
|||
Axle |
Bucket Lifting Time |
5.4S |
||||
Manufacturer |
Feicheng Axle Factory |
Bucket Lowering Time |
3.1S |
|||
Main Transmission Type |
Double Reduction |
Bucket Discharge Time |
2.0S |
|||
The parameters are subject to change without notice | ||||||
1 |
Quick coupler |
8 |
Cummins engine |
2 |
Fork |
9 |
Deutz engine |
3 |
Clamp |
10 |
VDO instruments |
4 |
Grasper |
11 |
Carraro transmission |
5 |
Hammer |
12 |
Air condition |
6 |
Driller |
13 |
ROPS |
7 |
Multi-purpose bucket |
14 |
heater |
Please feel free to send your questions to us !
