Home > Products > Backhoe Loader > WZ45-16 diesel 4x4 backhoe loader with 0.8m3 bucket and 60HP engine

WZ45-16 diesel 4x4 backhoe loader with 0.8m3 bucket and 60HP engine

Name: WZ45-16 diesel 4x4 backhoe loader with 0.8m3 bucket and 60HP engine
Brand: ANSION
Price: USD $1 - 15,000 / Set

FOB Price

USD $1 - $15,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	ANSION	Model Number:	WZ45-16
Place of Origin:	Shandong, China	Type:	Backhoe Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	510019802900 mm	Rated Load:	1600 kg	Certification:	ISO9001
Warranty:	12 months	After-sales Service Provided:	No overseas service provided

ANSION 4x4 backhoe loader WZ45-16

Main Specification

MACHINERY	BACKHOE LOADER
MODEL	WZ45-16
LOADER CAPACITY
Bucket capacity	0.8 m3
Quick hitch	Standard
Rated load	1600 kg
Max. Dump height	2700 mm
Max. Dump reach	1000 mm
Boom lifting time	3.5 s
Total cycling time	7 s
BACKHOE CAPACITY
Bucket capacity	0.2 m3
Max. Digging depth	3400 mm
Max. Digging height	5000 mm
Max. Digging radius	4600 mm
Outrigger	Center pivot
ENGINE
Model	XINCHAI 498
Rated power	45 kW (60HP)
TRANSMISSION
Transmission	Countershaft Power shift
Axles	4x4 ( 4-wheel-driving )
Tires	20.5-16
Max. Travel speed	28 km/h
OVERALL PARAMETERS
Overall dimension	510019802900 mm
Operating weight	5000 kg
Min. Turning radius	4800 mm
Wheel base	2000 mm
Wheel tread	1530 mm
Min. Ground clearance	260 mm
Max. Grade ability	25%
Max. Working pressure	16~18 MPa
Air conditioner	Standard
Operation type	Hydrulic pilot joystick control

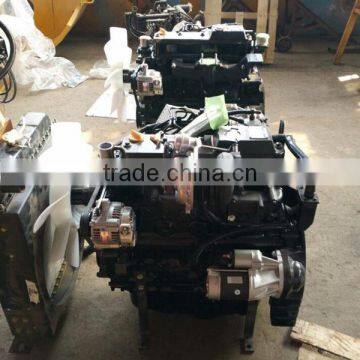

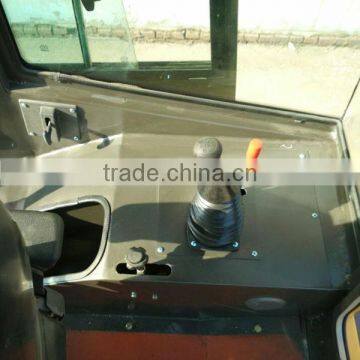

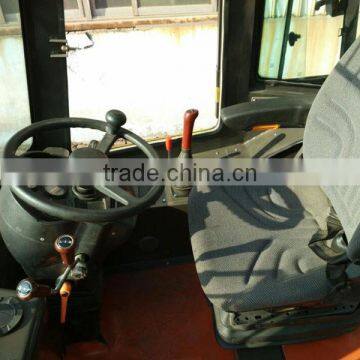

Real Picutres Show
