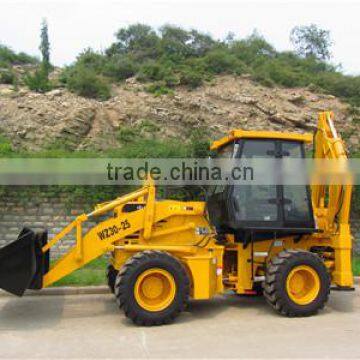

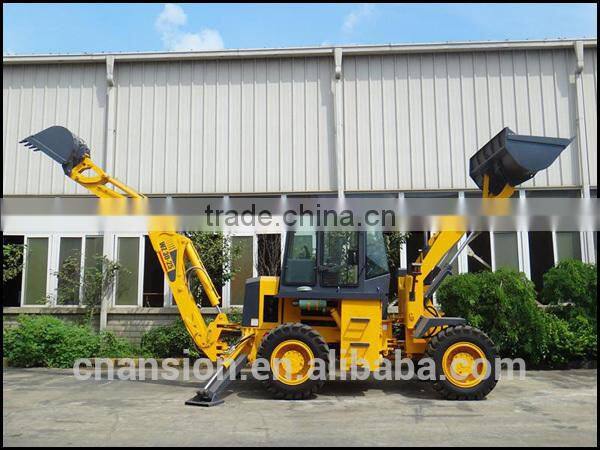

WZ30-25 Backhoe Loader/backhoe Loader With Price/mini Tractor Backhoe Loader

WZ30-25 Dimension technological parameters

1. Overall Dimension

1  Length*Width * Height                5900X 2200 X 3769(mm)

2 Cab roof height                                      2900(mm)

2  Wheel base                                                 2250(mm)

3 Track                                                      1640(mm)

4 Min. ground clearance                                 300(mm)

2, Main Technical Specification

1 system pressure

  load hydraulic system                                18Mpa

  dig hydraulic  system                                20Mpa

  steering hydraulic system                              12Mpa

2 system flow                                           120L/min

3 four wheel drive ,whole hydraulic system

4 total operating weight                                   7600kg

5maximum speed                                        22Km/h

6maximum gradient capacity                          30°

1 loading bucket capacity                            1m3

2 rated loading                                        2500KG

3maximum articulated height of bucket               3400(mm)

4 bucket discharge height                              2795(mm)

5bucket discharge distance                             1048(mm)

6loading lift capacity                                  25KN

7bucket hydraulic translation function                 yes

8bucket lift time                                      6.8s

9bucket lower time                                    2.5s

10bucket discharge time                                1.2s

11maximum tractive force                                 39KN

12 maximum breakout force                              38KN

1backacter bucket capacity                                 0.3m3

2backacter discharge height                            3878(mm)

3maximum digging depth                             4080(mm)

4maximum digging radius                             5688(mm)

5bucket slewing angle                                190°

6bucket digging capacity                                46KN

7bucket stick digging capacity                            31KN

3, Diesel engine

1model                    4BTA3.9 C100   YTR4108G60,1

2type  turbocharging fourstroke

3rated power               74KW/100HP             55KW/74HP

4 rated speed                         2200 r/min     24002200 r/min

4cylinder internal diameter           4,110       4,108

5maximum torque                      310NM      261.7N.M/1800R/MIN

6minimum fuel consumption       245g/kw.h     216 g/kw.h

7displacement                             4.5L          4.4L

4,Transmission system

1model of hydraulic pump       fixed shaft power shift transmission

2 gear shift               2forward shift 2 reverse shift

3torque                               YJ 280

4drive pump                            CDXaf3016 IL

5flow                                      16ml/r

6 work pump                        CBGj2063

7flow                                     63ml/r
