Specifications
Titanium ball bearing 63201.Gcr15 material
2.Suitable for machinery
3.Support high loads
4.ISO:9001:2000

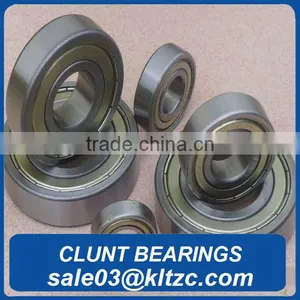

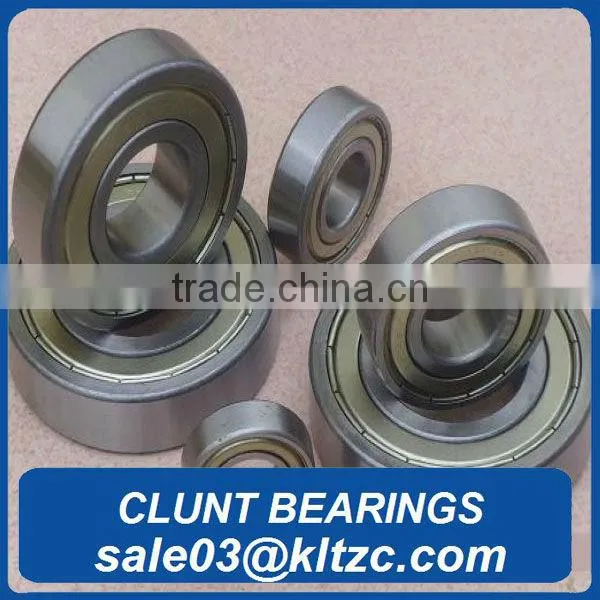

Original factory Titanium ball bearing 6320-2Z
Specifications of titanium ball bearing 6320-2z
| Bearing Name | Titanium ball bearing 6320-2Z |
| New Model | 6320-2Z |
| Old Model | 80320 bearing |
| product Model | Titanium ball bearing 6320-2Z |
| Category | Deep Groove Ball Bearings |
| Brand | CLUNT Titanium ball bearing |
| Inner Diameter d ( mm ) | 100 |
| Outer Diameter D ( mm ) | 215 |
| Thickness B ( mm ) | 47 |
| (Brand) | CLUNT titanium ball bearing | |
| (Series) | deep groove ball bearing | |
| (Bearing NO) | model number | 6320-2Z |
| new model | 6320-2Z | |
| old item | 6320-2Z | |
| (Standing inventory models) | 6320-2Z/C3,6320-2Z | |
|
(Basic size) |
inner diameter | 100 |
| outer diameter | 215 | |
| thickness | 47 | |
|
(KN) (Basic load ratings) |
dynamic load rating | 174 |
| static load rating | 140 | |
| (Limiting Speeds(rpm)) | oil lubrication | 6700 |
|
(Reference speeds(rpm)) |
grease lubrication | 3400 |
(Detail) |
6320-2Z | |
1 abstract of titanium ball bearing
Deep groove ball bearing is most common in rolling bearing a type. The basic type of deep groove ball bearings by a case and a inner circle, a group of steel ball and a group of keep frame composition. Deep groove ball bearing types have single and double row two separate, deep groove ball bearing type code for 6, double row deep groove ball bearing code for four. Its simple structure, easy to use, is the most common production, the most widely used kind of bearing.
2 features of titanium ball bearing
Deep groove ball bearing is the most representative of rolling bearing, used widely. Suitable for high speed of operation, high speed even and very durable, need not often maintenance. These bearings are small friction coefficient, extreme high speed, simple structure, low cost, easy to manufacture high manufacturing precision.
Application: automotive components, electric motors, machinery, bicycle
1) High accuracy
2) Competitive price
3) OEM service
4) Free sample for first check
5) Low noise
6) Prompt Delivery
Deep groove ball bearings mainly take radial as well as take moderate axial load. They are with less coefficient of friction, high limiting speed, large size range and variations of structure.
A ball bearing is a type of rolling-element bearing which uses balls to maintain the separation between the moving parts of the bearing.
ball bearing is a type of rolling-element bearing which uses balls to maintain the separation between the moving parts of the bearing.
Ball bearings tend to have lower load capacity for their size than other kinds of rolling-element bearings due to the smaller contact area between the balls and races. However, they can tolerate some misalignment of the inner and outer races.
Compared to other rolling-element bearings, the ball bearing is the least expensive, primarily because of the low cost of producing the balls used in the bearing
Hot Model:
61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61820 61821 61822 61824 61826 61828 61834 61838 61840 61852 61860 61864 61872 61876 61880 61888 61892
61900 series
61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918 61919 61920 61921 61922 61924 61926 61928 61934 61936 61938 61940 61944 61948 61952 61960 61964 61968 61980 61984 61988 61992
16001 series
16002 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020 16021 16022 16024 16026 16028 16030 16032 16034 16038 16040 16052
6000 series
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092
6200 series
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 6244 6248 6252
6300 series
6300 6301 6302 6303 6304 6305 66306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 63306332 6334
6403 series
6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422 6426
| Model | Size |
| 6321 | 105x225x49 |
| 6322 | 110x240x50 |
| 6324 | 120x260x55 |
| 6403 | 17x62x17 |
| 6404 | 20x72x19 |
| 6405 | 25x80x21 |
| 6406 | 30x90x23 |
| 6407 | 35x100x25 |
| 6408 | 40x110x27 |
| 6409 | 45x120x29 |
| 6410 | 50x130x31 |
| 6411 | 55x140x33 |
| 6412 | 60x150x35 |
| 6413 | 65x160x37 |
| 6414 | 70x180x42 |
