6319 Ball Bearing for Turbocharger
US$ 20.23 - 20.23
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
95,
Outside Diameter:
200,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Toy Wheel Ball Bearing 6318US$ 15 - 15MOQ: 30 Pieces -
Use in Fan Motor Bearing 6404 Deep Groove Bearing With Row MaterialUS$ 2 - 3MOQ: 100 Pieces
-
Axial Groove Bearing 6316-2RSUS$ 15.97 - 15.97MOQ: 20 Pieces
-
Insulation Deep Groove Ball Bearing 6009US$ 2 - 2MOQ: 10 Sets
-
Sell Bearing Gearbox Bearing 6321 SpecificationUS$ 5.2 - 5.2MOQ: 11 Pieces
Brand Name
CLUNT
Bore Size
95,
Outside Diameter
200,
Model Number
6319
Precision Rating
ABEC1 3 5 7 9
Seals Type
OPEN RS 2RS Z ZZ
Number of Row
Single Row
Place of Origin
Shandong, China
Specifications
6319 ball bearing for turbocharger1.Material Gcr15
2.Support high loads
3.Durable in use
4.ISO:9001;2000
6319 ball bearing for turbocharger
Specifications of 6319 ball bearing for turbocharger
| Ball Bearing Type | Deep Groove | |
| Cage Material | Steel | |
| Number Of Rows | 1 | |
| Inside Diameter | 95mm | |
| Outside Diameter | 200mm | |
| Race Width | 45mm | |
| End Type | Open | |
| Race Type | Plain | |
| Bore Type | Parallel | |
| Static Load Rating | 118kN | |
| Dynamic Load Rating | 159kN | |
| Reference Speed | 7000rpm | |
| Limiting Speed | 4500rpm | |
| Maximum Speed - Grease | 3200rpm | |
| Maximum Speed - Oil | 3800rpm |
Introductions of ball bearing for turbocharger
Deep groove ball bearings are inseparable-bearing, it is simple in structure, easy to use, applicable to the characteristics of high-speed operation, the use of very wide range. Deep groove ball bearings to bear the main radial load, but also bear certain two-way axial load.
Ball bearings, also known as anti-friction bearings, are small metallic or ceramic spheres used to reduce friction between shafts and axles in a number of applications. They are often used in a series to absorb the weight placed on a moving part, or in individual cages to reduce friction in axle assemblies. Most are manufactured to meet very exacting standards of roundness, since any deformation can cause the moving parts to fail unexpectedly
Axial deep groove ball bearings comprise shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining; the ball and cage assembly and bearing washers can therefore be fitted independently of each other.
In addition to series with flat washers, there are also series with spherical housing locating washers for compensation of static misalignment. These designs are normally used in comjunction with support washers. Axial deep groove ball bearings are available in single and double direction designs.
Both designs can support high axial forces but must not be subjected to radial loads.
Metric Chrome Deep Groove Ball Bearing for turbocharger
| OPEN | DOUBLE SHIELDED | DOUBLE SEALED | FLANGED | SNAP RING | d | D | B | B1 |
| 692 | 692ZZ | 2 | 6 | 2.3 | 3 | |||
| MR63 | MR63ZZ | MF63ZZ | 3 | 6 | 2 | 2.5 | ||
| 683 | 683ZZ | F683ZZ | 3 | 7 | 2 | 3 | ||
| MR83 | MR83ZZ | MF83ZZ | 3 | 8 | 2.5 | 3 | ||
| 693 | 693ZZ | F693ZZ | 3 | 8 | 3 | 4 |
Metric Stainless Deep Groove Ball Bearing for turbocharger
| OPEN | DOUBLE SHIELDED | DOUBLE SEALED | FLANGED | SNAP RING | d | D | B | B1 |
| SSMR63 | SSMR63ZZ | SSMF63ZZ | 3 | 6 | 2 | 2.5 | ||
| SS683 | SS683ZZ | SSF683ZZ | 3 | 7 | 2 | 3 | ||
| SSMR83 | SSMR83ZZ | SSMF83ZZ | 3 | 8 | 2.5 | 3 | ||
| SS693 | SS693ZZ | SSF693ZZ | 3 | 8 | 3 | 4 | ||
| SSMR93ZZ | SSMF93ZZ | 3 | 9 | 2.5 | 4 | |||
| SS623 | SS623ZZ | SSF623ZZ | 3 | 10 | 4 | 4 |
Imperial Chrome Deep Groove Ball Bearing for turbocharger
| OPEN | DOUBLE SHIELDED | DOUBLE SEALED | FLANGED | SNAP RING | d | D | B | B1 |
| R144 | R144ZZ | FR144ZZ | 0.1250" | 0.2500" | 0.0937" | 0.1094" | ||
| R2-5 | R2-5ZZ | FR2-5ZZ | 0.1250" | 0.3125" | 0.1094" | 0.1406" | ||
| R2-6 | R2-6ZZ | FR2-6ZZ | 0.1250" | 0.3750" | 0.1094" | 0.1406" | ||
| R2 | R2ZZ | FR2ZZ | 0.1250" | 0.3750" | 0.1562" | 0.1562" | ||
| R2A | R2AZZ | FR2AZZ | 0.1250" | 0.5000" | 0.1719" | 0.1719" |
Imperial Stainless Deep Groove Ball Bearing for turbocharger
| OPEN | DOUBLE SHIELDED | DOUBLE SEALED | FLANGED | SNAP RING | d | D | B | B1 | |
| SSR144 | SSR144ZZ | SSFR144ZZ | 0.1250" | 0.2500" | 0.0937" | 0.1094" | |||
| SSR2-5 | SSR2-5ZZ | SSFR2-5ZZ | 0.1250" | 0.313" | 0.1094" | 0.1406" | |||
| SSR2-6 | SSR2-6ZZ | SSFR2-6ZZ | 0.1250" | 0.3750" | 0.1094" | 0.1406" | |||
| SSR2 | SSR2ZZ | SSFR2ZZ | 0.1250" | 0.3750" | 0.1562" | 0.1562" | |||
| SSR2A | SSR2AZZ | SSFR2AZZ | 0.1250" | 0.5000" | 0.1719" | 0.1719" | |||
Non-standard Deep Groove Ball Bearing for turbocharger
| OPEN | DOUBLE SHIELDED | DOUBLE SEALED | FLANGED | SNAP RING | d | D | B | B1 |
| 6201-8 | 6201-8ZZ | 6201-8 2RS | 12.7 | 32 | 10 | 10 | ||
| 6201-13 | 6201-13ZZ | 6201-13 2RS | 13 | 32 | 10 | 10 | ||
| 6202-8 | 6202-8ZZ | 6202-8 2RS | 12.7 | 35 | 11 | 11 | ||
| 6202-13 | 6202-13ZZ | 6202-13 2RS | 13 | 35 | 11 | 11 | ||
| 6202-14 | 6202-14ZZ | 6202-14 2RS | 14 | 35 | 11 | 11 |
Model numbers of ball bearing for trubocharger
| Bearing No. | Dimension (mm) | Mass | Bearing No. | Dimension (mm) | Mass | ||||
| d | D | B | (kg) | d | D | B | (kg) | ||
| 6300 ZZ 2RS NR | 10 | 35 | 11 | 0.053 | 6403 ZZ 2RS NR | 17 | 62 | 17 | 0.27 |
| 6301 ZZ 2RS NR | 12 | 37 | 12 | 0.06 | 6404 ZZ 2RS NR | 20 | 72 | 19 | 0.4 |
| 6302 ZZ 2RS NR | 15 | 42 | 13 | 0.082 | 6405 ZZ 2RS NR | 25 | 80 | 21 | 0.53 |
| 6303 ZZ 2RS NR | 17 | 47 | 14 | 0.115 | 6406 ZZ 2RS NR | 30 | 90 | 23 | 0.735 |
| 6304 ZZ 2RS NR | 20 | 52 | 15 | 0.144 | 6407 ZZ 2RS NR | 35 | 100 | 25 | 0.952 |
| 6305 ZZ 2RS NR | 25 | 62 | 17 | 0.232 | 6408 ZZ 2RS NR | 40 | 110 | 27 | 1.23 |
| 6306 ZZ 2RS NR | 30 | 72 | 19 | 0.36 | 6409 ZZ 2RS NR | 45 | 120 | 29 | 1.53 |
| 6307 ZZ 2RS NR | 35 | 80 | 21 | 0.457 | 6410 ZZ 2RS NR | 50 | 130 | 31 | 1.88 |
| 6308 ZZ 2RS NR | 40 | 90 | 23 | 0.63 | 6411 ZZ 2RS NR | 55 | 140 | 33 | 2.29 |
| 6309 ZZ 2RS NR | 45 | 100 | 25 | 0.814 | 6412 ZZ 2RS NR | 60 | 150 | 35 | 2.77 |
| 6310 ZZ 2RS NR | 50 | 110 | 27 | 1.07 | 6413 ZZ 2RS NR | 65 | 160 | 37 | 3.3 |
| 6311 ZZ 2RS NR | 55 | 120 | 29 | 1.37 | 6414 ZZ 2RS NR | 70 | 180 | 42 | 4.83 |
| 6312 ZZ 2RS NR | 60 | 130 | 31 | 1.73 | 6415 ZZ 2RS NR | 75 | 190 | 45 | 5.72 |
| 6313 ZZ 2RS NR | 65 | 140 | 33 | 2.08 | 6416 ZZ 2RS NR | 80 | 200 | 48 | 6.76 |
| 6314 ZZ 2RS NR | 70 | 150 | 35 | 2.52 | 6417 ZZ 2RS NR | 85 | 210 | 52 | 7.95 |
| 6315 ZZ 2RS NR | 75 | 160 | 37 | 3.02 | 6418 ZZ 2RS NR | 90 | 225 | 54 | 11.4 |
| 6316 ZZ 2RS NR | 80 | 170 | 39 | 3.59 | 6419 M | 95 | 240 | 55 | 13.4 |
| 6317 ZZ 2RS NR | 85 | 180 | 41 | 4.23 | 6420 M | 100 | 250 | 58 | 15 |
| 6318 ZZ 2RS NR | 90 | 190 | 43 | 4.91 | 6421 M | 105 | 250 | 58 | 15 |
| 6319 ZZ 2RS NR | 95 | 200 | 45 | 5.67 | 6422 M | 110 | 280 | 65 | 21.3 |
| 6320 ZZ 2RS NR | 100 | 215 | 47 | 7 | 6424 M | 120 | 310 | 72 | 29 |
| 6321 ZZ 2RS NR | 105 | 225 | 49 | 8.05 | 6426 M | 130 | 340 | 78 | 38 |
| 6322 M | 110 | 240 | 50 | 9.54 | |||||
| 6324 M | 120 | 260 | 55 | 12.4 | |||||
| 6326 M | 130 | 280 | 58 | 15.3 | |||||
| 6328 M | 140 | 300 | 62 | 18.5 | |||||
| 6330 M | 150 | 320 | 65 | 26.2 | |||||
| 6332 M | 160 | 340 | 68 | 28.6 | |||||
| 6334 M | 170 | 360 | 72 | 34 | |||||
| 6336 M | 180 | 380 | 75 | 41.9 | |||||
| 6338 M | 190 | 400 | 78 | 48.2 | |||||
| 6340 M | 200 | 420 | 80 | 54.6 | |||||
| 6344 M | 220 | 460 | 88 | 73.9 | |||||
| 6348 M | 240 | 500 | 95 | 94.4 | |||||
| 6352 M | 260 | 540 | 102 | 118 | |||||
| 6356 M | 280 | 580 | 108 | 144 | |||||

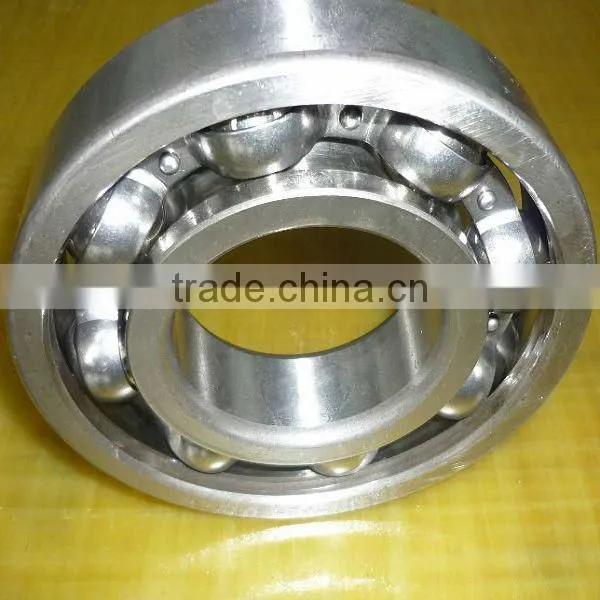

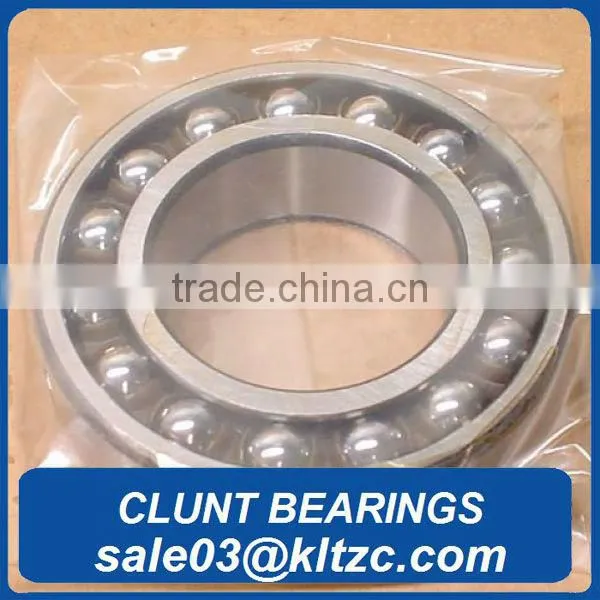

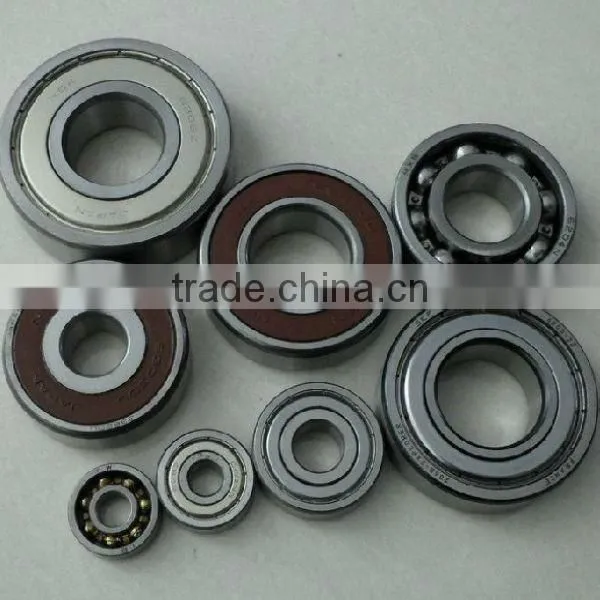

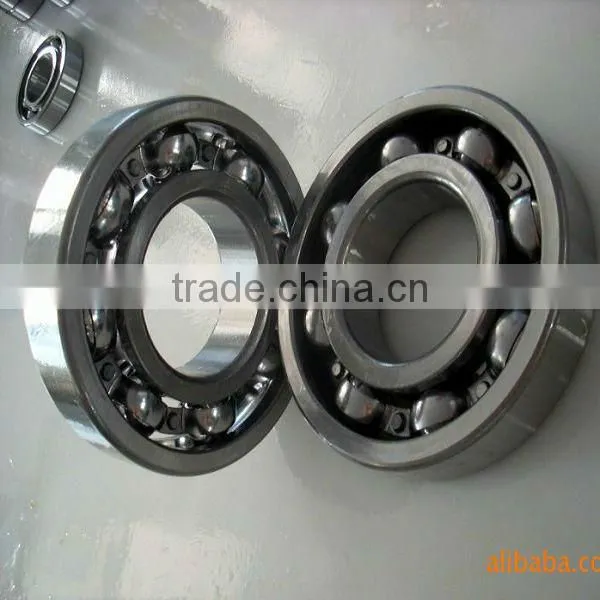

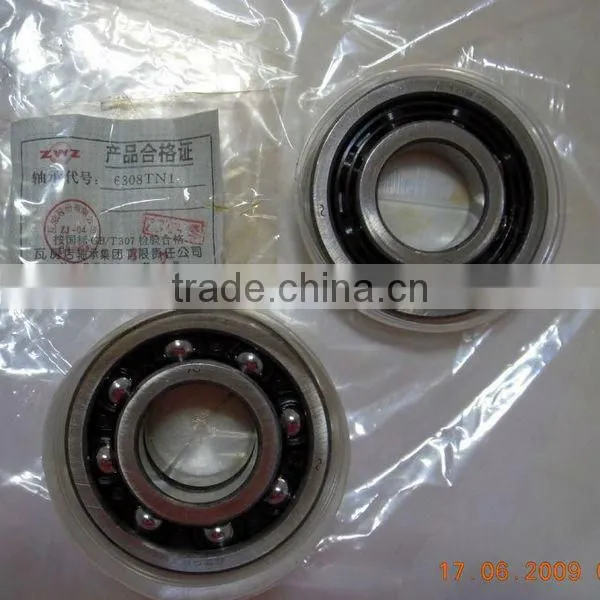

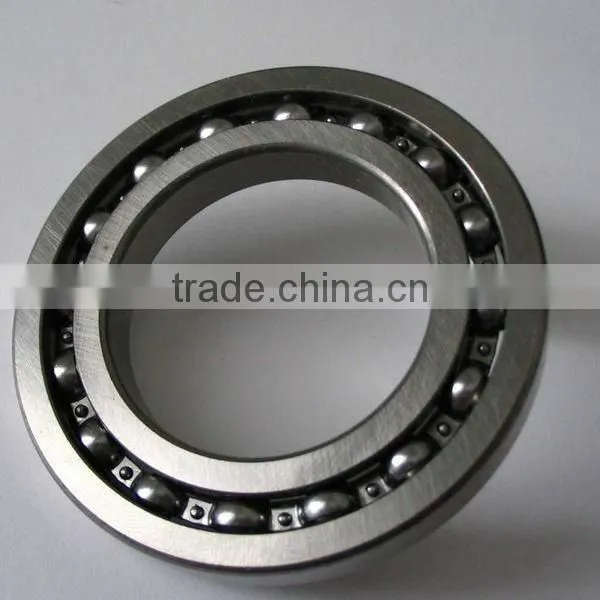

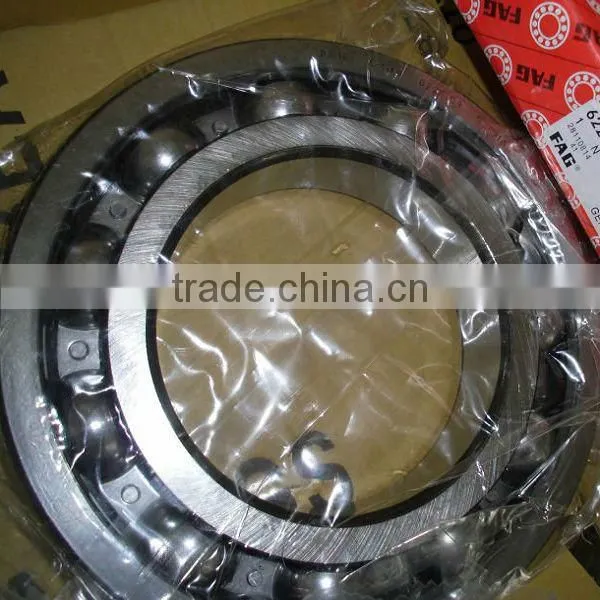

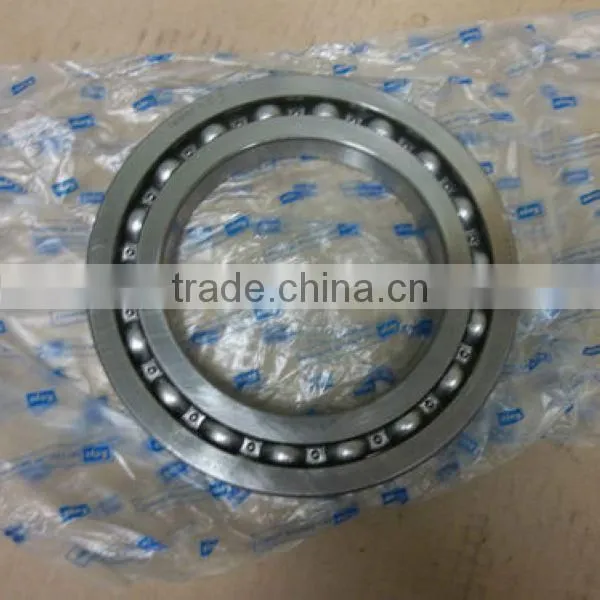

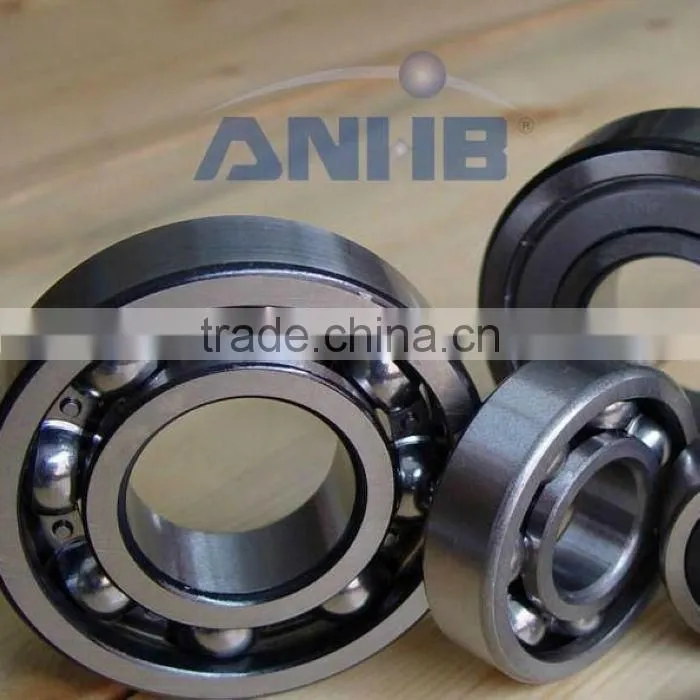

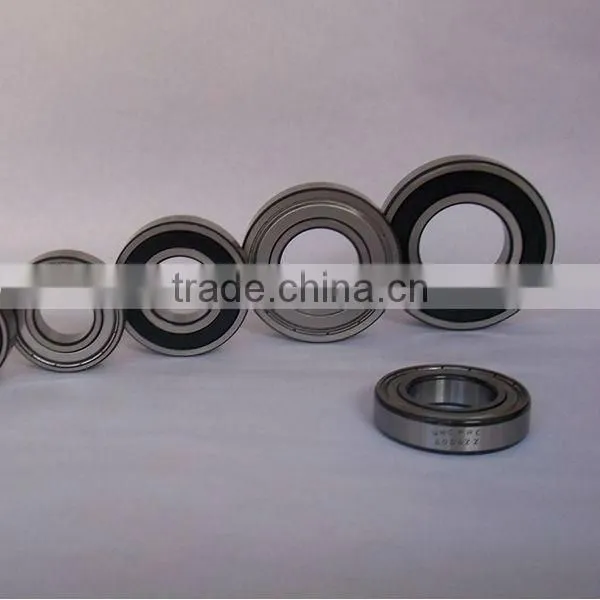

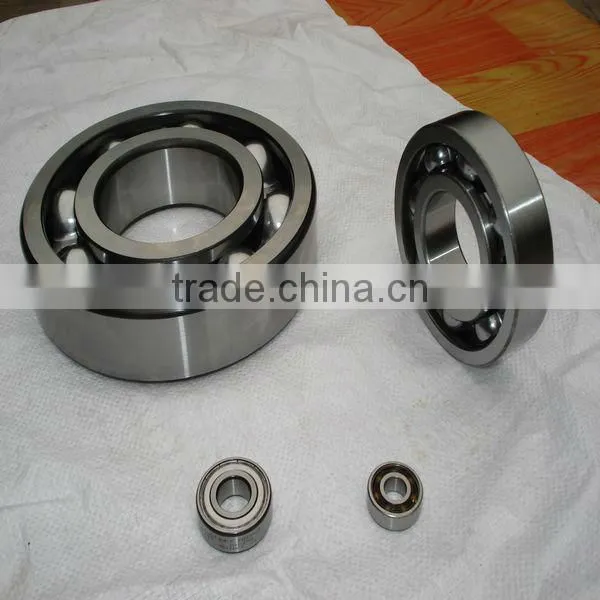

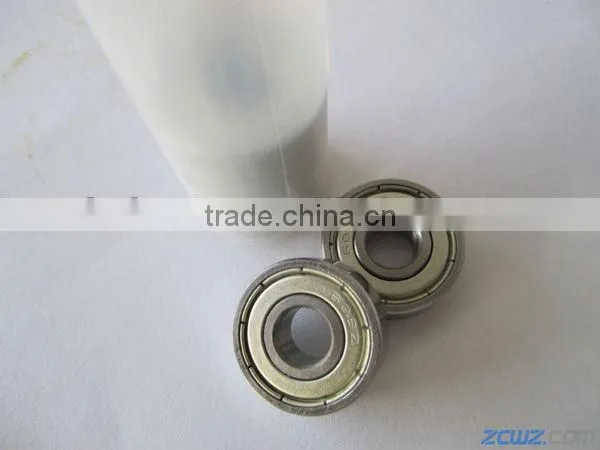

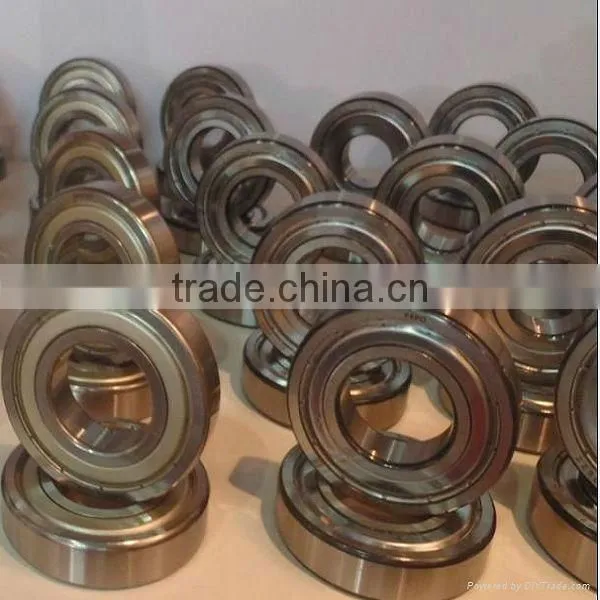

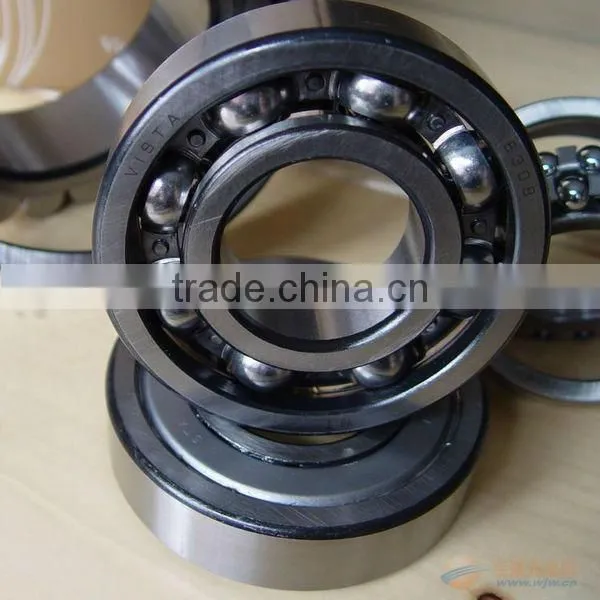

Pictures of ball bearing for turbocharger
