Specifications
Axial groove bearing 6316-2RS1.Gcr15 material
2.suitable for kinds of machinery
3.support high loads
4.ISO:9001:2000

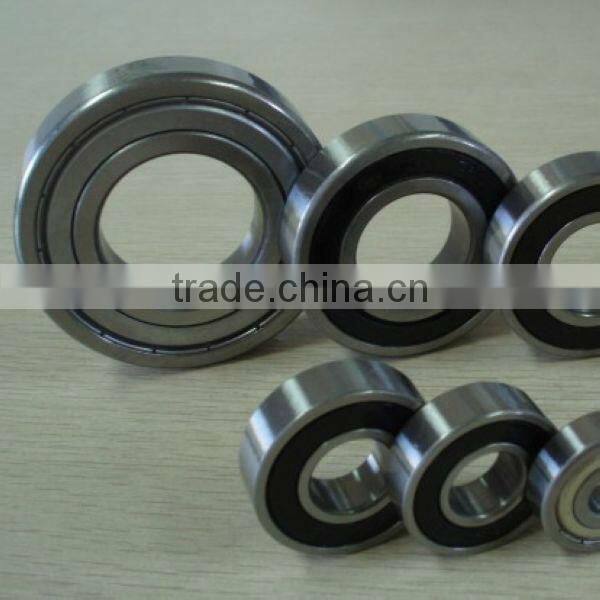

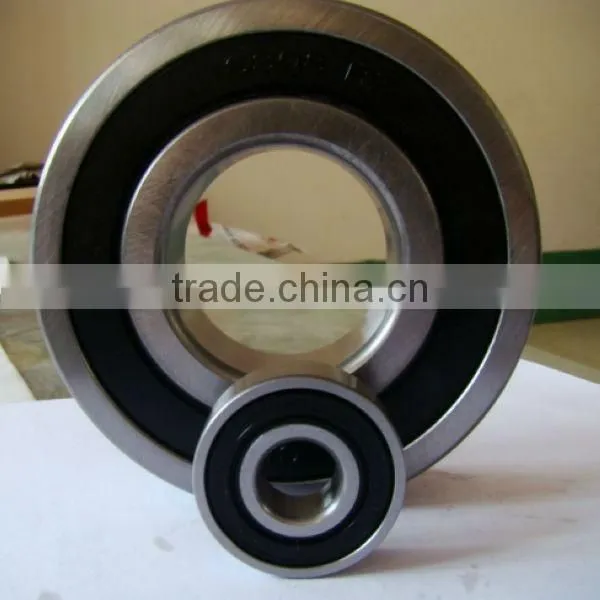

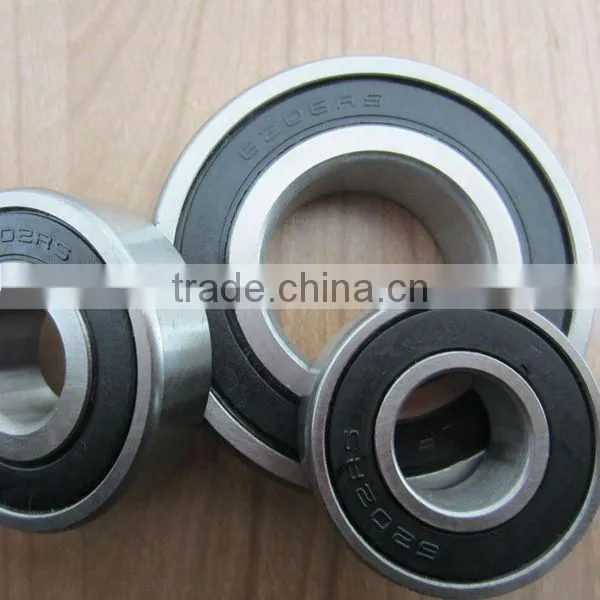

Axial groove bearing 6316-2RS
Specifications of axial groove bearing 6316-2RS
6316 2rs Bearings have rubber seals that contact both the inner and outer race of the bearing; this prevents moisture and dust from damaging the bearing.
6316 2rs Sealed Bearing is a popular size that could be used in many applications, 6316 2rs Bearings is made of Chrome Steel and the bearing is pre-lubricated with grease.
| ||||||||||||||||||
| Attributes | Values |
| Part Number | 6316 2rs Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 80mm |
| Outer Dia (D) | 170mm |
| Width (B) | 29mm |
| Material | 52100 Chrome steel, stainless steel and ceramic are available. |
| Dynamic Load Rating (Cr) (Newtons) | 123000 |
| Static Load Rating (Cor) (Newtons) | 86700 |
| Max Speed (Grease) (X1000 RPM) | 3 |
| Clearance | CO, C2 and C3 are available. |
| Weight (g) (grams) | 3670.00 |
| Note | ABEC Grades 1, 3, 5, 7, and 9 are available. |

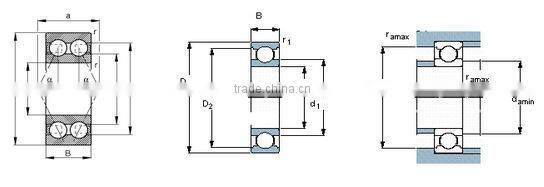

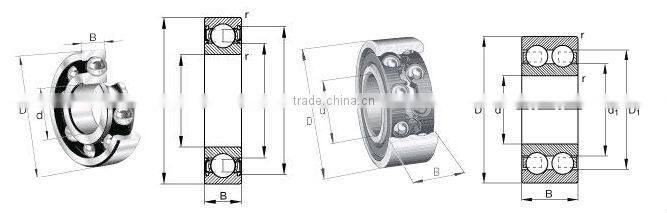

Drawings of axial groove bearing 6316-2RS
Descriptions of axial groove bearing
1. Deep groove ball bearing Widely used for food, beverage processing machinery, medical appliances and medicine equipment
Typical applications: Electric motors, automotive applications, home appliances and industrial equipment. It has high speed, high precision, noise and vibration, main radial load, can withstand the axial load
2. The deep groove ball bearing is the most representative bearing. It used widely, which can bear axial load and radialload. It is suitable for high-speed rotation and requiring low noise, low vibration occasions with steel dust cover or sealed type bearing rubber seal filling in advance the right amount of grease, the outer ring with a snap ring or concave edge of the bearing, which is easy axial location and install inside the enclosure. Maximum load bearing of size is the same as standard bearing, but inside and outside the circle of somewhere has a filling broad, and it has increase of the number of loading the ball to improve the rated load.
3. Materials:
Ring and cages: Chrome bearing steel
Balls: Chrome steel or carbon structural steel
Cover: Rubber or metal
Non-separable and require little attention or maintenance in service
Capable of operating at high speeds and are widely used radial bearings
Deep groove ball bearings are most commonly used rolling bearings
Can carry much heavy axial loads after increase of radial clearance
Can take the place of high speed angular contact ball bearings
Can used for carrying pure axial loads
Compared with other bearings with same dimensions
Lower friction and higher limited speed but lower impact
Widely used in automobiles, tractors, machine tools, motors, pumps, agricultural machinery, and textile machinery and other high speed facility
Applications of axial groove bearing
1) Agriculture;
2) Light textile;
3) Mining;
4) Food &beverage;
5) Pharmaceutical;
6) Chemical processing;
7) Printing;
8) Dyeing;
9) Airport;
10) Air-conditioning;
11) Various kinds of conveying and rolling devices.
Model numbers of axial groove bearing
| Pressent code | Original code | d | D | B |
Rated dynamic load Cor(KN) |
Rated dynamic load Cor(KN) |
Grease | Oil | Weight |
| 6002 | 102 | 15 | 32 | 9 | 5.6 | 2.85 | 23000 | 27000 | 0.03 |
| 6003 | 103 | 17 | 35 | 10 | 6 | 3.25 | 21000 | 25000 | 0.039 |
| 6004 | 104 | 20 | 42 | 12 | 9.4 | 5.05 | 17000 | 21000 | 0.069 |
| 6005 | 105 | 25 | 47 | 12 | 10.1 | 5.85 | 15000 | 18000 | 0.08 |
| 6006 | 106 | 30 | 55 | 13 | 13.2 | 8025 | 13000 | 15000 | 0.116 |
| 6007 | 107 | 35 | 62 | 14 | 15.9 | 10.3 | 11000 | 13000 | 0.155 |
| 6008 | 108 | 40 | 68 | 15 | 16.7 | 11.5 | 10000 | 121000 | 0.192 |
| 6009 | 109 | 45 | 75 | 16 | 21 | 15.1 | 9200 | 11000 | 0.245 |
| 6010 | 110 | 50 | 80 | 16 | 21.8 | 16.6 | 8400 | 9900 | 0.261 |
| 6011 | 111 | 55 | 90 | 18 | 28.3 | 21.2 | 7600 | 8900 | 0.385 |
| 6012 | 112 | 60 | 95 | 18 | 29.4 | 23.2 | 7100 | 8400 | 0.415 |
| 6013 | 113 | 65 | 100 | 18 | 30.5 | 25.2 | 6600 | 7800 | 0.435 |
| 6014 | 114 | 70 | 110 | 20 | 38.1 | 30.9 | 6100 | 7200 | 0.602 |
| 6015 | 115 | 75 | 115 | 20 | 39.5 | 33.5 | 5700 | 6800 | 0.638 |
|
Deep groove ball bearing (ZZ, 2RS, Z, RS, NR, C3) |
604 series | 605 606 607 608 609 |
| 623 series | 623 624 625 626 627 628 629 | |
| 634 series | 634 635 638 | |
|
61800 series |
61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61820 61821 61822 61824 61826 61828 61834 61838 61840 61852 61860 61864 61872 61876 61880 61888 61892 | |
|
61900 series |
61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918 61919 61920 61921 61922 61924 61926 61928 61934 61936 61938 61940 61944 61948 61952 61960 61964 61968 61980 61984 61988 61992 | |
|
16001 series |
16002 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020 16021 16022 16024 16026 16028 16030 16032 16034 16038 16040 16052 | |
|
6000 series |
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092 | |
|
6200 series |
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 6244 6248 6252 | |
|
6300 series |
6300 6301 6302 6303 6304 6305 66306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322 6324 6326 6328 63306332 6334 | |
|
6403 series |
6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422 6426 |
