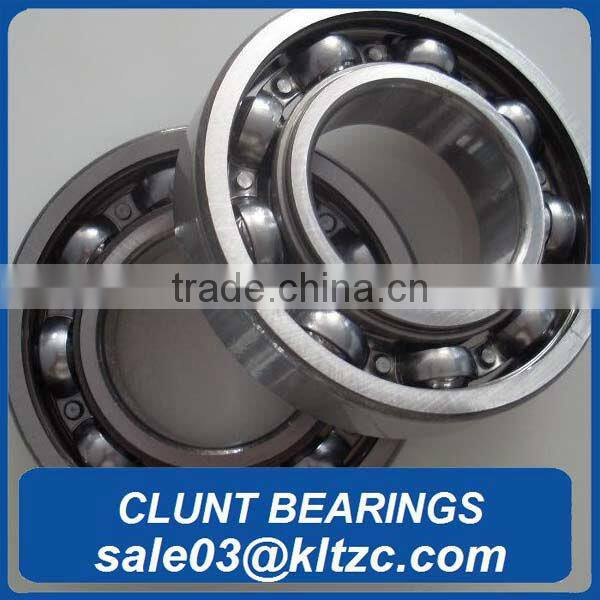

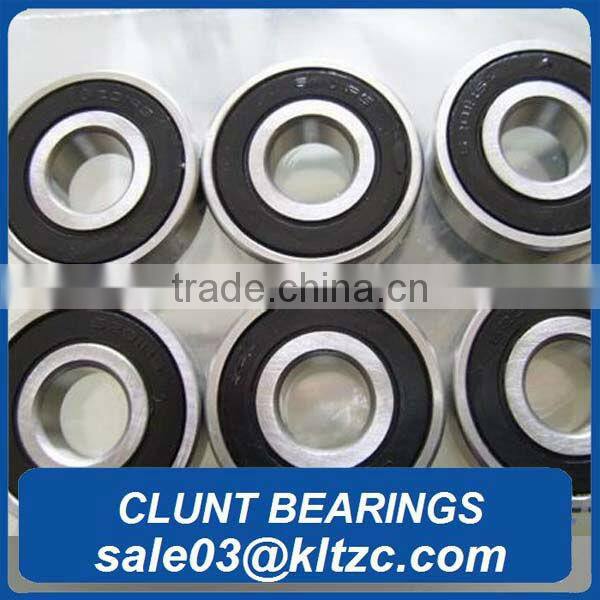

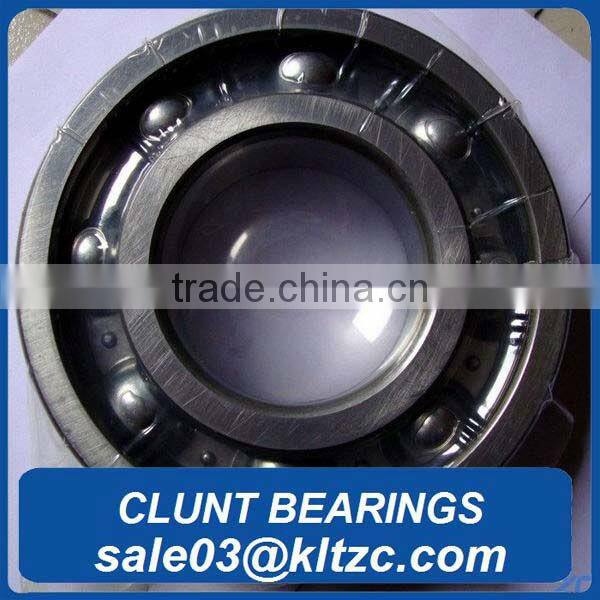

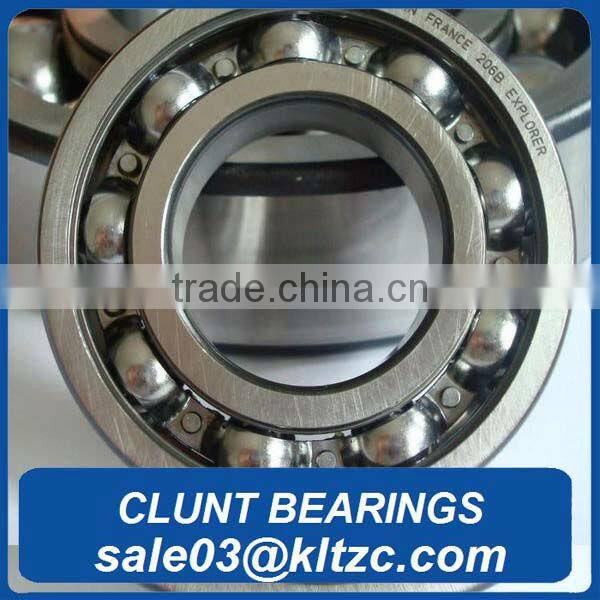

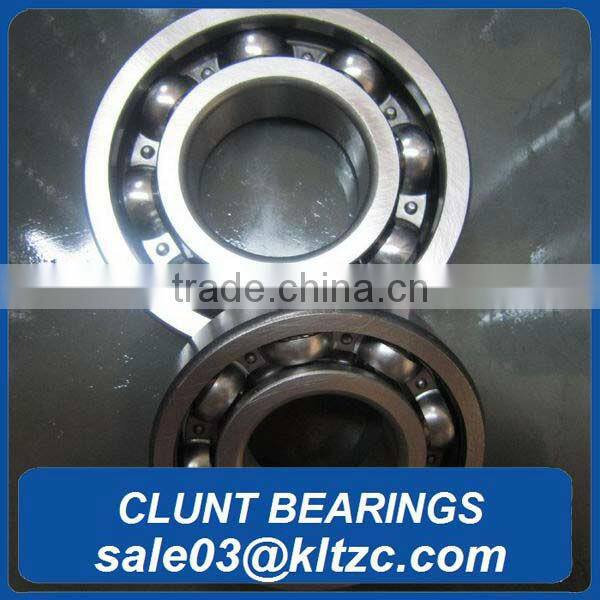

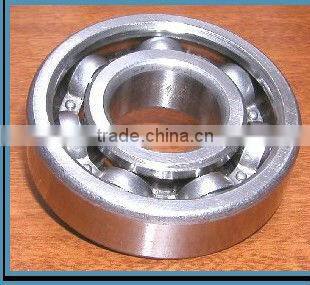

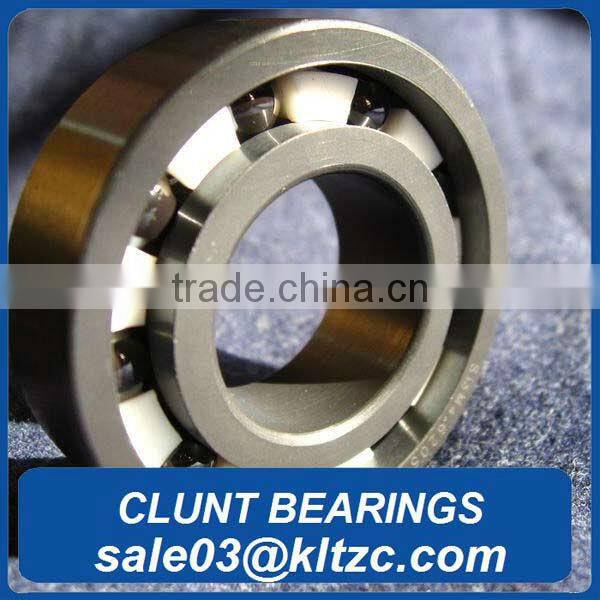

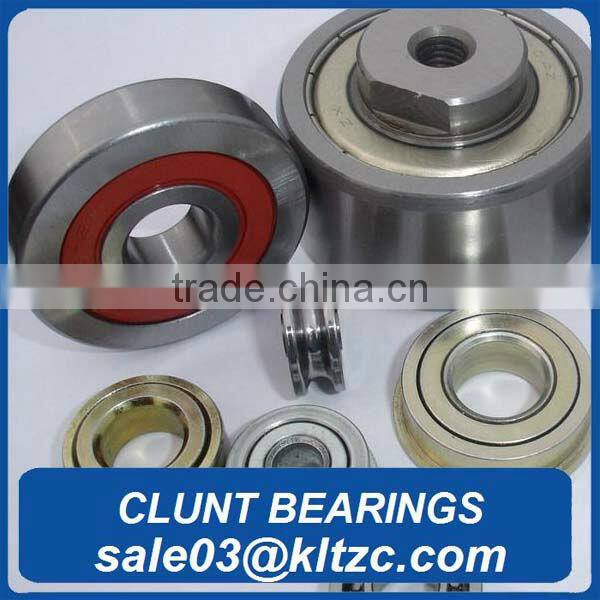

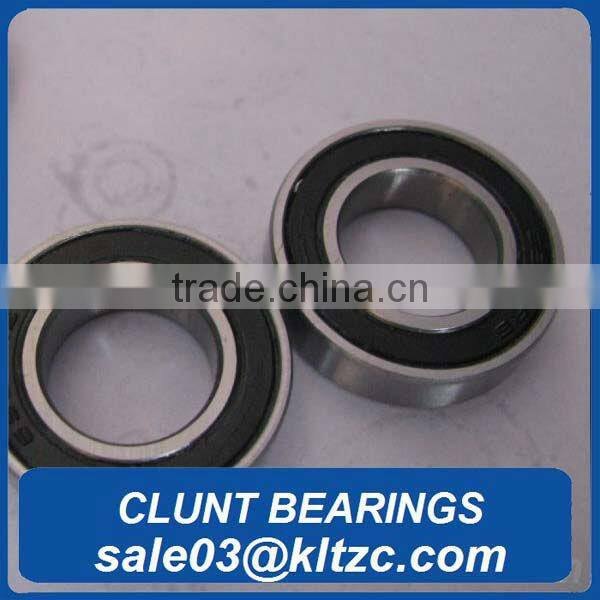

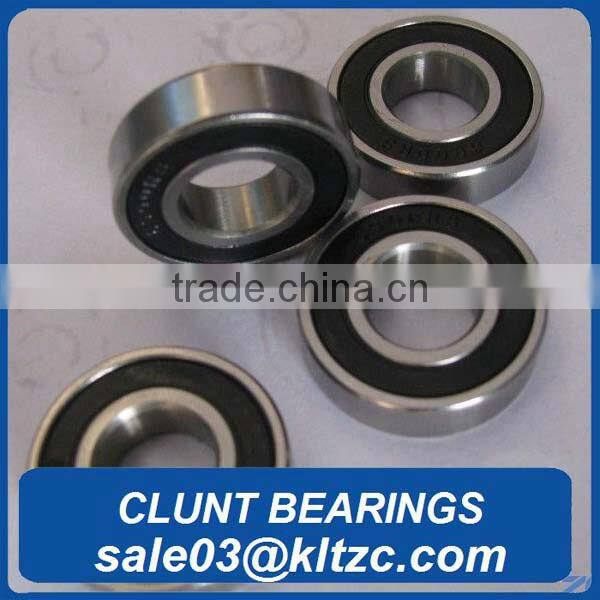

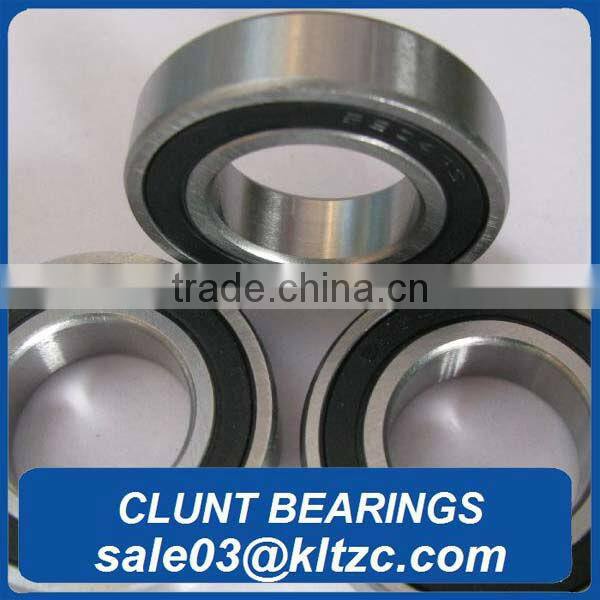

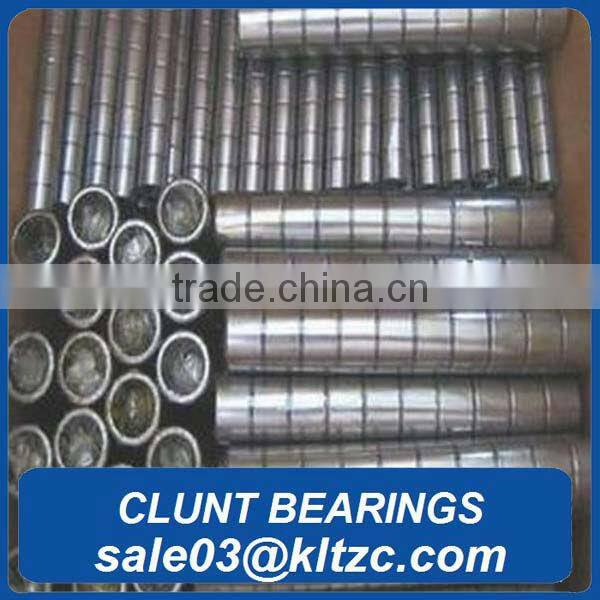

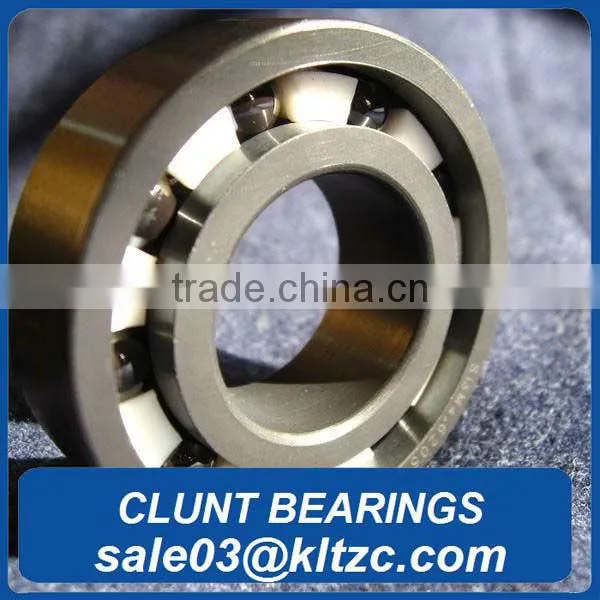

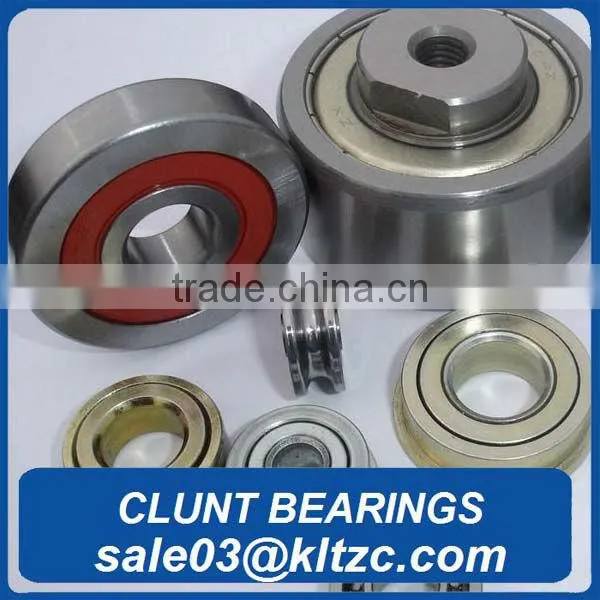

Toy wheel ball bearing 6318

Specifications

Toy wheel ball bearing 6318
1.Gcr15 material
2.support high loads
3.used in machinery
4.ISO:9001:2000

Toy wheel ball bearing 6318



Specifications of toy wheel ball bearing 6318

Bearing name	6318 bearing 6318 size
Brand	CLUNT
Outer diameter D (mm)	190 mm
Diameter d (mm)	90 mm
Thickness B (mm)	43 mm
Brand model	6318
Category	deep groove ball bearing
Remark	6318  bearing  price



6318 Open Ball Bearing 90mm x 190mm x 43mm Quality: ABEC 1

6318 Open Ball Bearing, material is Chrome Steel,6318 has ABEC 1 quality, 6318 bearing is Oil preserved, inner diameter is 90mm, outer diameter is 190mm and width is 43mm. Item: 6318 Ball Bearing Type: Deep groove Radial Ball Bearing Quality: ABEC 1 Material: Chrome Steel Cage: Chrome Steel Closures: Open Lubrication: Oil Size: 90mm x 190mm x 43mm Dimensions: 90mm x 190mm x 43mm/Metric ID (inner diameter)/Bore: 90mm OD (outer diameter): 190mm Width/Height/thickness: 43mm Quantity: One Bearing Dynamic load rating Cr: 143,000 N Static load rating Cor: 107,000 N Limiting Speed: Grease Lubrication: 3,600 RPM Oil Lubrication: 4,300 RPM

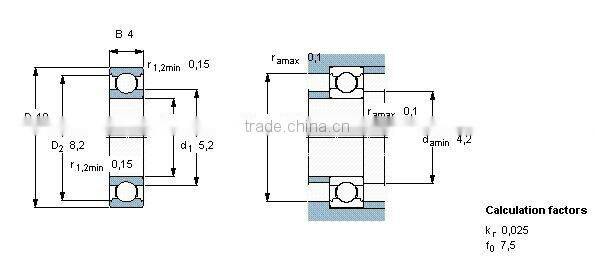

 Toy wheel ball bearing 6318 drawings

Toy wheel ball bearing 6318 descriptions

Deep groove ball bearings are designed as non-separable bearings with the characteristics of simply designed structures; Low friction coefficient and high limit rotational speed. They can mainly carry radial load and certain axial load. When the radial internal clearance increases, the bearings have the funtions of angular contact ball bearings that a larger axial load can also be carried.

Structures of toy wheel ball bearing 6318

Deep groove ball bearigns are comprose various structures, bebsides open bearings; We can also see single shielded/sealed bearings, double shielded/sealed bearings. All bearings are prefilled with lubricating grease; The users can direct start it without cleaning and lubricating it first. In addition, deep groove ball bearings with snap ring groove on outer rings are strongly recommonded to you, as this kind of bearing can use snap rings to easily fix the bearings in the bearing box. So when the mounting position is restrained, take deep groove ball bearings with snap ring groove on outer rings as priority. Mostly, deep groove ball bearigns use ribbon cage made of pressed steel sheet, or solid cage. See Table 1 for the permissible tilting angle between the rinner ring and outer ring of this kind of bearings.





Model numbers of toy wheel ball bearing



MODEL	SIZE(mm)			NTN KOYO NACHI	F.A.G	S.K.F	N.S.K
	d	D	B
633	3	13	5	633
634	4	16	5	634	634	634	634
635	5	19	6	635	635	635	635
63/22	22	56	16	63/22			63/22
63/28	28	68	18	63/28			63/28
63/32	32	75	20	63/32			63/32
6318	90	190	43	6318	6318	6318	6318
6319	95	200	45	6319	6319	6319	6319
6320	100	215	47	6320	6320	6320	6320
6321	105	225	49	6321	6321	6321	6321
6322	110	240	50	6322	6322	6322	6322
6324	120	260	55	6324	6324	6324	6324
6326	130	280	58	6326	6326	6326	6326
6328	140	300	62	6328	6328	6328	6328
6330	150	320	65	6330	6330	6330	6330
6332	160	340	68	6332	6332	6332	6332
6334	170	360	72	6334	6334	6334	6334
6336	180	380	75	6336	6336	6336	6336
6338	190	400	78	6338	6338	6338	6338
6340	200	420	80	6340	6340	6340	6340
6344	220	460	88	6344	6344	6344	6344
