QT6-15 hydraulic colored paving block making machine
1.Multifunction in one machine.changing molds can produce various kinds of specification porous bricks, standard bricks,hollow bricks,with a double material-feeding machien can produce all kinds of the colored road bricks,grassland bricks, and slope protection bricks ets.
2.It adopts the PLC operating system, and the action procedures lock with each other ,which can gruarantees the machine safely and dependablely in the operation procedure.
3.The unique forcing material-feeding system and a specialized iron bar adjust to changing of different mould cases can have a second material-feeding effect perfectly.
QT6-15 hydraulic colored paving block making machine theretical productivity
Item |
Specification Size(mm) |
Qty/Molding |
Cycle Molding |
Per hour |
| Hollow brick | 400*200*200 | 6 pcs | 16~20s | 1080pcs/14.7m3 |
| Porous block | 240*115*90 | 14pcs | 15~18s | 2800pcs/7m3 |
| Standard brick | 240*115*53 | 30pcs | 14~17s | 6800pcs/10m3 |
QT6-15 hydraulic colored paving block making machine main technical parameter
1.overall dimension:7350*1780*2950mm
2.rated pressure:16MPa
3.main vibration form : platform vibration
4.vibration frequency:4600(r/min)
5.pallet size:880*700mm
6.molding cycle:15~20s
7.overall power:30.5kw
Raw material for making bloks

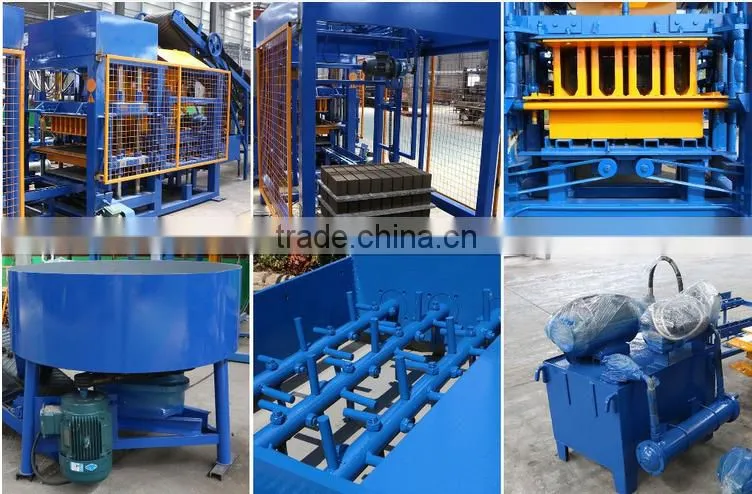

Machine details

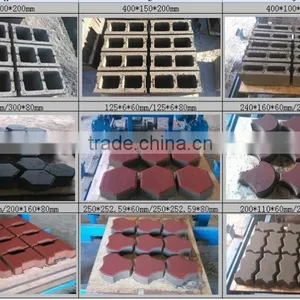

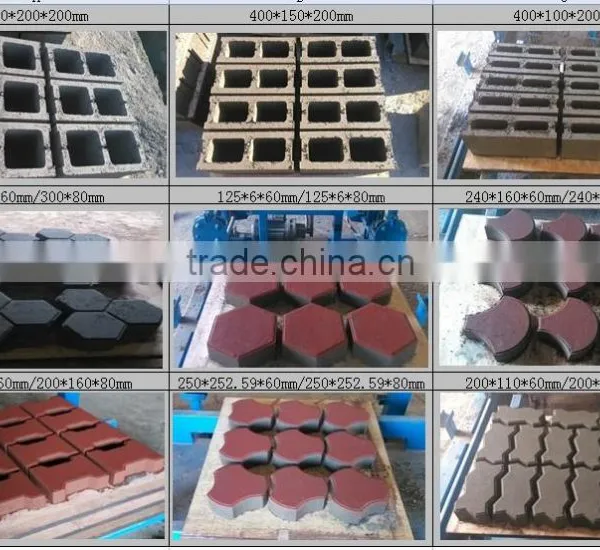

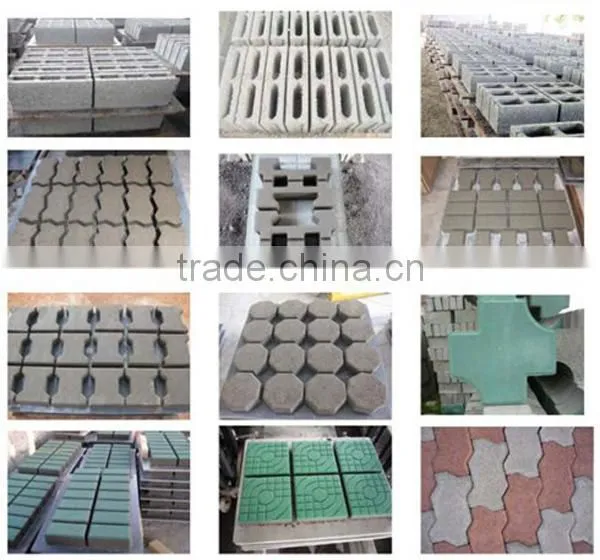

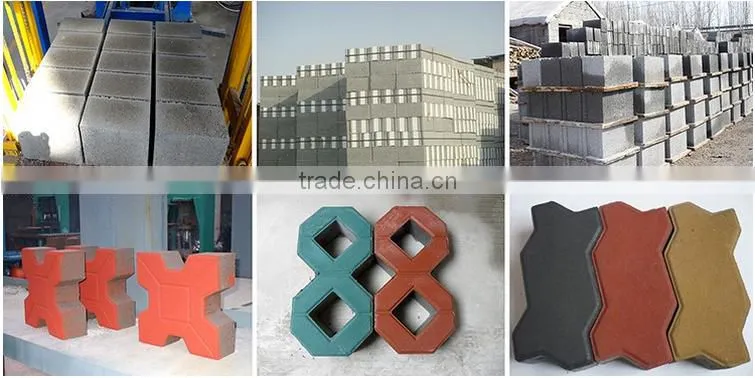

QT6-15 hydraulic colored paivng block making machine Production Samples
