Specifications
Concrete curbstone making machine by hydraulic prssure 1,ISO9001-2008 CE SGS 2,strong quality 3,Germany technology 4,good priceConcrete curbstone making machine by hydraulic prssure

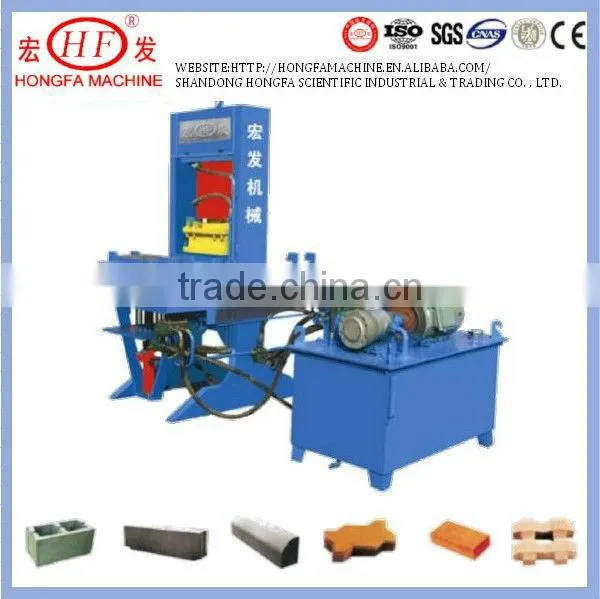

Type1:HF-150:
Concrete curbstone making machine by hydraulic prssure
Characteristics :of HF-150Concrete curbstone making machine by hydraulic prssure
Hydraulic machinery refers to machines that use high pressure fluid to accomplish work. They are most common in heavy equipment for industrial use. More specifically hydraulic fluid is pumped to a high pressure level and then moved throughout the machines by different actuators. The hydraulic pump itself is powered by a regular engine or electric motor.
The pressurized fluid is distributed through various hoses and tubes. To really get a grasp on the power of hydraulic machinery, you'll want to read about the theory behind it.
Hydraulic machinery is very popular because of the enormous amount of power that can be transferred through small tubes and flexible hoses, and the wide variety of equipment that makes use of this technology.
|
Main Technical Specifications : of HF-150Concrete curbstone making machine by hydraulic prssure | |
Max Pressure |
150T |
Motor Power |
7.7KW |
Throughput |
2000-4000pcs/mold |
Max Processing Size |
500*500*100mm |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
The piston work area |
490cm2 |
The piston stroke |
185mm |
nominal working pressure |
1250 kN |
peak working pressure |
1500 kN |
valve lift |
220,230 |
lubricating press electric motor |
Big:YCY14-1B, pressure:31.5mpa,flow rate:25ml/r Small: Y1100L1-4, pressure:20mpa, flow rate:16ml/r |
solenoid pilot actuated valve |
34BYm-B10H-T 220V |
|
spare parts O-rings
|
24*3.5 20 unit 28*3.5 5 unit 30*3.5 5 unit 16*2.4 5 unit 10*2.4 5 unit |
Electromagnetic valve coi l |
24v |

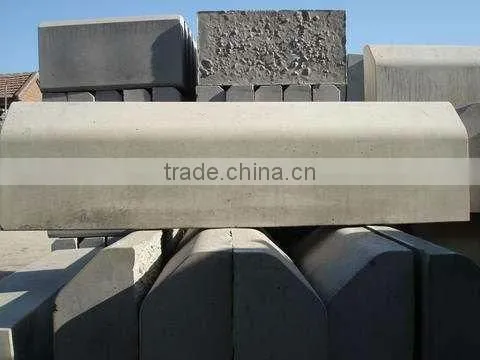

Main production of HF-150Concrete curbstone making machine by hydraulic prssure

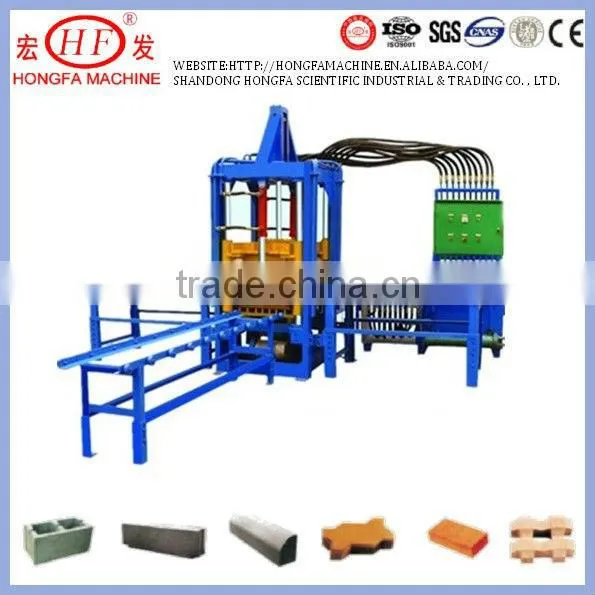

Type 2: QT3-20
Concrete curbstone making machine by hydraulic prssure
Characteristics :of QT3-20 Concrete curbstone making machine by hydraulic prssure
QTF3-20 block machine is applied to urban-rural concrete block enterprises manufacturing wall blocks ,roadway blocks ,and shadow wall blocks.
It adopts hydraulic drive compression molding .and the high-speed and strong vibration ensure the qualified product molding layered material -distributing manufactures paving bricks of various color ,it is especially applied to manufacturing high-mixture fly ash solid brick and cork bricks ,etc.
|
Main Technical Specifications of QT3-20 Concrete curbstone making machine by hydraulic prssure | |
Main vibration form |
Platform vibration and pressure |
Cycle Time |
20 seconds |
Vibrating Frequency |
4600 rolls/minute |
Motors Power |
14.25KW |
Pallet Size |
680*530mm |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 70 countries . Thanks for your attention to us .
Thanks for your time !
It is our pleasure to be of service to you my friend . Your enquiry is great help for us !
Sale manager : Amy Liu MB:0086 13969983506 Skype: donghaowen66
