Various Ore Processing Equipments Flotation Machine--Best Supplier--Yufeng Brand

Various Ore Processing Equipments Flotation Machine--Best Supplier--Yufeng Brand thumbnail-1
Various Ore Processing Equipments Flotation Machine--Best Supplier--Yufeng Brand photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, flotation machine/ floatation machine / flotation cell / separator
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Yufeng Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, flotation machine/ floatation machine / flotation cell / separator
Place of Origin Henan, China
Brand Name Yufeng
Model Number XJk



Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln , Lime and Cement production equipment and other equipments.



We welcome all friends from home and abroad to visit our company to check the high quality products.



Our service center sincerely hopes that we can have a successful cooperation

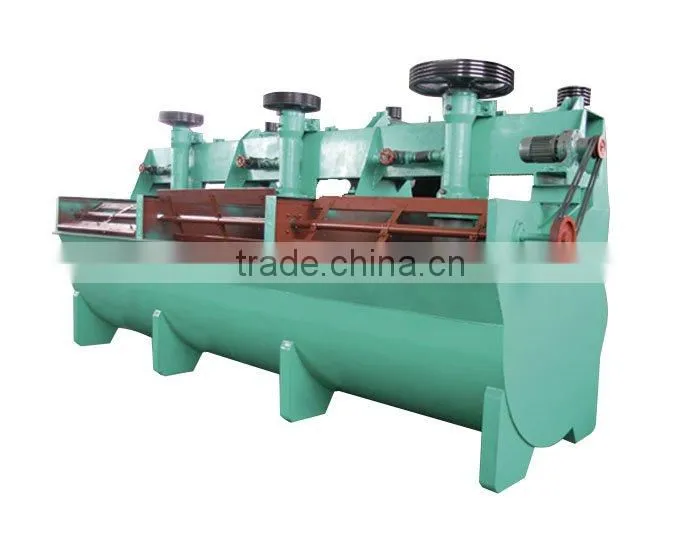

Description of Flotation Machine


various ore processing equipments flotation machine--Best supplier--Yufeng brand
Our Flotation Machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties, which can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine.

The working principle of flotation machine

When flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re_mis with air. The remained slurry flows to the next trough until becomes residue.

Specifications of SJK  Flotation Machine

Type
Cubage
(m3)
Diameter
of impellor
(mm)
Capacity
(m3/min)
Speed
of impellor
(r/min)
Scraper speed
(r/min)
Motor
type
Power
(kw)
Overall dimensions
(mm) (four slot in one body)
Weight
(t/single
trough)
XJK-0.13
0.13
200
0.05-0.16
600
17.5
Y90L-4
1.5
2100x865x900
0.35
XJK-0.23
0.23
250
0.12-0.28
500
17.5
Y90L-4
1.5
2625x1130x1290
0.41
XJK-0.35
0.35
300
0.18-0.4
470
17.5
Y100L1-4
2.2
3012x1350x1320
0.45
XJK-0.62
0.62
350
0.3-0.9
400
16
Y100L2-4
3
3800x1500x1550
0.85
XJK-1.1
1.1
500
0.6-1.6
330
26
Y132M-6
5.5
4680x1820x1950
1.4
XJK-2.8
2.8
600
1.5-3.5
280
26
Y160L-6
11
7750x2600x2700
2.43





Flotation machine

Compared with common flotation machine, SF Mining Flotation Equipment has the following advantages:
1. Increase concentrate grade of by 4-6%.
2. Increase cycling rate by 8%.
3. Increase production by 12%.

Technical Parameters of Flotation machine

Model

SF0.37

SF0.7

SF1.2

SF2.8

SF4

SF8

Tank capacity(m3)

0.37

0.7

1.2

2.8

4

8

Diameter of impeller (mm)

300

350

450

550

650

760

Production capability (m3/min)

0.2-0.4

0.3-0.9

0.6-1.2

1.5-3.5

0.5-4

4-8

Rotate speed of impeller (r/min)

352

400

312

268

238

191

Electric motor

Model

Y90L-4

Y100L2-4

Y132M2-6

Y160L-6

Y180L-6

Y250M-8

Y90S-4

Y90S-4

Y90S-4

Y90S-4

Y90L-4

Y100L-6

Power(kw)

1.5

3

5.5

11

15

30

1.1

1.1

11

1.1

1.5

1.5

Size (mm)

700x700x750

900x820x950

1100x1100x1100

1700x1600x1150

1850x2050x1200

2200x2900x1400

Weight of single tank (kg)

468

600

1373

2338

2660

4130



various ore processing equipments flotation machine--Best supplier--Yufeng brand

....
