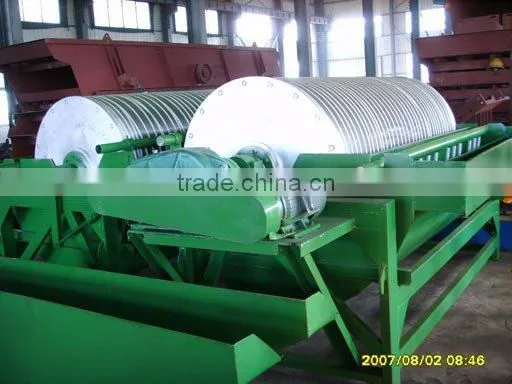

Help CenterHematite Iron Ore Magnetic Separator
Related Products
-
Copper Ore Magnetic SeparatorUS$ 9,000 - 150,000MOQ: 1 Set -
Nickel Ore Magnetic SeparatorUS$ 8,000 - 130,000MOQ: 1 Set
-
Copper Ore Wet Magnetic SeparatorUS$ 1,000 - 500,000MOQ: 1 Set
-
Copper Ore/iron Ore Magnetic SeparatorUS$ 9,000 - 150,000MOQ: 1 Set
-
Yufeng Brand Magnetic Separator MachineUS$ 1,000 - 50,000MOQ: 1 Set
Introduction:
magnetic separator is usually used for separating fine-grained iron magnetite from non-magnetic materials. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a high magnetic field intensity, this machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacity. magnetic ore separator is widely applied in the separation of various kinds of iron ores and gold ore. In order to increase the grade or capacity, several sets of wet drum magnetic separators can be installed in series connection or parallel connection.
Features of the magnetic separator:
1. simple structure
2. Easy-open structure gives a convenient cleaning;
3. large handling
4. Max. magnetic intensity: 8,000 OE;
5. easy to operate
6. The number of axial magnetic can be adjusted in accordance with material characteristics;
7. easy to maintain
8. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
9. Low power
10. Also has disaggregating function for sticky and poor-fluidity powders;
11. Stainless steel machine and full-closed operation enable an easy clean;
12. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
13. Magnetic separator working under high temperature
Working principle:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Model |
Shell diameter(mm) |
Shell length(mm) |
Shell rotation speed(r/min) |
Feeding size(mm) |
Processing capacity(t/h) |
Power(kw) |
CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
1200 |
3000 |
<18 |
3-0 |
100-180 |
7.5 |
....
